YC Series 220V 0.75KW Capacitor Start Induction Motor IP54 General Driving

  • YC Series 220V 0.75KW Capacitor Start Induction Motor IP54 General Driving
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC90S-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 0.75KW/1HP Pole 4
Protection Class IP54 Insulation Class B
Highlight

0.75KW Capacitor Start Induction Motor

,

Capacitor Start Induction Motor IP54

,

YC Series Asynchronous Induction Motor
Leave a Message
Product Description

Capacitor Start Induction Electric Single Phase Induction Motor YC Series 220V 0.75KW

Single Phase Induction Motor

Application:



YC series electric motor is used to drive small machines, especially for households and workshops that only need a single-phase power supply.



Operating Conditions:

1, Ambient temperature: -15℃≤θ≤40℃

2, Altitude:≤1000m

3, Rated voltage:380V, other voltage on request

4, Rated frequency:50HZ, other frequency on request

5, Duty/Rating: Continuous(S1)

6, Insulation class: Class B/F

7, Production Class: IP44/IP54/IP55

7, Cooling method: IC141





Technical Data:



Model Output HP KW Voltage
(V)		 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0

1.8



Advantages:

1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output.
3. Nice painting after installing a motor
4. Reasonable price with high quality and kind service.
5. Used for machinery without special requirements.
6. Longer working life, easy construction, convenient installation, and repairmen





Performance Chart:



Model    Output     HP    KW Voltage
(V)		 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 3000r/min (2 Poles)
YC80A-2 0.5 0.37 220 3.5 2880 62 73.8 2.8 6.2 1.8
YC80B-2 0.75 0.55 220 5.3 2880 65 76.5 2.8 6.5 1.8
YC80C-2 1 0.75 220 6.7 2880 68 77.5 2.8 6.5 1.8
YC90S-2 1.5 1.1 220 9.1 2880 71 79.7 2.4 7.0 1.8
YC100L-2 2 1.5 220 11.4 2900 72 81.3 2.4 7.0 1.8
Y-112M-2 3 2.2 220 16.5 2900 74 84.8 2.1 7.0 1.8
YC112M1-2 4 3 220 21.4 2900 76 84.9 2.2 7.0 1.8
YC112M2-2 5 3.7 220 24.8 2900 79 85.5 2.2 7.0 1.8
220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0 1.8
YC80B-4 0.5 0.37 220 4.5 1450 60 0.62 2.8 6.0 1.8
YC80C-4 0.75 0.55 220 6 1450 64 0.65 2.8 6.0 1.8
YC90S-4 1 0.75 220 7.7 1450 67 0.66 2.4 6.5 1.8
YC90L-4 1.5 1.1 220 10.4 1450 70 0.68 2.4 6.5 2.8
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8
YC112M1-4 3 2.2 220 18.5 1450 72 0.72 2.4 6.5 1.8
YC132SA-4 4 3 220 22.4 1450 74 0.73 2.1 6.5 1.8
YC132SB-4 5 3.7 220 26 1450 75 0.74 2.1 6.5 1.8
YC132M-4 7.5 5 220 30.5 1450 81 0.95 2.1 6.5 1.8







electric motor data

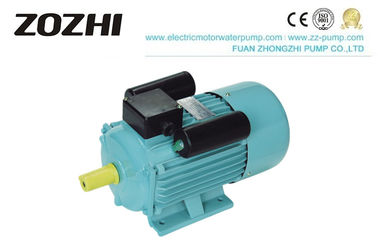

Picture:



YC motor



Single Phase Induction Motor Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
