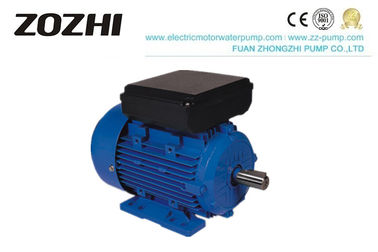

MC90L-2 IP54 1.5HP AC Electrical Motor IEC Single Phase Capacitor Start Motor

  • MC90L-2 IP54 1.5HP AC Electrical Motor IEC Single Phase Capacitor Start Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MC90L-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 1.1KW/1.5HP Pole 2
Protection Class IP54 Insulation Class H
High Light

MC90L-2 AC Electrical Motor

,

IP54 1.5HP AC Electrical Motor

,

IEC Single Phase Capacitor Start Motor
Leave a Message
Product Description

MC90L-2 1.1KW 1.5HP AC Electrical Motor, Single Phase Capacitor Start Motor

 Single Phase Induction Motor
MC Series Single-Phase Induction Motor Description

MC Series aluminum housing single-phase capacitor-start asynchronous motors are the latest design and are made of selected quality materials and conform to the international IEC standard.



MC motors have a very safe and reliable performance, are attractive in appearance, and can be easily maintained.



They have low noise with little vibration but at the same time are lightweight and of simple construction.

With their high starting torque, MC motors have excellent starting performance. The starting torque can multiples up to 2.5 times.



MC series motors are suitable for high starting torque situations with small starting current, such as air-compressors, pumps, refrigerators, medical apparatus, and other machines needing full-load start.

SINGLE PHASE INDUCTION MOTOR

ML Series Single-Phase Induction Motor Data


Model Output
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP
MC711-2 0.18 0.25 220 1.89 2800 60 0.72 3.0 1.8 12
MC712-2 0.25 0.34 220 2.40 2800 64 0.74 3.0 1.8 15
MC801-2 0.37 0.5 220 3.36 2800 65 0.77 2.8 1.8 21
MC802-2 0.55 0.75 220 4.65 2800 68 0.79 2.8 1.8 29
MC90S-2 0.75 1 220 6.09 2800 70 0.80 2.5 1.8 37
MC90L-2 1.1 1.5 220 8.68 2800 72 0.80 2.5 1.8 60
MC100L1-2 1.5 2 220 11.38 2900 74 0.81 2.5 1.8 80
MC100L2-2 2.2 3 220 16.48 2900 75 0.81 2.2 1.8 120
MC112M-2 3 4 220 21.88 2900 76 0.82 2.2 1.8 150
MC711-4 0.12 0.16 220 1.88 1400 50 0.58 3.0 1.8 9
MC712-4 0.18 0.25 220 2.49 1400 53 0.62 2.8 1.8 12
MC801-4 0.25 0.34 220 3.11 1400 58 0.63 2.8 1.8 15
MC802-4 0.37 0.5 220 4.24 1400 62 0.64 2.5 1.8 21
MC90S-4 0.55 0.75 220 5.49 1400 66 0.69 2.5 1.8 29
MC90L-4 0.75 1 220 6.87 1400 68 0.73 2.5 1.8 37
MC100L1-4 1.1 1.5 220 9.52 1450 71 0.74 2.5 1.8 60
MC100L2-4 1.5 2 220 12.45 1450 73 0.75 2.5 1.8 80
MC112M-4 2.2 3 220 17.78 1450 74 0.76 2.2 1.8 120

SINGLE-PHASE INDUCTION MOTOR


Single Phase Induction Motor GUARANTEE:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
