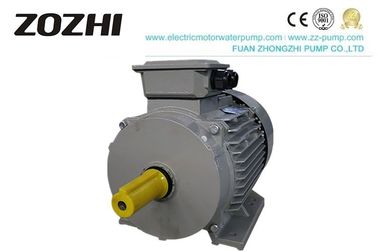

5.5KW 11.8HP Single Phase Induction Motor Y2-132S-4 Cast Iron
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput Rating | 5.5KW/11.8HP | Number Of Poles | 4 |
---|---|---|---|
Enclosure | IC411 | Type | Asynchronous Motor |
Insulation Class | B / F / H | Product Name | Single Phase Induction Motor |
High Light | 5.5KW Single Phase Induction Motor,11.8HP Single Phase Induction Motor,Cast Iron Single Phase Asynchronous Motor |
Asynchronous Single Phase Induction Motor Y2-132S-4 5.5KW 11.8HP Cast Iron Housing
Single Phase Induction Motor
PRODUCT DESCRIPTIONS
Voltage: 220V, 380V, 415V
Frequency: 50/60HZ
Enclosure protection: IP44, IP54, IP55
Cooling method: IC01, IC611, IC81W
Installation method: IMB3/ IMV1
Ambient Temperature: -15℃-40℃
Motor rating: SI continuous operation system
You can use it for driving all kinds of general machines such as the compressor, Ventilation fan, water pump, stock-removing machine, transportation machines, and other mechanical equipment. They are applied as the prime mover in all industrial and mining enterprises.
The products have been produced in a large quantity and exported to more than 20 countries, and they have got
the good appraisal from the users.
THREE-PHASE INDUCTION MOTOR FEATURES
1. Consistent performance
2. Low maintenance
3. Suitable for mounting in any position
4. Easy to operate
OPERATING LIMITS
1. Priming voltage: 380V or any voltage between 220-760V
2. Sea level: not exceed 1000m. If over, the power will be down
3. Environment temperature: -15℃ ≦ 0 ≦ 40℃
4. Protection: IP44 / IP54 / IP55
5. Insulation Class: B / F / H
Details
| THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability, and safe operation of the motor |
BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect | |
| HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise |
PERFORMANCE CHART
Ist/In | Power | (A) | Power | Eff. (%) | Speed | Tstart/Tn | Ist/In | Tmax/Tn |
(kw) | Factor | (r/min) | ||||||
Synchronous Speed 1500 r/min (4 Poles) | ||||||||
Y2-631-4 | 0.12 | 0.44 | 0.72 | 57 | 1400 | 2.2 | 4.5 | 2.2 |
Y2-632-4 | 0.18 | 0.62 | 0.73 | 60 | 1400 | 2.2 | 4.5 | 2.2 |
Y2-711-4 | 0.25 | 0.79 | 0.74 | 65 | 1400 | 2.2 | 5.5 | 2.2 |
Y2-712-4 | 0.37 | 1.12 | 0.75 | 67 | 1400 | 2.2 | 5.5 | 2.2 |
Y2-801-4 | 0.55 | 1.6 | 0.75 | 71 | 1400 | 2.2 | 5.5 | 2.2 |
Y2-802-4 | 0.75 | 2 | 0.77 | 73 | 1400 | 2.2 | 6 | 2.2 |
Y2-90S-4 | 1.1 | 2.9 | 0.77 | 750 | 1400 | 2.2 | 6 | 2.2 |
Y2-90L-4 | 1.5 | 3.7 | 0.79 | 78 | 1400 | 2.2 | 6 | 2.2 |
Y2-100L1-4 | 2.2 | 5.1 | 0.81 | 80 | 1420 | 2.2 | 7 | 2.2 |
Y2-100L2-4 | 3 | 6.8 | 0.82 | 82 | 1420 | 2.2 | 7 | 2.2 |
Y2-112M-4 | 4 | 8.8 | 0.82 | 84 | 1440 | 2.2 | 7 | 2.2 |
Y2-132S-4 | 5.5 | 11.8 | 0.83 | 85 | 1440 | 2.2 | 7 | 2.2 |
Y2-132M-4 | 7.5 | 15.5 | 0.84 | 87 | 1440 | 2 | 7 | 2.2 |
Y2-160M-4 | 11 | 22.3 | 0.85 | 88 | 1460 | 2 | 7 | 2.2 |
Y2-160L-4 | 15 | 30 | 0.85 | 89 | 1460 | 2 | 7 | 2.2 |
Y2-180M-4 | 18.5 | 36.4 | 0.85 | 90.5 | 1470 | 2.2 | 7.5 | 2.2 |
Y2-180L-4 | 22 | 43.1 | 0.85 | 91 | 1470 | 2.2 | 7.5 | 2.2 |
Y2-200L-4 | 30 | 58.4 | 0.86 | 92 | 1470 | 2.2 | 7.5 | 2.2 |
Y2-225S-4 | 37 | 69.9 | 0.87 | 92.5 | 1480 | 2.2 | 7.5 | 2.2 |
Y2-225M-4 | 45 | 84.7 | 0.87 | 92.8 | 1480 | 2.2 | 7.5 | 2.2 |
Y2-250M-4 | 55 | 103 | 0.89 | 93 | 1480 | 2.2 | 7 | 2.2 |
Y2-280S-4 | 75 | 140 | 0.86 | 93.8 | 1480 | 2.2 | 7 | 2.2 |
Y2-280M-4 | 90 | 167 | 0.86 | 94.2 | 1490 | 2.2 | 7 | 2.2 |
Y2-315S-4 | 110 | 201 | 0.87 | 94.5 | 1490 | 2.1 | 6.9 | 2.2 |
Y2-315M-4 | 132 | 240 | 0.87 | 94.8 | 1490 | 2.1 | 6.9 | 2.2 |
Y2-315L1-4 | 160 | 287 | 0.88 | 94.9 | 1490 | 2.1 | 6.9 | 2.2 |
Y2-315L2-4 | 200 | 359 | 0.88 | 95 | 1490 | 2.3 | 6.9 | 2.2 |
Y2-355M-4 | 250 | 443 | 0.88 | 95.3 | 1485 | 2.3 | 6.8 | 2.2 |
Y2-355L-4 | 315 | 556 | 0.89 | 95.6 | 1485 | 2.2 | 6.9 | 2.2 |
GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale.
2. Quick response to 2-8hours, response rates over 92%.
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
