YL90L-2 3HP 2.2kw Single Phase Asynchronous Motor General Driving Application

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YL90L-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 2.2KW Pole 2
Protection Class IP44 Frequency 50Hz
Insulation Class B Capacitors Start&Run Capacitors
High Light

single phase capacitor start motor

,

single phase asynchronous motor

Leave a Message
Product Description

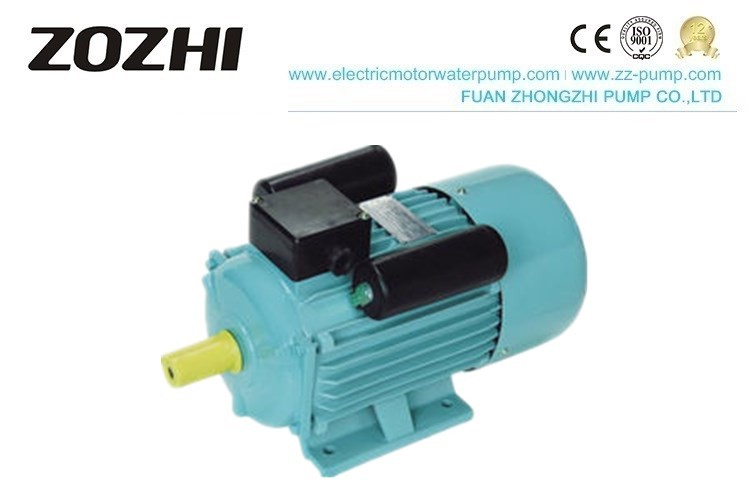

YL90L-2 3HP 2.2kw electric Motor,induction motor,single-phase asynchronous motor

Single Phase Induction Motor



Induction Motor



YL Series single-phase induction motor Description.



YL series single-phase two-value capacitor motor is enclosed and fan-cooled, squirrel cage, asynchronous motor. Newly designed in conformity with the relevant requirements of IEC standards, which has outstanding goodness, such as high efficiency, energy-saving, high starting torque, low noise, slight vibration, reliable operation, and easy maintenance, etc. with features like simple structure, reliable performance, easy maintenance, and achievement of technical-economic targets, widely used in many places except where has combustible, explosive or corrosive gas and special requirements, such as for machine tools, pumps, fans transportation machinery, mixer, agricultural machinery, and food machines, etc.


YL motors series have protection class of F or B, cooling method of IC411.



Protection type: IP44 or IP55

Rated voltage: 220V or 110V

Rated frequency: 50 Hz or 60 Hz





YL Series single-phase induction motor Application.



YL series heavy-duty single-phase capacitor start induction motor has the advantages of ample starting torque, stable operation, low -temperature rise, low noise, strong overload capability. Suitable for driving small workshops, small machinery, medical equipment, household appliances, fans, machinery, instruments, chemical instruments, textiles, agricultural machinery, etc.



Induction Motor



electricmotor

Single phase motor



YL Series single-phase induction motor Data

Model Power (V)   Speed Eff. P.F. Start/Tn Ist/In Tmax/Tn N.W.(kg)
HP KW (A) (r.p.m) (%)
YL711-2 1/2 0.37 220 2.73 2880 67 0.92 1.8 16 1.8 8
YL712-2 3/4 0.55 220 3.88 2880 70 0.92 1.8 21 1.8 9
YL801-2 1 0.75 220 5.15 2800 72 0.92 1.8 29 1.8 11
YL802-2 1.5 1.1 220 7.02 2800 75 0.95 1.8 40 1.8 12
YL90S-2 2 1.5 220 9.44 2820 76 0.95 1.7 55 1.8 13
YL90L-2 3 2.2 220 13.7 2820 77 0.95 1.7 80 1.8 17
YL711-4 1/3 0.25 220 1.99 1400 62 0.92 1.8 12 1.8 8
YL712-4 1/2 0.37 220 2.81 1400 65 0.92 1.8 16 1.8 9
YL801-4 3/4 0.55 220 4 1400 68 0.92 1.8 21 1.8 11
YL802-4 1 0.75 220 5.22 1400 71 0.92 1.8 29 1.8 12
YL90S-4 1.5 1.1 220 7.21 1420 73 0.95 1.7 40 1.8 13
YL90L-4 2 1.5 220 9.57 1420 75 0.95 1.7 55 1.8 17
YL100L1-4 3 2.2 220 13.9 1420 76 0.95 1.7 80 1.8 26
YL100L2-4 4 3 220 18.6 1420 77 0.95 1.7 110 1.8 28
YL112M-4 3 2.2 220 13.9 1440 76 0.95 1.7 80 1.8 31
YL112M1-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 34
YL112M2-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 38
YL132SA-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 55
YL132SB-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 60





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
