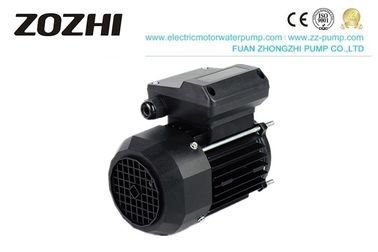

MY 2800rpm IP54 0.75kw Single Phase Induction Motor 1HP H Insulation

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY801-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 0.75KW Pole 4
Protection Class IP54 Frequency 50Hz
Insulation Class H
High Light

MY 2800rpm Single Phase Induction Motor

,

IP54 0.75kw Single Phase Induction Motor

,

H Insulation Asynchronous Induction Motor

Leave a Message
Product Description

MY Series Single Phase Induction Motor 1HP 0.75kw 2800rpm H Insulation Class

Single Phase Induction Motor

MY Series Single-Phase Induction Motor Description



MY Series electric motor with the latest design in its entirety is made of quality materials and meets the relative rules of IEC standards. As a result, MY motors have good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration, lightweight and simple construction. This series of motors can be used on water pumps, household appliances, fans, recording meters, etc.



Specification

Ambient temperature: -15°C≤θ≤40°C
Above sea level: not exceed 1000m
Rated voltage: ±5%
Protection class:IP44/IP54/IP55
Insulation class: B/F

Cooling method: ICO141
Duty:continuous(S)



MY 2800rpm IP54 0.75kw Single Phase Induction Motor 1HP H Insulation 0



MY Series Single-Phase Induction Motor Application



MY series motor has good starting and running performance, simple structure, easy operation, and maintenance. Suitable for machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, and other general working environments and machinery without special requirements



electric motor

MY 2800rpm IP54 0.75kw Single Phase Induction Motor 1HP H Insulation 2

MY Series Single-Phase Induction Motor Data

Model Output     Speed Eff. P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP (V) (A) (r/min) (%)
MY631-2 0.18 0.25 220 1.48 2800 60 0.92 0.4 1.7 5
MY632-2 0.25 0.34 220 1.96 2800 63 0.92 0.4 1.7 7
MY711-2 0.37 0.5 220 2.73 2800 67 0.92 0.35 1.7 10
MY712-2 0.55 0.75 220 3.88 2800 70 0.92 0.35 1.7 15
MY801-2 0.75 1 220 5.15 2800 72 0.92 0.33 1.7 20
MY802-2 1.1 1.5 220 7.02 2800 75 0.95 0.33 1.7 30
MY90S-2 1.5 2 220 9.44 2800 76 0.95 0.3 1.7 45
MY90L-2 2.2 3 220 13.67 2800 77 0.95 0.3 1.7 65
MY631-4 0.12 0.16 220 1.1 1400 55 0.9 0.4 1.7 3.5
MY632-4 0.18 0.25 220 1.62 1400 56 0.9 0.4 1.7 5
MY711-4 0.25 0.34 220 2.02 1400 61 0.92 0.35 1.7 7
MY712-4 0.37 0.5 220 2.95 1400 62 0.92 0.35 1.7 10
MY801-4 0.55 0.75 220 4.25 1400 64 0.92 0.35 1.7 15
MY802-4 0.75 1 220 5.45 1400 68 0.92 0.32 1.7 20
MY90S-4 1.1 1.5 220 7.45 1400 71 0.95 0.32 1.7 30
MY90L-4 1.5 2 220 9.83 1400 73 0.95 0.3 1.7 45







Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
