220V 110V Single Phase AC Induction Motor 750W 1HP For Metal Cutting Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Single Phase Induction Motor | Application | General Driving |
---|---|---|---|
Output | 4HP /3KW | Pole | 2 |
Protection Class | IP54 | Frequency | 50Hz |
Insulation | Class B | Type | Asynchronous Motor |
High Light | Metal Cutting Machine AC Induction Motor,110V Single Phase AC Induction Motor,750W 1HP AC Asynchronous Motor |

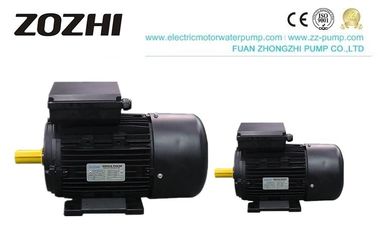

220V/110V Single Phase AC Induction Motor 750W 1HP For Metal Cutting Machine
Single Phase Induction Motor
ML series single phase
Single Phase Motor is the Motor that has a capacitor for start and runs.
Totally enclosed and fan cool design structure well protect the motor and person.
ML AC Motor is designed for newly world technical and manufactured following the international standard.
It has the advantage of low noise, compact construction, lightweight, easy maintenance, etc.
It's popular to sell all over the world. For it's widely used in the area of air compressor, pump, fans, refrigerator, medical instruments, small-size machine, etc.
Operating Conditions:
Ambient temperature:-15°c to 40 °c
Altitude:≤1000m
Rated voltage:220V, 230V, 240V, 110V, 115V, 120V, etc
Rated frequency:50HZ, 60HZ, 50HZ/60HZ
Duty:Continuous(S1)
Insulation class: Class B, Class F
Protection class: IP44, IP54, IP55
Cooling method: IC0141
Feature
ML series 3hp electric motor may be used extensively in general conditions without inflammable,
explosive or corrosive gases and on mechanical equipment with a special requirement, such as:
1. Metal cutting machine
2. Pumps
3. Blower fan
4. Transport machinery
5. Agitator
6. Agricultural machinery
7. Machinery for a food industry
Performance chart:
Model | Power | Current | Power Factor | Eff | Speed | Starting current |
Starting torque Rated torque |
Max torque Rated torque |
|
KW | HP | A | cos | % | r/min | ||||
220V-50Hz-2P | |||||||||
ML7112 | 0.37 | 0.5 | 2.73 | 0.92 | 67 | 2800 | 16 | 2.3 | 1.8 |
ML7122 | 0.55 | 0.75 | 3.88 | 0.92 | 70 | 2800 | 21 | 2.5 | 1.8 |
ML8012 | 0.75 | 1 | 5.15 | 0.92 | 72 | 2800 | 30 | 2.5 | 1.8 |
ML8022 | 1.1 | 1.5 | 7.02 | 0.95 | 75 | 2800 | 40 | 2.5 | 1.8 |
ML90S-2 | 1.5 | 2 | 9.44 | 0.95 | 76 | 2800 | 55 | 2.5 | 1.8 |
ML90L-2 | 2.2 | 3 | 13.67 | 0.95 | 77 | 2800 | 80 | 2.5 | 1.8 |
ML100L-2 | 3 | 4 | 18.2 | 0.95 | 79 | 2800 | 110 | 2.5 | 1.8 |
220V-50Hz-4P | |||||||||
ML7114 | 0.25 | 0.3 | 1.99 | 0.92 | 62 | 1400 | 12 | 2.5 | 1.8 |
ML7124 | 0.37 | 0.5 | 2.81 | 0.92 | 65 | 1400 | 16 | 2.5 | 1.8 |
ML8014 | 0.55 | 0.75 | 4 | 0.92 | 68 | 1400 | 21 | 2.5 | 1.8 |
ML8024 | 0.75 | 1 | 5.22 | 0.95 | 71 | 1400 | 30 | 2.5 | 1.8 |
ML90S-4 | 1.1 | 1.5 | 7.2 | 0.95 | 73 | 1400 | 40 | 2.5 | 1.8 |
ML90L-4 | 1.5 | 2 | 9.57 | 0.95 | 75 | 1400 | 55 | 2.5 | 1.8 |
ML100L1-4 | 2.2 | 3 | 13.9 | 0.95 | 76 | 1400 | 80 | 2.5 | 1.8 |
ML100L2-4 | 3 | 4 | 18.6 | 0.95 | 77 | 1400 | 110 | 2.5 | 1.8 |
ML112M-4 | 3.7 | 5 | 20.6 | 0.97 | 79 | 1400 | 120 | 2.5 | 1.8 |
Installation size and overall dimension
Frame No. | Installation Size | Installation Size For B14 | Installation Size For B5 | Overall Dimension | ||||||||||||||||||||
A | B | C | D | E | F | G | H | K | M | N | P | S | T | M | N | P | S | T | AB | AC | AD | HD | L | |
71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | M6 | 2.5 | 130 | 110 | 160 | 10 | 3.5 | 145 | 145 | 125 | 210 | 255 |
80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | M6 | 3 | 165 | 130 | 200 | 12 | 3.5 | 160 | 165 | 135 | 240 | 295 |
90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | M8 | 3 | 165 | 130 | 200 | 12 | 3.5 | 180 | 185 | 145 | 270 | 335 |
90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | M8 | 3 | 165 | 130 | 200 | 12 | 3.5 | 180 | 185 | 145 | 270 | 360 |
100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | - | - | - | - | - | 215 | 180 | 250 | 15 | 4 | 205 | 215 | 170 | 280 | 380 |
112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | - | - | - | - | - | 215 | 180 | 250 | 15 | 4 | 245 | 240 | 180 | 310 | 400 |
132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | - | - | - | - | - | 265 | 230 | 300 | 15 | 4 | 280 | 275 | 195 | 325 | 475 |
132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | - | - | - | - | - | 265 | 230 | 300 | 15 | 4 | 280 | 275 | 195 | 325 | 515 |
Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
