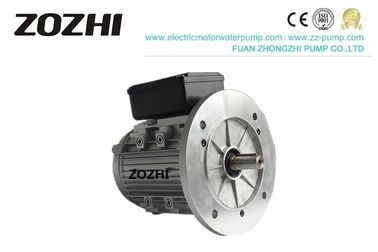

2800r/ Min 0.75KW IP54 Single Phase Induction Motor MY802-4 AC Electric Motor

  • 2800r/ Min 0.75KW IP54 Single Phase Induction Motor MY802-4 AC Electric Motor
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MY802-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 0.75KW Pole 4
Protection Class IP54 Frequency 50Hz
Insulation Class H
High Light

0.75KW IP54 Single Phase Induction Motor

,

2800r/ Min Single Phase Induction Motor

,

MY802-4 AC Electric Motor
Leave a Message
Product Description

High-Speed Single Phase Induction Motor, AC Electric Motor MY802-4 0.75KW

Single Phase Induction Motor

MY Series Single-Phase Induction Motor Description

1) High-speed ratio and efficiency
Single-stage transmission can reach 1:87 of speed-down ratio, and the efficiency is more than 90%. If using a multi-speed drive, the speed-down ratio is bigger.
2) Compact
Being adapted epicyclic transmission principle, the input and output shaft are at the same axis center. It is compact.
3) Smooth and stable run and low noise
The cycloidal pinwheel has more meshed teeth, the overlapping coefficient is big, and the machine part is stable. Moreover, the vibration and noise are limited at the minimum content.
4) Reliable in operation and long life
Because the main parts are made of bearing steel through quenching treatment(HRC58-62), it got high strength. Meanwhile, the transmission contact of the part adapts rolling friction, so it is a durable and long life.
Customers trust it because of its reasonable design, maintenance, ease of disassembling and assembling, minimum number of parts, and simple lubrication.



MY Series Single-Phase Induction Motor Application

MY series motor has good starting and running performance, simple structure, easy operation, and maintenance. Suitable for machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, and other general working environments and machinery without special requirements

electric motor

2800r/ Min 0.75KW IP54 Single Phase Induction Motor MY802-4 AC Electric Motor 1

MY Series Single-Phase Induction Motor Data

Model Output     Speed Eff. P.F. Tstart/Tn Tmax/Tn Ist/In(A)
KW HP (V) (A) (r/min) (%)
MY631-2 0.18 0.25 220 1.48 2800 60 0.92 0.4 1.7 5
MY632-2 0.25 0.34 220 1.96 2800 63 0.92 0.4 1.7 7
MY711-2 0.37 0.5 220 2.73 2800 67 0.92 0.35 1.7 10
MY712-2 0.55 0.75 220 3.88 2800 70 0.92 0.35 1.7 15
MY801-2 0.75 1 220 5.15 2800 72 0.92 0.33 1.7 20
MY802-2 1.1 1.5 220 7.02 2800 75 0.95 0.33 1.7 30
MY90S-2 1.5 2 220 9.44 2800 76 0.95 0.3 1.7 45
MY90L-2 2.2 3 220 13.67 2800 77 0.95 0.3 1.7 65
MY631-4 0.12 0.16 220 1.1 1400 55 0.9 0.4 1.7 3.5
MY632-4 0.18 0.25 220 1.62 1400 56 0.9 0.4 1.7 5
MY711-4 0.25 0.34 220 2.02 1400 61 0.92 0.35 1.7 7
MY712-4 0.37 0.5 220 2.95 1400 62 0.92 0.35 1.7 10
MY801-4 0.55 0.75 220 4.25 1400 64 0.92 0.35 1.7 15
MY802-4 0.75 1 220 5.45 1400 68 0.92 0.32 1.7 20
MY90S-4 1.1 1.5 220 7.45 1400 71 0.95 0.32 1.7 30
MY90L-4 1.5 2 220 9.83 1400 73 0.95 0.3 1.7 45



MY Series Single-Phase Induction Motor Condition

Ambient temperature: -15℃≤~≤40℃

Altitude: altitude does not exceed 1000m sea level

Rated voltage: ±5%

Insulation class: B

Protection class: IP55

Cooling method: IC411



Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
