MSP674 Magnetic Speed Pick Up Unit Sensor Diesel Generator Engine 5/8-18 UNF-2A Threaded

China MSP674 Magnetic Speed Pick Up Unit Sensor Diesel Generator Engine  5/8-18 UNF-2A Threaded supplier
MSP674 Magnetic Speed Pick Up Unit Sensor Diesel Generator Engine  5/8-18 UNF-2A Threaded supplier MSP674 Magnetic Speed Pick Up Unit Sensor Diesel Generator Engine  5/8-18 UNF-2A Threaded supplier

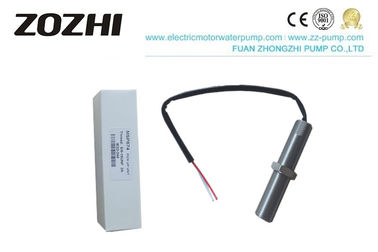

Large Image :  MSP674 Magnetic Speed Pick Up Unit Sensor Diesel Generator Engine 5/8-18 UNF-2A Threaded

Product Details:

Place of Origin: FUAN
Brand Name: ZOZHI
Certification: CE, ISO9001
Model Number: MSP674

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: carton box
Contact Now
Detailed Product Description
Model Number:: MSP674 Length: 100mm
Temperature Range: -55 To 105℃ Output:: Max. 30VAC
Product Name: Magnetic Speed Pick Up Unit Sensor Surface Treatment: Etc

MSP674Magnetic Speed Pick Up Unit SensorDiesel GeneratorEngine Pick Up 5/8-18 UNF-2A Threaded



The Magnetic Pickup MSP674 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the Magnetic Speed Sensor MSP674, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles are currently available.





5/8-18 UNF Threaded
Product # Thread Length Harness Length Connector With Mating Connector
MSP674Speed Sensor 3in [76.2mm] High Output 913Ω Military No
MSP675 3.19in [81mm] 7in [178mm] Flying Leads No
MSP676 5in [127mm] 1ft [0.3m] Flying Leads No
MSP677 3in [76mm] NA Military No
MSP678 4.86in [123.4mm] NA Military No
MSP679 3in [76.2mm] NA Military Yes
MSP6710 4.86in [123.4mm] NA Military Yes
MSP6719 2.37in [60.2mm] 1ft [0.3m] Harness Flying Leads No
MSP6720 3.86in [98.1mm] 1ft [0.3m] Harness Flying Leads No
MSP6721 3.19in [81mm] 2.75in [70mm] Automotive No
MSP6721C 3.19in [81mm] 2.75in [70mm] Automotive Yes
MSP6722 2.37in [60.2mm] 6in [152mm] Push-On Terminals No
MSP6728 3.19in [81mm] 6.25in [159mm] Packard No
MSP6728C 3.19in [81mm] 6.25in [159mm] Packard Yes
MSP6732 3.16in [80.3mm] 3.25in [82.6mm] Dual Packard No
MSP6732C 3.16in [80.3mm] 3.25in [82.6mm] Dual Packard Yes



MSP674
