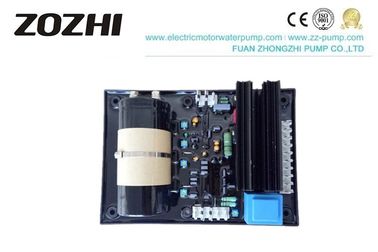

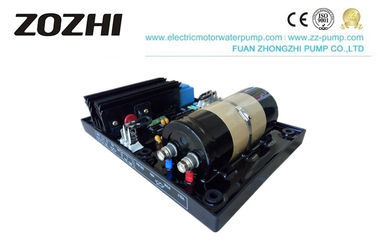

Three Phase Automatic Voltage Stabilizer AVR R448 For Brushless Diesel Generator

Diesel Generator Automatic Voltage Stabilizer AVR R448 Easy Spare Parts For Brushless Generator

Description

The circuitry of the R448 Automatic Voltage Regulator (AVR) provides closed-loop control of the alternator output voltage by regulating the exciter field current. The primary winding has a voltage in ratio to that of the alternator (characteristic shunt), the next has a voltage in proportion to the stator current (compound characteristic: booster effect). Which is powered by two auxiliary windings which are independent of the voltage equal circuit The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor. With PMG excitation, a permanent magnet generator (PMG) added to the alternator supplies the AVR with a voltage that is free of the main alternator winding. This is built-in at the rear of the machine and connected to the R448 AVR, and the ST9 jumper must be disconnected.

* Quadrature droop adjustment

* AVR Voltage adjustment

* Stability adjustment

* LAM Threshold  adjustment

* Excitation ceiling adjustment

* Selection of single-phase or three-phase*

* voltage sensing

* Selection of normal or rapid response time

* 50 Hz or 60 Hz frequency option

* Remote voltage adjustment option

* LAM enable/disable option

* Alternator frame selection

* Excitation system selection

Specification

Input voltage: 70-140V AC, (PMG, or auxiliary
winding, single, three phases)
The reaction is measured: 90-480V AC
MAX. output :DC 10A 125V
Function: Built-in low-speed, over-excitation
LAM, REGULATION: +/-0.5%

More Products

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of the brand.

FAQ:

1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
