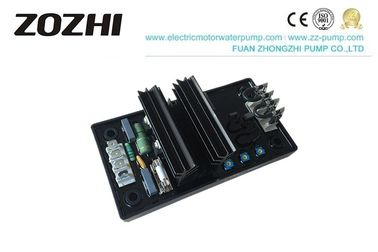

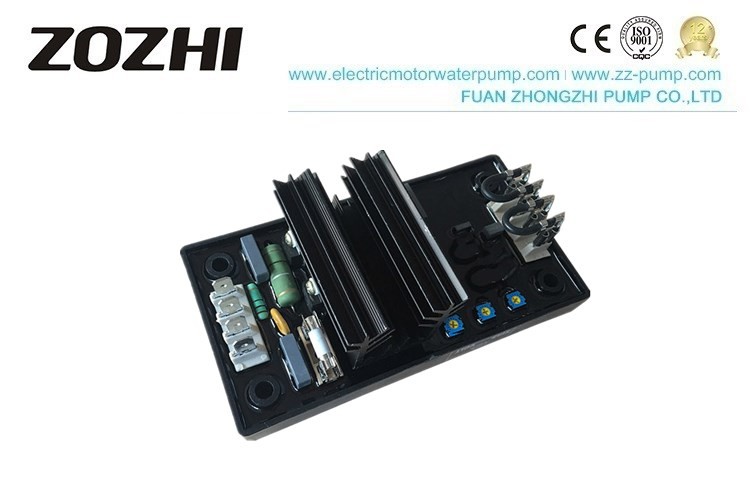

Electronic Easy Spare Parts , 150kva Brushless Alternator AVR R230 Genset

Electronic Easy Spare Parts , 150kva Brushless Alternator AVR R230 Genset
Electronic Easy Spare Parts , 150kva Brushless Alternator AVR R230 Genset Electronic Easy Spare Parts , 150kva Brushless Alternator AVR R230 Genset

Large Image :  Electronic Easy Spare Parts , 150kva Brushless Alternator AVR R230 Genset

Product Details:
Place of Origin: FUAN
Brand Name: ZOZHI
Certification: CE, ISO9001
Model Number: R230
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: carton box
Detailed Product Description
Model Number:: R230 Purpose:: Brushless Generator
Phase:: Three Phase Usage:: Generator
Keyword: Auto Spare Part Advantage: Easy Assembly
High Light:

alternator generator parts

,

water pump parts

R230 Genset Electronic 150kva AVR Automatic Voltage Regulator Brushless Alternator AVR



Generator Voltage Regulator R230 for Leroy Somer Generator AVR R230 Automatic Voltage Regulator Sensing Input 120V or 240V 30kw R230 regulator is a compatible replacement for Leroy Somer Series R230



* The alternator with shunt excitation is self-excited with an R230 voltage regulator.

* The regulator monitors the exciter excitation current as a function of the alternator output voltage.

* Very simple in design, the alternator with shunt excitation has no sustaining short-circuit capacity.

* Voltage Regulation:around +/-0.5%

* Voltage supply/sensing range 85 ~139 V (50-60Hz)

* Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20%

* Voltage setting P1
* Stability setting P2.

* Initial potentiometer settings :

1) P1 potentiometer (AVR voltage adjustment): fully anti-clockwise.

2) Remote voltage adjustment potentiometer: center position.
Run the alternator at its rated speed. If the voltage does not increase, the magnetic circuit should be remagnetized (see section 2.3).

3) Turn the AVR voltage adjustment potentiometer P1 slowly until the output voltage rated value is obtained.

4) Adjust the stability setting using P2.

5) Sealed potentiometer P3 is factory set at 48 Hz for 50 Hz and 58 Hz for 60 Hz



Sensing Input Voltage 85 to 139 V
Frequency 50/60 Hz
Output Voltage Max 75 V dc at 100V ac input
Current Continuous 4A dc; Intermittent 8A
Resistance 15 ohms minimum
Regulation +/-0.5%



R230 Genset Electric Automatic Voltage Regulator
