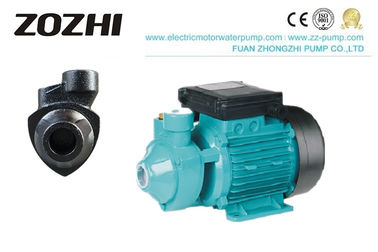

0.75KW/1HP Peripheral Water Pump DB-750A Electrophoretic Coating Vortex Type

0.75KW/1HP Peripheral Water Pump DB-750A Electrophoretic Coating Vortex Type
0.75KW/1HP Peripheral Water Pump DB-750A Electrophoretic Coating Vortex Type

Large Image :  0.75KW/1HP Peripheral Water Pump DB-750A Electrophoretic Coating Vortex Type

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: DB-125,DB-370,DB-550,DB-750
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Detailed Product Description
Product Name: Peripheral Water Pump Application: Boosting
Power: 1HP Flow Max: 50L/Min
Head Max: 55M Suction Max: 9M
Warranty: 12 Months Speed: 2850RPM
High Light:

peripheral impeller pump

,

domestic water pump

0.75KW/1HP Peripheral Water Pump DB-750A Electrophoretic Coating Vortex Type

Peripheral Water Pump

Peripheral Water Pump Description



The DB series vortex water pump with Electrophoretic coating can offer high pressure with comparatively low powers and have particularly steady operating curves. They are qualified in domestic fittings to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurities.



Compared with spray paint, it has the following advantages.
1. Can obtain uniform film thickness
2. Good permeability, improve the corrosion resistance of the inner cavity of the workpiece
3. High safety, low pollution coating (paint), no fire danger
4. The appearance of the electrophoretic coating film is good, and it has good flatness when dried.





Peripheral Water Pump Application



These clean water pumps with peripheral impellers can provide relatively low power high pressures and have a particularly stable operating curve. Suitable for home, garden, hotel, and recirculating water pressure, municipal water supply and drainage, air conditioning water circulation, agricultural engineerings, such as irrigation, drainage and flooding, industrial water supply systems, fire protection systems, heating system water supply, and drainage, clean water transportation, etc.



peripheral water pump



Peripheral Water Pump Data ( 220V/50HZ )

Type

Power

KW HP

Q.Max (L/min) H.Max (m)

Speed

(r.p.m)

Suction. Max (m) Inlet/Outlet
DB-125 0.25 0.16 32 32 2850 9 1"X1"
DB-330 0.37 0.50 35 35 1"X1"
DB-550 0.55 0.75 45 50 1"X1"
DB-750 0.75 1.00 50 55 1"X1"

 Vortex Pump

Peripheral Water Pump Construction

Pump
Pump Body: Cast iron
Impeller: Brass
Mechanical Seal: Carbon
Frant Cover: Cast iron



Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
Construction and safety standards in compliance with IEC

220V/50HZ.60HZ 110V/50HZ.60HZ 220v.110v/50hz.60hz are available on request.



Peripheral Water Pump Use Precautions:



Before preparing to install the pump, first check whether the firmware of each part is loose or not. There is no foreign matter jam in the pump flow path to avoid the situation that it cannot be cleaned after the later installation. Next, check the water source and water level before use. The pump should be installed in a covered area or a closed environment for the pump to work properly. Avoid using pumped water or non-corrosive liquids, and no sand or other solid impurities.



STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Vortex Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF, or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC



0.75KW/1HP Peripheral Water Pump DB-750A Electrophoretic Coating Vortex Type 2



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH 0.75KW/1HP Peripheral Water Pump DB-750A Electrophoretic Coating Vortex Type 8
water pump water pump mechnical seal


Peripheral Water Pump GUARANTEE


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
