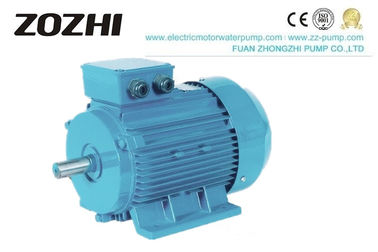

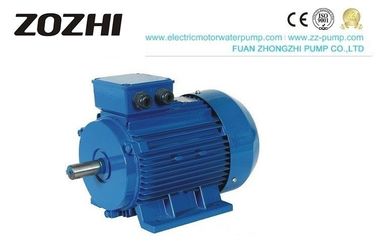

IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4

  • IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4
  • IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2-100L1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Rating 2.2KW/5.1HP Number Of Poles 4
Enclosure IC411 Type Asynchronous Motor
Insulation Class B / F / H Product Name Single Phase Induction Motor
Application General Driving
Highlight

5.1HP IEC Asynchronous Induction Motor

,

IC411 Enclosure Asynchronous Induction Motor

,

2.2KW Squirrel Cage Asynchronous Motor
Leave a Message
Product Description

IEC Standard Single Phase Induction Motor Y2-100L1-4 2.2KW/5.1HP Cast Iron Housing

Single Phase Induction Motor



PRODUCT DESCRIPTIONS



The Y2 series of heavy-duty single-phase motors incorporate the latest design, fully enclosed and fan-cooled. They are newly designed to comply with the relevant requirements/rules of the IEC standard. Y2 electric motor has the advantages of high efficiency, long life, energy-saving, large starting torque, low noise, low vibration, low-temperature rise, reliable operation, and simple and convenient maintenance. The fixed measurement and power levels are fully compliant with the IEC standard.



Y2 motor has the characteristics of beautiful appearance, superior performance, and convenient maintenance. In addition, it has the advantages of large starting torque and stable rotation. Applicable to all kinds of machinery, such as pumps, transportation machinery, fans, mixers, food machinery, engineering machinery, CNC machinery, mining machinery, compressors, forging machinery, etc.



APPLICATIONS



It concentrates on the advantages of large starting torque, stable operation, low-temperature rise, low noise, and good overload performance. These motors are widely used in small machinery, medical equipment, household appliances, fans, machinery, instrumentation, chemical instrumentation, textiles, agricultural machinery, and so on.

IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 0

IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 1




THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m. If over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

​

Details



IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 2IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 3​ THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability, and safe operation of the motor
BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 4IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 3​
IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 6IC411 Enclosure 5.1HP IEC Asynchronous Induction Motor 2.2KW Y2-100L1-4 3​ HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic and static balance test, to ensure smooth operation and low noise



PERFORMANCE CHART

Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Synchronous Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2




GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What’s the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
