Squirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque

China Squirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque supplier
Squirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque supplier Squirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque supplier

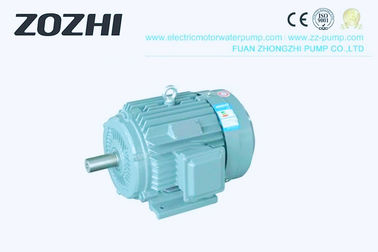

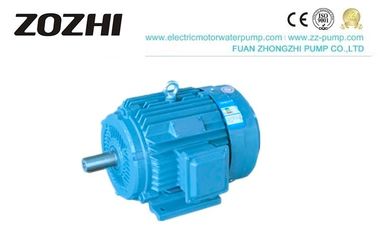

Large Image :  Squirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: Y SERIES

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output Rating: 2.2-200KW Number Of Poles: 8
Enclosure: IC411 Type: Asynchronous Motor
Insulation Class: B / F / H Product Name: Induction Motor
Application: General Driving

Y Series squirrel cage cast iron Three-Phase Induction Motor 2.2-200KW 8Pole





PRODUCT DESCRIPTIONS



Y series three-phase asynchronous 8 pole motor is a fully enclosed fan cooling, squirrel cage cast iron structure, installation dimensions and power levels are fully compliant with IEC standards. They use Class B insulation and IP 44 degrees for the protection and cooling modes of the IC411. The rated voltage and frequency insulation of the Y series are 380v and 50HZ, respectively. The electric motor has the characteristics of high efficiency, energy-saving, large starting torque, low noise, low vibration, high reliability, convenient use, and convenient maintenance.



APPLICATIONS



Y series three-phase induction motor general conditions are widely used inflammable, explosive or corrosive gases. There are no special requirements for metal cutting machines, pumps, fans, mixers, agricultural machinery, transportation machinery, food machinery, and other mechanical equipment.

electric motor




THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m, if over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

Details



electric motorSquirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability and safe operation of the motor
BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect induction motorSquirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque
Y seriesSquirrel Cage Cast Iron 3 Phase Induction Motor 2.2-200KW 8 Pole Large Starting Torque HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic, and static balance test, to ensure smooth operation and low noise



PERFORMANCE CHART





Model Prime Power (A) Speed Eff. Power Factor Eff. Power Factor Tstart/Tn Ist/In Tmax/Tn
kW HP (r/min) (%) (%)
380V 50Hz SynchronousSpeed 750r/min(8 Poles)
Y-132S-8 2.2 3 5.85 710 80.5 0.71 79.7 0.62 2 5.5 2
Y-132M-8 3 4 7.72 710 82 0.72 81.2 0.64 2 5.5 2
Y-160M1-8 4 5.5 9.91 720 84 0.73 83.6 0.64 2 6 2
Y-160M2-8 5.5 7.5 13.3 720 85 0.74 84.4 0.66 2 6 2
Y-160L-8 7.5 10 17.7 720 86 0.75 85.1 0.68 2 5.5 2
Y-180L-8 11 15 24.8 730 87.5 0.77 86.9 0.7 1.7 6 2
Y-200L-8 45 20 34.1 730 88 0.76 87.3 0.71 1.8 6 2
Y-225S-8 18.5 25 41.3 730 89.5 0.76 88.5 0.7 1.7 6 2
Y-225M-8 22 30 47.6 730 90 0.78 88.8 0.71 1.8 6 2
Y-250M-8 30 40 63 740 90.5 0.8 90 0.72 1.8 6 2
Y-280S-8 37 50 78.2 740 91 0.79 90.2 0.72 1.8 6 2
Y-280M-8 45 60 93.2 740 91.7 0.8 91.1 0.74 1.8 6 2
Y-315S-8 55 75 114 740 92 0.8 91.5 0.74 1.6 6.5 2
Y-315M-8 75 100 152 740 92.5 0.81 92 0.76 1.6 6.5 2
Y-315L1-8 90 125 179 740 93 0.82 92.6 0.77 1.6 6.5 2
Y-315L2-8 110 150 218 740 93.3 0.82 92.8 0.78 1.6 6.3 2
Y-355M1-8 132 180 260 740 93.8 0.81 93.3 0.79 1.9 6.3 2
Y-355M2-8 160 220 314 740 94 0.81 93.5 0.79 1.9 6.3 2
Y-355L-8 200 270 392 740 94.3 0.81 93.8 0.79 1.9 6.3 2




GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available, feel free to contact us.


4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making, also we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What’s the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
