0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines

China 0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines supplier
0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines supplier 0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines supplier

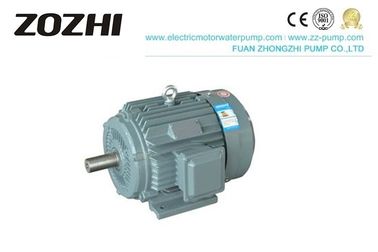

Large Image :  0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: Y SERIES

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output Rating: 0.55-315KW Number Of Poles: 4
Enclosure: IC411 Type: Asynchronous Motor
Insulation Class: B / F / H Product Name: Induction Motor
Application: General Driving

Y Series Three-Phase Induction Motor 0.55-315KW 4Pole For Milling Machines





PRODUCT DESCRIPTIONS



Y series fully enclosed air-cooled squirrel cage three-phase asynchronous 4 pole motor has the characteristics of high efficiency, energy-saving, large starting torque, low noise, low vibration, high reliability, convenient use, and convenient maintenance. Class B insulation, IP 44 degrees, for IC411 protection and cooling mode. Y series rated voltage and frequency insulation are 380v and 50HZ respectively. The induction motor of 3kw or less (3kw or more) is connected by Y type, and the motor of 4kw or more (4kw or more) is connected by △. Y series motors are usually used in mechanical equipment without any special requirements.



APPLICATIONS



The motor is widely used in small machinery, medical equipment, household appliances, fans, as well as machinery, instruments, cutting machines, textiles, milling machines and so on.

single phase induction motor
THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m, if over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

Details



electric motor0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines THE COPPER COILS The coil adopts the new national standard copper wire to ensure the high efficiency, stability and safe operation of the motor
BEARING Ensure motor service life, high strength carbon steel quality, with good dust-proof effect induction motor0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines
Y series0.55-315KW 4 Pole 3 Phase Induction Motor IC411 Enclosure For Milling Machines HIGH PRECISION ROTOR New national standard rotor,multi-precision processing, through rigorous dynamic, and static balance test, to ensure smooth operation and low noise



PERFORMANCE CHART



Model Prime Power (A) Speed Eff. Power Factor Eff. Power Factor Tstart/Tn Ist/In Tmax/Tn
kW HP (r/min) (%) (%)
380V 50Hz SynchronousSpeed 1500r/min(4 Poles)
Y-801-4 0.55 0.75 1.51 1390 73 0.76 71.5 0.66 2.4 6 2.3
Y-802-4 0.75 1 2.01 1390 74.5 0.76 73 0.67 2.3 6 2.3
Y-90S-4 1.1 1.5 2.75 1400 78 0.78 77 0.71 2.3 6.5 2.3
Y-90L-4 1.5 2 3.65 1400 79 0.79 77.5 0.72 2.3 6.5 2.3
Y-100L1-4 2.2 3 5.03 1430 81 0.82 80.3 0.74 2.2 7 2.3
Y-100L2-4 3 4 6.82 1430 82.5 0.81 81.6 0.75 2.2 7 2.3
Y-112M-4 4 5.5 8.77 1440 84.5 0.82 83.3 0.76 2.2 7 2.3
Y-132S-4 5.5 7.5 11.69 1440 85.5 0.84 84.2 0.78 2.2 7 2.3
Y-132M-4 7.5 10 15.4 1440 87 0.85 86.1 0.8 2.2 7 2.3
Y-160M-4 11 15 22.6 1460 88 0.84 87.4 0.79 2.2 7 2.3
Y-160L-4 15 20 30.3 1460 88.5 0.85 87.8 0.8 2.2 7 2.3
Y-180M-4 18.5 25 35.9 1470 91 0.86 89.9 0.81 2.2 7 2.2
Y-180L-4 22 30 42.5 1470 91.5 0.86 90.7 0.81 2 7 2.2
Y-200L-4 30 40 56.8 1470 92.2 0.87 91.3 0.82 2 7 2.2
Y-225S-4 37 50 70.4 1480 91.8 0.87 91.1 0.84 1.9 7 2.2
Y-225M-4 45 60 85.2 1480 92.3 0.88 91.6 0.85 1.9 7 2.2
Y-250M-4 55 75 103 1480 92.6 0.88 91.5 0.84 2 7 2.2
Y-280S-4 75 100 140 1480 92.7 0.89 91.7 0.84 1.9 7 2.2
Y-280M-4 90 125 164 1480 93.5 0.89 92.4 0.85 1.9 7 2.2
Y-315S-4 110 150 201 1480 93.5 0.89 92.5 0.86 1.8 6.8 2.2
Y-315M-4 132 180 240 1490 94 0.89 92.8 0.86 1.8 6.8 2.2
Y-315L1-4 160 220 289 1490 94.5 0.89 93.2 0.86 1.8 6.8 2.2
Y-315L2-4 200 270 361 1490 94.5 0.89 93.2 0.86 1.8 6.8 2.2
Y-355M-4 250 340 459 1485 94.7 0.87 93.6 0.87 1.6 6.8 2.2
Y-355L-4 315 430 576 1485 95.2 0.87 94.1 0.87 1.6 6.9 2.2



GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available, feel free to contact us.


4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making, also we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What’s the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept to use our logo?
    A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
