Fully Enclosed Fan Cooled Squirrel Cage Electric Motor 2 Poles Low Noise 0.75-315KW

  • Fully Enclosed Fan Cooled Squirrel Cage Electric Motor 2 Poles Low Noise 0.75-315KW
  • Fully Enclosed Fan Cooled Squirrel Cage Electric Motor 2 Poles Low Noise 0.75-315KW
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y SERIES
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Rating 0.75-315KW Number Of Poles 2
Enclosure IC411 Type Asynchronous Motor
Insulation Class B / F / H Product Name 3 Phase Induction Motor
Application General Driving
High Light

3 phase asynchronous motor

,

squirrel cage electric motor
Leave a Message
Product Description

Y Series Three-Phase Induction Motor, 2 poles low noise electric motor 0.75-315KW 2Pole

3 Phase Induction Motor



PRODUCT DESCRIPTIONS

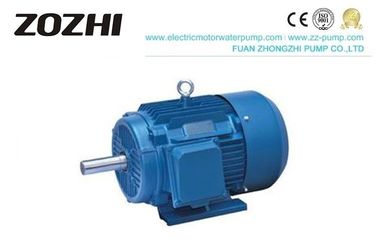

Y series 2 pole electric motor is a fully enclosed fan cooled, three-phase squirrel cage asynchronous motor.
Y series motor has the advantages of safety and reliability, beautiful appearance, convenient maintenance, low noise, small vibration, and simple structure. High efficiency, large starting torque, and low noise.



APPLICATIONS



Y series motors are widely used in applications with no flammable, explosive, or corrosive gas. Therefore, there are no special requirements, such as machine tools, pumps, fans, transportation machinery, agricultural machinery, food machinery.

SINGLE PHASE INDUCTION MOTOR
THREE-PHASE INDUCTION MOTOR FEATURES



1. Consistent performance



2. Low maintenance



3. Suitable for mounting in any position



4. Easy to operate




3 Phase Induction Motor OPERATING LIMITS



1. Priming voltage: 380V or any voltage between 220-760V


2. Sea level: not exceed 1000m. If over, the power will be down


3. Environment temperature: -15℃ ≦ 0 ≦ 40℃


4. Protection: IP44 / IP54 / IP55


5. Insulation Class: B / F / H

​



PERFORMANCE CHART



Model Prime Power (A) Speed Eff. Power Factor Eff. Power Factor Tstart/Tn Ist/In Tmax/Tn
kW HP (r/min) (%) (%)
380V 50Hz SynchronousSpeed 3000r/min(2 Poles)
Y-801-2 0.75 1 1.81 2830 75 0.84 73.8 0.79 2.2 6.5 2.3
Y-802-2 1.1 1.5 2.52 2830 77 0.86 76.5 0.81 2.2 7 2.3
Y-90S-2 1.5 2 3.44 2840 78 0.85 77.5 0.8 2.2 7 2.3
Y-90L-2 2.2 3 4.83 2840 80.5 0.86 79.7 0.82 2.2 7 2.3
Y-100L-2 3 4 6.39 2870 82 0.87 81.3 0.83 2.2 7 2.3
Y-112M-2 4 5.5 8.17 2890 85.5 0.87 84.8 0.83 2.2 7 2.3
Y-132S1-2 5.5 7.5 11.1 2900 85.5 0.88 84.9 0.86 2 7 2.3
Y-132S2-2 7.5 10 15 2900 86.2 0.88 85.5 0.86 2 7 2.3
Y-160M1-2 11 15 21.8 2930 87.2 0.88 86.5 0.86 2 7 2.3
Y-160M2-2 15 20 29.4 2930 88.2 0.88 87.6 0.85 2 7 2.3
Y-160L-2 18.5 25 35.5 2930 89 0.89 88.5 0.86 2 7 2.2
Y-180M-2 22 30 42.2 2940 89 0.89 88.1 0.87 2 7 2.2
Y-200L1-2 30 40 56.9 2950 90 0.89 88.7 0.86 2 7 2.2
Y-200L2-2 37 50 69.8 2950 90.5 0.89 89.7 0.86 2 7 2.2
Y-225M-2 45 60 83.9 2970 91.7 0.89 90.7 0.87 2 7 2.2
Y-250M-2 55 75 103 2970 91.5 0.89 90.6 0.86 2 7 2.2
Y-280S-2 75 100 139 2970 92 0.89 91 0.86 2 7 2.2
Y-280M-2 90 125 166 2970 92.5 0.89 91.4 0.86 2 7 2.2
Y-315S-2 110 150 203 2980 92.5 0.89 91.4 0.86 1.8 6.8 2.2
Y-315M-2 132 180 242 2980 93 0.89 91.8 0.87 1.8 6.8 2.2
Y-315L1-2 160 220 292 2980 93.5 0.89 91.9 0.87 1.8 6.8 2.2
Y-315L2-2 200 270 365 2980 93.5 0.89 92.3 0.87 1.8 6.8 2.2
Y-355M-2 250 340 444 2980 94.5 0.9 93.3 0.88 1.6 7 2.2
Y-355L-2 315 430 556 2950 95 0.9 93.9 0.88 1.6 7.1 2.2

3 Phase Induction Motor GUARANTEE



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





OUR SERVICE


1. Directly factory sale.


2. Quick response to 2-8hours, response rates over 92%.


3. 24 hours phone call is available. Feel free to contact us.


4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.




FAQ


1. Q: What's the MOQ?
    A: We accept one piece.

2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

4. Q: What's the warranty period?
    A: 1 year.



5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
