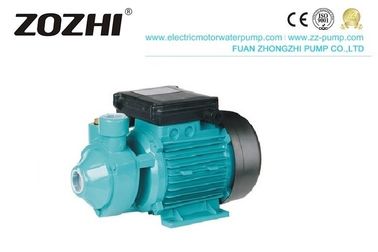

IDB Series Peripheral Water Pump , Electric Motor Pump IDB-35 IDB-40 IDB-50 IDB-60
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | CE/SGS/ISO |
Model Number | IDB-35 IDB-40 IDB-50 IDB-60 |
Minimum Order Quantity | 1pc |
Price | negotiated |
Packaging Details | Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 30000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Peripheral Water Pump | Application | Boosting |
---|---|---|---|
Power | 0.55-1.5KW | Flow Max | 35-60L/Min |
Head Max | 35-70M | Suction Max | 9M |
Warranty | 12 Months | Speed | 2850RPM |
High Light | peripheral impeller pump,domestic water pump |
IDB Series Peripheral Water Pump , Electric Motor Pump IDB-35 IDB-40 IDB-50 IDB-60
Peripheral Water Pump
Peripheral Water Pump Description
The IDB series of clean water pumps have a main power range of 0.5HP to 1.5HP and are a low-power household electric pump. Single-phase 220V/50HZ, brass impeller, gear design, small size, powerful power, rust-proof and beautiful. The coil is 100% copper wire, making the motor work cooler, more stable, and has a longer working life—carbon steel motor shaft with thermal protector inside. Professional temperature protectors ensure the safe use of the stator. The rotor is machined by a CNC machine tool with higher quality and better effect. The shaft is made of SS304 stainless steel, which can avoid rust and last longer—Alloy mechanical seals for higher reliability. Peripheral pump advantages determined they are easy to use and economical, making them ideal for home use, especially for dispensing water and small pressures and garden and plant migration. For the pump to work properly, it is recommended to pump clean water without abrasive particles and non-corrosive liquids.
Peripheral Water Pump Application
The IDB series of clean water pumps are easy to use and economical, low power, stable operation is a highly efficient household electric pump for home use, directly coupled with miniature heavy-duty motors and peripheral pumps. They carry good clean water or liquids. Used in homes, hotels, high-rise buildings, self-service water supply, automatic sprinkler systems, small air conditioning systems, or ancillary equipment. Watering the garden automatically distributes the water and increases insufficient tap water pressure, distributes the water and small pressures, and migrates plants in the garden.
Peripheral Water Pump Data ( 220V/50HZ )
Type of water pump |
Power KW HP |
Q.Max (L/min) | H.Max (m) |
Speed (r.p.m) |
Suction. Max (m) | Inlet/Outlet | |
IDB-35 | 0.55 | 0.75 | 35 | 35 | 2850 | 9 | 1"X1" |
IDB-40 | 0.75 | 1.00 | 45 | 50 | 1"X1" | ||
IDB-50 | 1.10 | 1.50 | 50 | 55 | 1.5"X1.5" | ||
IDB-60 | 1.50 | 2.00 | 60 | 70 | 1.5"X1.5" |
Peripheral Water Pump Construction
Pump
Pump Body: Cast iron
Impeller: Brass
Mechanical Seal: Carbon
Frant Cover: Cast iron/Cast iron with a brass insert/Stainless steel
Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
Construction and safety standards in compliance with IEC
220V/50HZ.60HZ 110V/50HZ.60HZ 220v.110v/50hz.60hz are available on request.
Peripheral Water Pump Use Precautions:
For the pump to work properly, the pump should be installed in a covered area or a closed environment, or at least to avoid bad weather. In addition, the use environment should not exceed 40 ° C, avoid the use of abrasive particles and corrosive liquids, and must not have sand or other solids.
STRUCTURAL CHARACTERISTICS
Main Specification | Standard | Optional |
Transmission medium | Clean Water | |
Pump body | Cast Iron | |
Impeller | Brass | |
Motor housing | Aluminum | |
Stator&Rotor | 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire | |
Front cover | Cast Iron | Brass plate embedded to avoid impeller jam |
Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
Mechanical seal | Graphene/Ceramic | Silicon Carbon |
Shaft | Carbon Steel | Stainless Steel |
Insulation | Class B | Class F |
Protection | IP44 | IP54 |
Voltage | 220-240V Single Phase | On Request |
Frequency | 50HZ | 60HZ |
thermal protection | No | Yes |
Automatic Pressure Control System | No | Yes |
Cooling Type | External Ventilation | |
Max. Suction lift | 9M | |
Max. Fluid Temperature | +60℃ | |
Max. Environment Temperature | +40℃ | |
Installation | Horizontal | |
Connect Type | Thread | |
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
Peripheral Water Pump GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
