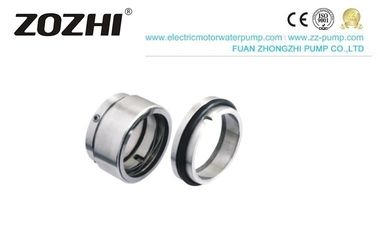

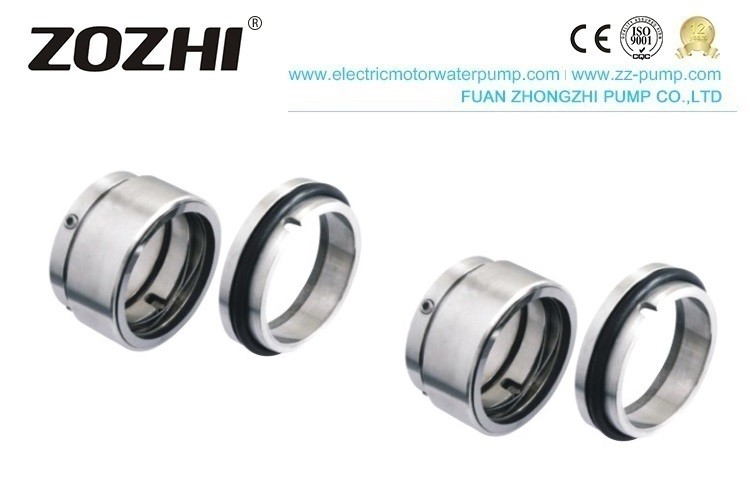

Super Sinus Spring Water Pump Seals , Mechanical Shaft Seal 2.5Mpa GY HJ92N

large.img.alt
small.img.alt small.img.alt

Large Image :  Super Sinus Spring Water Pump Seals , Mechanical Shaft Seal 2.5Mpa GY HJ92N

Product Details:
Place of Origin: FUAN
Brand Name: ZOZHI
Certification: CE, ISO9001
Model Number: GY HJ92N
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons
Delivery Time: 25 working days after received your payment
Supply Ability: 3000000pcs per month
Detailed Product Description
Size:: Standard Size Product Name:: Mechanical Seal
Feature: Rubber Bellows Mechanical Seal Speed:: 13m/sec
Model Number:: GY HJ92N Application:: Water Pump;Ruducer
Pressure:: ≤2.5Mpa Material Type:: SIC/ INSERTED TC
High Light:

ac generator parts

,

alternator generator parts

Super-Sinus Spring Water Pump Seals, 2.5Mpa GY HJ92N Mechanical Shaft Seal



Mechanical Seal



Design Features

By adopting inner installation, inside current, Single seal face, with super-sinus spring, any rotation direction, balanced structure, spring no-touch to media, has a stronger anti-blocking condition.



Complies with the standard GB6556, ISO3069, and DIN 24960





Materials


- Rotary Ring: Inserted carbon / Inserted SIC / Inserted TC

- Stationary Ring: Sic/ Inserted TC
- Spring and Other Parts: SUS304/ SUS316

- Secondary Seal: NBR / EPDM/ VITON



Operating limits


- Temperature: -20~150℃

- Pressure: ≤ 0.8MPa
- Speeds: ≤10m/sec



Applications

Used in different pumps, mixers, and other rotating equipment, the products are widely used in various centrifugal pumps, chemical pumps, and various anticorrosive pumps.



Medium

Oil, water, and other weak corrosive fluid.


Size Information



mechnical seal

mechnical seal
