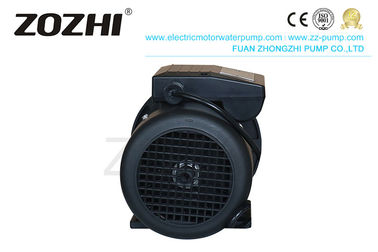

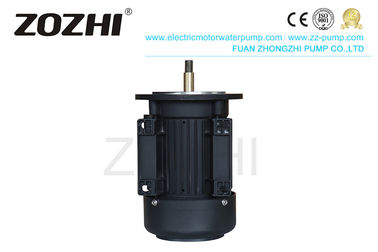

Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing

  • Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing
  • Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing
  • Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT711-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Swimming Pool Pump
Output 0.75HP/0.55KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase Single Phase
Housing Aluminium
High Light

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing

Single Phase Induction Motor


Description



Aluminium Frame Three Phase Ac Motor is made of high-quality Aluminium. With optimized construction design, they can ensure the requirement of structural rigidity and intensity. Silicon steel plate is used in stator core and rotor core. It has good insulation on the surface, a low loss which ensures higher efficiency. High-quality insulation material combines the perfect insulation system, which makes the insulation completely without clearance, high rigidity of the winding end, it can endure switching and reversing intensity, F class insulation makes the motor with higher heat stability and longer life.



Operating Conditions:


1. Ambient temperature: -15℃≦0≦40℃

2. Cooling method: IC0141
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55


Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7






Application

The Single-phase induction water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.



The electric motor so is careful while you use the pump that the water should not exceed.



Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing 0



Production line

swimming pool pump motor

General data

Frame size 71
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 5 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20× 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level


Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing 2

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Swimming Pool Pump Single Phase Induction Motor 0.75HP/0.55KW Aluminum Housing 8
water pump water pump mechnical seal



Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
