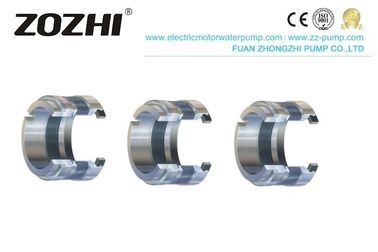

Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604

Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604
Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604 Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604

Large Image :  Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604

Product Details:
Place of Origin: FUAN
Brand Name: ZOZHI
Certification: CE, ISO9001
Model Number: CN604
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons
Delivery Time: 25 working days after received your payment
Supply Ability: 3000000pcs per month
Detailed Product Description
Size:: Standard Size Product Name:: Mechanical Seal
Feature: Rubber Bellows Mechanical Seal Speed:: 50m/sec
Model Number:: CN604 Application:: Water Pumps
Pressure:: 2.0Mpa / 6.9Mpa Material Type:: SIC/ INSERTED TC
Working Temp: -75~420℃
High Light:

ac generator parts

,

alternator generator parts

Single Face Internally Mounted Static Type Seal Easy Spare Parts Mechanical Seals CN604


Mechanical Seal



Design Features

Internally mounted, single face, metal bellows, balanced, static type seal

Driven by screws, any rotation direction, compact construction. It can be mounted conveniently

With superior performance of the compensation, material widely used, adaptive capacity, and a high-temperature performance


Materials(to DIN24960)



Rotary Ring:U2/ Q1
Stationary Ring:A/ U22/ Q12
Auxiliary seal:G
Bellows:Y/ M/ M6
Other PartsG/ G1/ T4/ M




Operating limits


Temperature:-75~420℃
Pressure:

vacuum~2.0Mpa (Single-Ply)
vacuum~6.9Mpa (Doubly-Ply)

Speeds:≤50m/sec
Viscosity:

≤1.0Pa.s(1000cp)(Solt VS Hard)
≤3.5Pa.s(3500cp)(Hard VS Hard)



Applications

Used in all types of rotating equipment, pumps, To Suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, pulp and paper, and wastewater treatment.
Medium
Hydrocarbon, thermosetting, viscosity high-temperature medium


Size Information
hollow shaft electric motor
 More Products

WATER PUMP SEALMECHNICAL SEALSingle Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604 3MECHNICAL SEAL
MECHNICAL SEALMECHNICAL SEALMECHNICAL SEAL BIA MECHNICAL SEAL M7N
Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604 9M1KSingle Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604 11Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604 12


easy spare parts

electric motor

water pump
Single Face Easy Spare Parts Internally Mounted Static Type Mechanical Seals CN604 16

Mechanical Seal


Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
