|Tpye：:||Rotary Ring，Stationary Ring||Material:||Stainless Steel|
|Speed::||25m/sec||Model Number::||GY 58U|
|Working Temp:||-40~150℃||Nature:||High Pressure Resistance, Corrosion Resistance, High Temperature Resistance, Wear Resistance|
water pump parts,
alternator generator parts

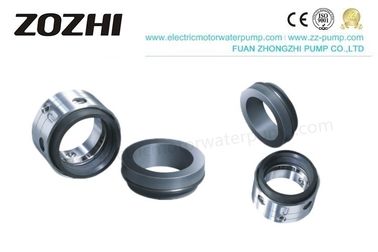

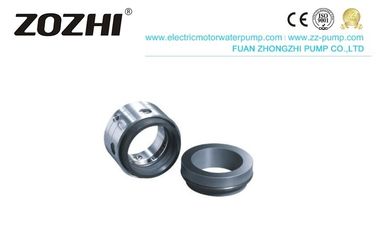

Mechanical Seals GY 58U Design Features
Internally mounted, single face, multi-spring, unbalanced structure and driven by brace ear and claw transmission, any rotation direction, compact construction, it can be mounted conveniently.
Conform to the standard of ISO3069, DIN24960, and GB6556.
O-ring pusher-type seat.
The shape and installation size is identical to 59U
Mechanical Seals GY 58U Materials(to DIN24960)
|Rotary Ring:||Carbon/ Sic / Inserted TC|
|Stationary Ring:||Sic/ Inserted TC|
|Secondary seal:||NBR / EPDM / VITON|
|Spring and Other Parts:||SUS304 / SUS316|
Mechanical Seals GY 58U Operating limits
Mechanical Seals GY 58U Applications
Used in all types of rotating equipment, pumps, mixers, agitators, and compressors. To suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, food processing, pulp and paper, and wastewater treatment.
Mechanical Seals GY 58U Medium
Oil, water, and other weak corrosive fluid.
Mechanical Seals GY 58U Advantage
O-rings are made of high-quality fluorine rubber with high fluorine content in the national standard. The high-temperature resistant liquid will not deform or leak.
Cemented carbide is manufactured with national standard high density and high hardness alloy powder, which has high wear resistance and long service life.
Resistant to all kinds of corrosive grandpas, such as strong acid, strong alkali, saltwater, strong fluorinating agent, organic solvent, etc.
Using national standard high-quality 304 stainless steel seamless pipe, finely processed by CNC machine tools
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
