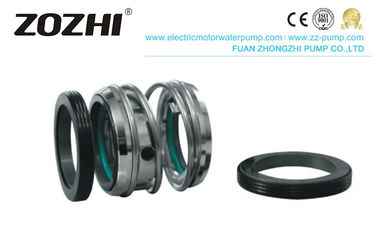

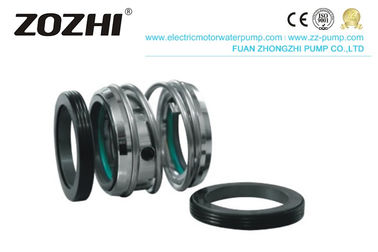

ZOZHI Water Pump Seals Easy Spare Parts 1.6Mpa,15m/sec Carbon/Sic/TC Mechanical Shaft Seal 2119

  • ZOZHI Water Pump Seals Easy Spare Parts 1.6Mpa,15m/sec Carbon/Sic/TC Mechanical Shaft Seal 2119
  • ZOZHI Water Pump Seals Easy Spare Parts 1.6Mpa,15m/sec Carbon/Sic/TC Mechanical Shaft Seal 2119
Place of Origin FUAN
Brand Name ZOZHI
Certification CE, ISO9001
Model Number 2119
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Standard Size Feature Rubber Bellows Mechanical Seal
Speed 15m/sec Model Number 2119
Application Water Pump;Ruducer Pressure ≤1.6Mpa
Working Temp -20~150℃ Stationary Ring Carbon/Sic/TC
Rotary Ring Inserted Sic/Inserted TC Secondary Seal NBR/EPDM/VITON
Spring&Other Parts SUS304 / SUS316
Leave a Message
Product Description

CHINA MANUFACTURER Easy Spare Parts WATER PUMP SEALS 560A/B/C MECHANICAL SHAFT SEAL



Design Features

Double seal face, single spring, unbalanced structure and driven by the set screw, any rotation direction, it can be mounted conveniently.



Materials(to DIN24960)


- Rotary Ring: Inserted Sic/ Inserted TC
- Stationary Ring: Carbon/Sic/TC
- Secondary seal: NBR/EPDM/VITON
- Spring and Other Parts: SUS304/SUS316



Operating limits


- Temperature: -40~150℃
- Pressure: ≤ 1.6MPa
- Speeds: ≤15m/sec


Applications


Apply to all kinds of clear water pumps, sewage pumps, submerged pumps, chemical pumps, etc rotating machinery. Medium for water, sewage, solid particles generally weak corrosive liquid.



Size Information
ZOZHI Water Pump Seals Easy Spare Parts 1.6Mpa,15m/sec Carbon/Sic/TC Mechanical Shaft Seal 2119 0
ZOZHI Water Pump Seals Easy Spare Parts 1.6Mpa,15m/sec Carbon/Sic/TC Mechanical Shaft Seal 2119 1


Model D1 D7 L L1
2119-16 16 28/30 38 5
2119-17 17 35 38 5
2119-20 20 35/36 40 5
2119-22 22 36/38 40 5
2119-25 25 40/41 48 7.5
2119-30 30 45 48/51 7.5
2119-35 35 50 51 7.5
2119-40 40 58 58/60/61 9
2119-45 45 63 58/61 9
2119-50 50 70 60/68 9.5
2119-55 55 75 60/71 10.5
2119-60 60 80 65/85 10.5
2119-65 65 85 77 11
2119-70 70 92 77/85 11
2119-75 75 97 85 11
2119-80 80 105 85 11
2119-85 85 110 87.5/90 14
2119-90 90 115 89 14
2119-95 95 120 89 14
2119-100 100 125 89/95 14
