M12 M14 M16 Rubber Easy Spare Parts Anti Vibration Engine Generator Mount Pad

Place of Origin FUAN
Brand Name ZOZHI
Certification CE, ISO9001
Model Number Anti-Vibration Engine Mount
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Generator Rubber Mounts Color Silver And Black For Generator Rubber Mounts
Material Rubber And Stainless Stell For Generator Rubber Mounts Shape Bell Shape Generator Rubber Mounts
Hole Size M12 M14 M16 For Generator Rubber Mounts Function Generator Rubber Mounts
Stock Supply YES
High Light

water pump parts

,

ac generator parts

Leave a Message
Product Description

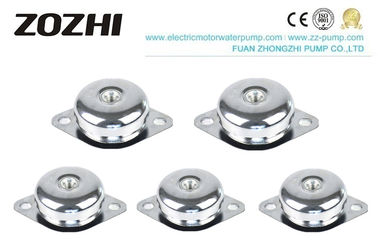

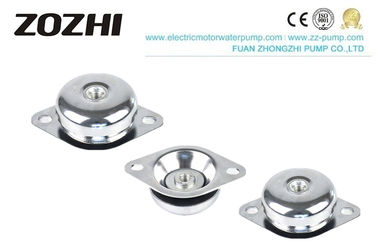

M12, M14, M16 Rubber Mount Easy Spare Parts Anti Vibration Engine Mount Generator Mount Pad



Description:

ZOZHI bell-type anti-vibration engine mount damper can achieve a high damping effect in axial pressure and lateral pressure, especially in generators, engines, and systems. The shock absorption effect is very good. The range of motion is about 24HZ (1500RPM). The iron parts are completely bonded, in addition to the safety lock parts locking product in the middle, which is very reliable and durable. This cushion is suitable for equipment with a large load, 1500-3500HZ.



Individual load capacity from 100KG to 1000KG is optional
Standard model mounting bolt holes, M12, M16, M20, etc., other requirements can also be customized according to customer requirements.



Product Name: Anti-vibration mount
Specifications: 100~2000kg
Elastic component: rubber
Metal parts: white galvanized steel sheet UN-ISO 2081
Applicable environment: -40 ° C ~ 120 ° C





Application:

Suitable for shock-absorbing devices of rotary machines, such as diesel generator sets, centrifugal industrial fans, various pump bodies, electric motors, inverters, and compressors, etc., with a speed of more than 1200 rpm. Effectively eliminate, axial and radiated vibration



Characteristics:

Low dynamic coefficient, good anti-vibration effect, small size, low height, stable performance, easy and convenient installation, can be directly placed between the isolated unit and the ground, generally without anchor bolts, no concrete foundation, short construction period, Low investment is the ideal product for domestic power machinery to implement no basic anti-vibration



anti-vibration mount






KG A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
100KGS 70 34 M12 75 100 130
200KGS 95 43 M12,M14,M16 100 120 153
300KGS 100 43 M12,M14,M16 100 120 153
400KGS 100 44 M12,M14,M16 108 143 178
500KGS 100 44 M12,M14,M16 108 143 178
600KGS 122 52 M14,M16 125 158 190
800KGS 150 56 M18,M20 151 182 216
1000KGS 150 56 M18,M20 151 182 216
2000KGS 151 58 M20 143 130 167



Thickened steel plate galvanized casing



The upper and lower shells of the metal rubber damper are made of stamped steel sheet metal, galvanized on the surface, good in Guanze, and durable.

anti vibration mount
anti vibration mount

Oil resistant anti-vibration rubber

  The metal rubber damper uses an oil-resistant and anti-vibration rubber layer inside, which has strong impact resistance.

Complete product model

Metal rubber shock absorbers are available in a full range of models

anti vibration mount
anti vibration mount

Multiple installation methods

Metal rubber dampers are available in a variety of mounting styles, including flat, side, and side mounts. The transverse stiffness is higher than the longitudinal stiffness, and the lateral stability is good when placed flat.







Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
