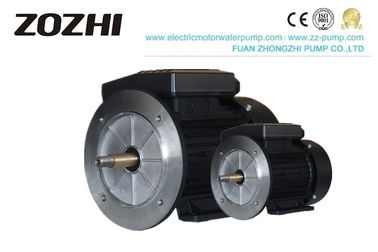

0.75KW Single Phase Electric Aluminum Induction Motor MYT712-2 For Pool Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Phase Induction Motor | Application | Swimming Pool Pump |
|---|---|---|---|
| Output | 1HP/0.75KW | Pole | 2 |
| Efficiency | IE1,IE2 | Performance | High Reliability |
| Capacitor Type | Capacitor Running | Phase | Single Phase |
| Highlight | single phase capacitor start motor,single phase asynchronous motor |
||
Product Description
0.75KW Single Phase Electric Aluminum Induction Motor MYT712-2 For Pool Pump
Single Phase Induction Motor
Description
Designed for domestic swimming pools or spa pools with medium head installations
Transparent lid for easy checking
Using NSK bearing
Low energy consumption
Extremely quiet running
External heat sink to ensure maximum cooling capability
Designed for easy maintenance and repairs
Operating Conditions:
1. Ambient temperature: -15℃≦0≦40℃
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Production data
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | Tstart/Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
Application
The Single-phase induction water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.
Production line
General data
| Frame size | 80 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 8.7kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M20 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions | |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |
|
|
|
|
|
|
|
|
|
Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
