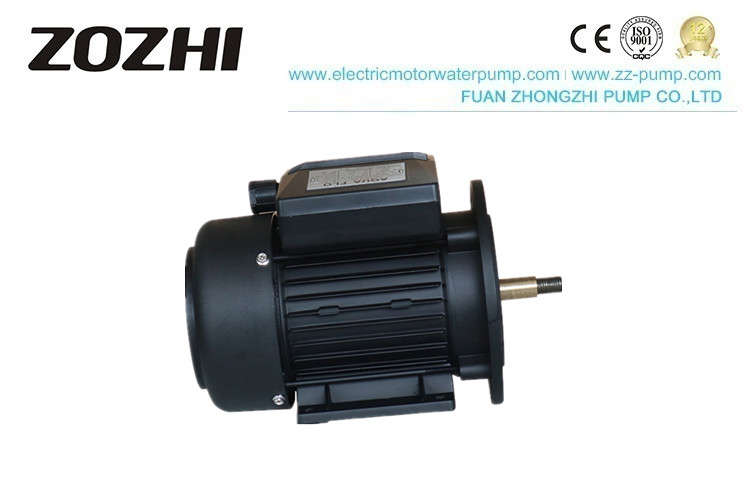

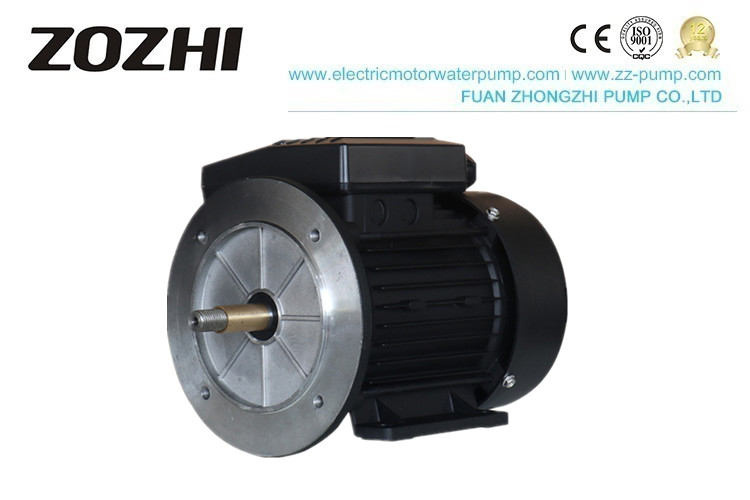

MYT801-2 S1 Duty Single Phase Asynchronous Motor Electric 1.5HP

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT801-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Swimming Pool Pump
Output 1.5HP/1.1KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase Single Phase
High Light

MYT801-2 Single Phase Asynchronous Motor

,

S1 Duty Single Phase Asynchronous Motor

,

1.5HP AC Water Pump Motor

Leave a Message
Product Description

MYT801-2 1.5HP Single Phase Asynchronous Motor, Electric AC Water Pump Motor

Single Phase Induction Motor


Description



Designed for the pool pump, bathtub pump, centrifugal pump
Be made of selected quality material, the latest design in its entirety
Good performance, low noise, little vibration, safe and reliable cooperation
Nice appearance, lightweight
Be maintained very convenient, simple construction.





Operating Conditions:


1. Ambient temperature: -15℃≦0≦40℃
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141





Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) Tstart/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7






Application

The Single-phase induction water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and high insulation grade. It is the best choice for swimming pool pumps.

MYT801-2 S1 Duty Single Phase Asynchronous Motor Electric 1.5HP 0



Production line

swimming pool pump motor

General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight  8.7kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level




Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
