Water Pumps Alternator Generator Parts Eagle Burgmann Mechanical Seal BK SIC

  • Water Pumps Alternator Generator Parts Eagle Burgmann Mechanical Seal BK SIC
  • Water Pumps Alternator Generator Parts Eagle Burgmann Mechanical Seal BK SIC
Place of Origin FUAN
Brand Name ZOZHI
Certification ISO9000 ,CE
Model Number BK
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Standard Size Feature Rubber Bellows Mechanical Seal
Speed ≤30m/sec Model Number BIA
Application Water Pump;Ruducer Pressure ≤1.0Mpa
Material Type Graphite+Silicon Carbide Working Temp -20~200℃
High Light

alternator generator parts

,

water pump parts
Leave a Message
Product Description

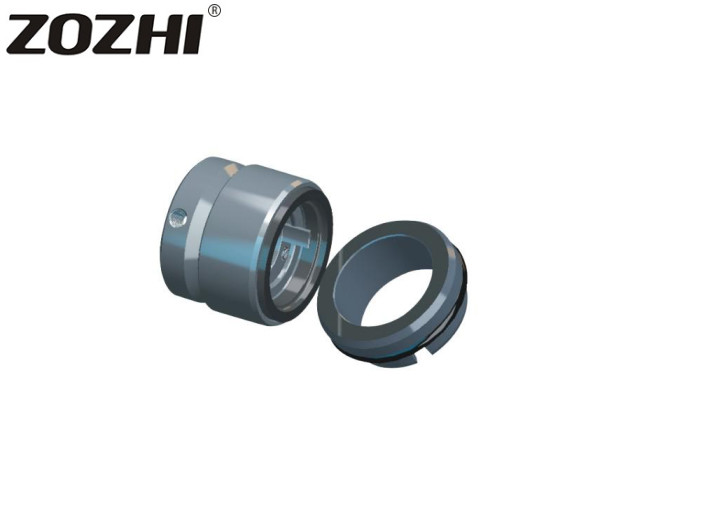

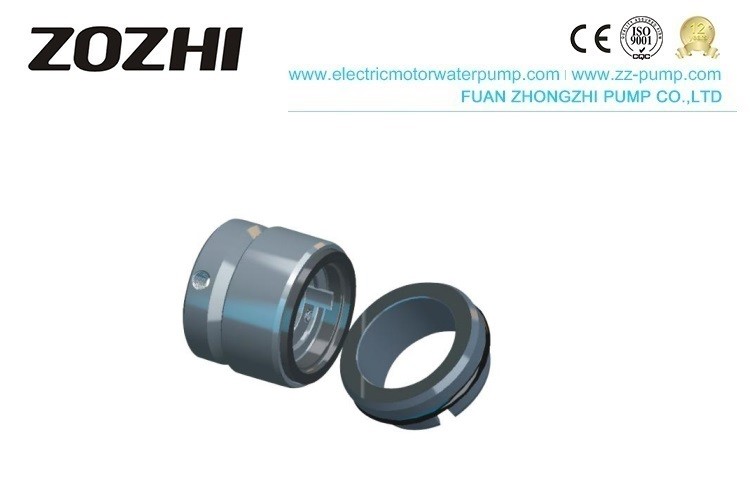

Eagle Burgmann Easy Spare Parts Mechanical Seal BK SIC For Water Pumps



Design Features

-  Internally mounted, singe face, multiple springs, balanced structure, by means of shifting fork drive, any rotation direction, Spring no-touch to medium, has a stronger anti-blocking condition


Materials(to DIN24960)

- Rotary Ring: A, B, U12, U22, Q12, Q22
- Stationary Ring: U1, U2,Q1,Q2, V1,V2
- Auxiliary Seal: P,E,V,M1
- Spring and Other Parts: F, G


Operating limits

- Pressure: ≤ 10MPa
- Temperature: -20~200℃
- Speeds: ≤30m/sec
- Viscosity:≤1.0Pa.s(1000cp)(Solt VS Hard)
                 ≤3.5Pa.s(1000cp)(Solt VS Hard)

Applications

Used in all of rotating equipment, pumps, to suit industries such as papermaking, sugar- making the industry, water, and sewage water.


Medium

Solid grains medium, high viscosity medium, and other weak corrosive fluid.

Size Information
mechanical seal

Modeld1d3D4D6D7d8L1L3L4L5L6L7L11
BK-353558615461455.044.011.02.06917.5
BK-383860635663455.044.011.02.06917.5
BK-404063666966456.045.011.02.06917.5
BK-434365706270458.045.013.02.56919.5
BK-454569736573458.045.013.02.56919.5
BK-484871756775458.045.013.02.56919.5
BK-505074787078458.045.013.02.56919.5
BK-535382857785458.045.013.02.56919.5
BK-555582857785458.045.013.02.56919.5
BK-585887928392466.551.515.02.57921.5
BK-606087928392466.551.515.02.57921.5
BK-636392978897469.554.515.02.57921.5
BK-656592978897469.554.515.02.57921.5
BK-686810010595105470.054.515.53.07922.0
BK-707010010595105470.054.515.53.07922.0
BK-7575105110100110480.064.515.53.07922.0
BK-8080110115105115480.064.515.53.07922.0
BK-8585115120110120480.064.515.53.07922.0
BK-9090120125115125480.064.515.53.07922.0


Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.

FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
