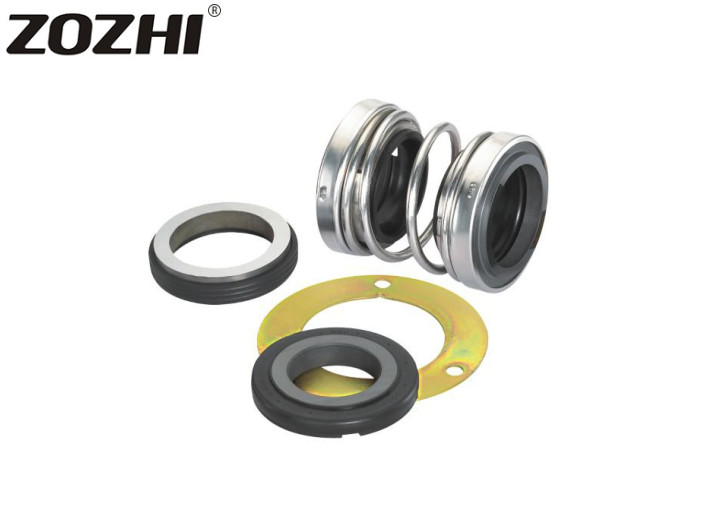

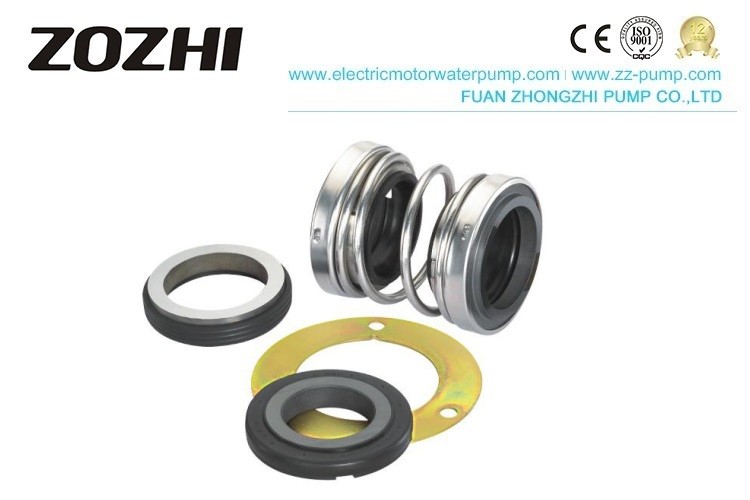

Durable CN 560D Burgmann Mechanical Shaft Seal SIC / INSERTED TC Material

  • Durable CN 560D Burgmann Mechanical Shaft Seal SIC / INSERTED TC Material
  • Durable CN 560D Burgmann Mechanical Shaft Seal SIC / INSERTED TC Material
Place of Origin FUAN
Brand Name ZOZHI
Certification CE, ISO9001
Model Number 560D
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Standard Size Feature Rubber Bellows Mechanical Seal
Speed 10m/sec Model Number 560A
Application Water Pump;Ruducer Pressure ≤0.8Mpa
Material Type SIC/ INSERTED TC Working Temp -20~150℃
High Light

alternator generator parts

,

water pump parts
Leave a Message
Product Description

CN 560D Burgmann Mechanical Shaft Seal Easy Spare Parts For Pumps From Zozhi



Design Features

Double face, single spring, unbalanced, rubber bellows structure

The rotary ring is driven by rubber bellows, good floating



Materials(to DIN24960)



- Rotary Ring: B,U1,U2,Q1,Q2

- Stationary Ring: U1,  U2,Q1,Q2,V1,V2

- Auxiliary Seal: P,E,V
- Spring and Other Parts: F/ G



Operating limits


- Temperature: -20~150℃

- Pressure: ≤ 0.8MPa
- Speeds: ≤10m/sec



Applications

Used in auto-cooling pumps, mixers, and other rotating equipment.



Medium

Oil, water, and other weak corrosive fluid.


Size Information

MECHANICAL SEAL


MECHNICAL SEAL

MECHINACAL SEAL

Model d1 D3 D7 Dm D L1 L2 L4
CN 560D-12 12 25 25     36   5
CN 560D-14 14 30 30     36   5
CN 560D-15 15 30 30     36   5
CN 560D-16 16 30 30     36   5
CN 560D-18 18 35 38     49 7 7
CN 560D-19 19 35 38     49 7 7
CN 560D-20 20 38 38 50 62 49 7 8
CN 560D-25 25 44 50 58 70 51 7 8.5
CN 560D-30 30 44 57 70 82 61 9 8.5
CN 560D-35 35 54 57 70 82 61 8.5 9.5
CN 560D-40 40 64 70     64   10
CN 560D-45 45 66 70 90 105 69 10.5 10
CN 560D-60 50 72 80 69   69 9 10
