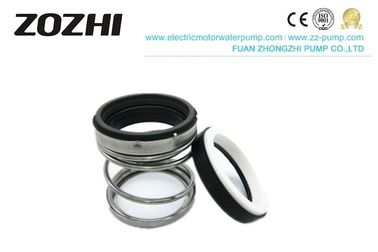

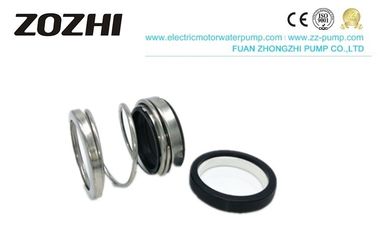

Rubber Water Pump Seals , 0.8Mpa 560A/B/C Mechanical Shaft Seal Standard Size

  • Rubber Water Pump Seals , 0.8Mpa 560A/B/C Mechanical Shaft Seal Standard Size
  • Rubber Water Pump Seals , 0.8Mpa 560A/B/C Mechanical Shaft Seal Standard Size
Place of Origin FUAN
Brand Name ZOZHI
Certification CE, ISO9001
Model Number 560A/B/C
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons
Delivery Time 25 working days after received your payment
Supply Ability 3000000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Standard Size Feature Rubber Bellows Mechanical Seal
Speed 10m/sec Model Number 560A/B/C
Application Water Pump;Ruducer Pressure ≤0.8Mpa
Material Type SIC/ INSERTED TC Working Temp -20~150℃
High Light

alternator generator parts

,

water pump parts
Leave a Message
Product Description

CHINA MANUFACTURER Easy Spare Parts WATER PUMP SEALS 560A/B/C MECHANICAL SHAFT SEAL






Design Features

Single face, single spring, unbalanced, rubber bellows structure

The seal face is driven through the interferential shrink of the rubber piece, close structure, good floating

Many sizes and specification designs have a wide application range



Materials(to DIN24960)




- Rotary Ring: B,U1,U2,Q1,Q2

- Stationary Ring: U1,  U2,Q1,Q2,V1,V2
- Spring and Other Parts: F/ G

- Auxiliary Seal: P,E,V



Operating limits


- Temperature: -20~150℃

- Pressure: ≤ 0.8MPa
- Speeds: ≤10m/sec



Applications

Used in auto-cooling pumps, centrifugal pumps, submersible pumps, and general industrial pumps.



Medium

Oil, water, and other weak corrosive fluid.


Size Information

mechnical seal 560A

Model d1 d3 D7 L1 L3 L4
560A-8 8 17.5 21 18.9 13.9 5.0
560A-10 10 21.0 24 23 16.5 6.5
560A-11 11 21.0 24 23 16.5 6.5
560A-12 12 22.8 26 24 17.5 6.5
560A-13 13 22.8 26 24 17.5 6.5
560A-14 14 26.5 28 25 18.0 7.0
560A-15 15 26.5 28 25 18.0 7.0
560A-16 16 26.5 32 27 20.0 7.0
560A-17 17 30.0 32 26 19.0 7.0
560A-18 18 30.0 35 26 19.0 7.0
560A-19 19 30.0 35 26 18.0 8.0
560A-20 20 32.5 38 28 19.5 8.5
560A-22 22 34.0 40 28 20.0 8.0
560A-25 25 40.0 44 29 20.0 9.0
560A-28 28 44.5 46 30 21.0 9.0
560A-30 30 46.5 50 31 22.0 9.0
560A-32 32 46.5 54 33 24.0 9.0
560A-35 35 51.5 58 36 26.0 10.0
560A-38 38 54.0 60 37 27.0 10.0
560A-40 40 58.0 64 38 28.0 10.0
560A-45 45 61.5 66 40 30.0 10.0
560A-50 50 71.0 72 42 32.0 10.0



MECHANICAL SEAL 560



MECHANICAL SEAL 560
