Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump

China Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump supplier
Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump supplier Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump supplier Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump supplier Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump supplier Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump supplier

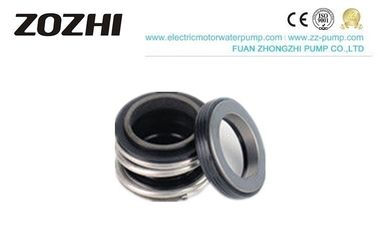

Large Image :  Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump

Product Details:

Place of Origin: FUAN
Brand Name: ZOZHI
Certification: CE, ISO9001
Model Number: MG1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons
Delivery Time: 25 working days after received your payment
Supply Ability: 3000000pcs per month
Contact Now
Detailed Product Description
Structure Tpye:: Single Phase Application:: Water Pump;Ruducer
Pressure:: ≤ 1.6MPa Temperature:: -20~140℃
Speeds:: 10m/sec Tpye: Rotray Ring,Stationary Ring
Texture: Graphite Properties:: Corrosion And Resistanc

Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump



Mechanical Seal MG1 Design Features

- Single face, single spring, unbalanced, rubber bellows structure.
- The seal face is driven through the spring, and spring seat, good floating.

- Suitable for many specifications and designs which conform to ISO3069, DI24960 AND GB6556.


Mechanical Seal MG1 Materials(to DIN24960)

- Rotary Ring: B, Q2, U1, U2
- Stationary Ring: Q2, U1, U2, V1
- Spring and Other Parts: F, G



Mechanical Seal MG1Operating limits

- Pressure: ≤ 1.6MPa
- Temperature: -20~140℃
- Speeds: ≤10m/sec
- Viscosity: ≤ 1.0Pa.s(1000cp)(Soft VS Hard); ≤ 3.5Pa.s(3500cp)(Hard VS Hard)



Mechanical Seal MG1 Applications

Used in centrifugal pumps, mixers, and other rotating equipment.



Mechanical Seal MG1 Medium

Liquid waste of grains, sewage water, oil, etc.



Mechanical Seal MG1 Advantage

1. Fine workmanship
The product is exquisitely manufactured, and production is strictly in accordance with international standards. Any non-conforming product is prohibited from leaving the factory.


2.Energy-saving and environmental protection


When the double-end mechanical seal is running, the sealing cooling water is recovered and reused through the water inlet and outlet holes. When the seal is a single end face, the set can be used as a water-free seal, thereby fully achieving the effect of energy-saving and environmental protection.


3.No leakage
There will be no start-up leakage during use, and the seals are tested before going out of the factory.


4. Structural characteristics
Easy to install, no need to measure the working length of the seal during installation; easy to remove, take out seals for cleaning and inspection without disassembling the pump equipment


Mechanical Seal MG1 Size Information

mechanical seal MG1
Model Shaft d1 d3 D4 db L
MG1-20 20 20 37 38 33 21.5
MG1-22 22 22 37 38 33 21.5
MG1-24 24 24 42.5 44 38 22.5
MG1-25 25 25 42.5 44 38 23
MG1-28 28 28 49 50 44 26.5
MG1-30 30 30 49 50 44 26.5
MG1-32 32 32 53.5 55 46 27.5
MG1-35 35 35 57 59 50 28.5
MG1-38 38 38 59 61 53 30
MG1-40 40 40 62 64 55 30
MG1-45 45 45 68 70 60 30
MG1-48 48 48 70.5 74 63 30.5
MG1-50 50 50 74 77 65 30.5
MG1-55 55 55 81 83 72 35
MG1-60 60 60 88.5 91 79 38



Installation Precautions


1. The assembly should be clean and smooth. The parts of mechanical seals, related machinery and equipment parts, tools, lubricating oil (grease), wipe materials (cotton yarn, white cloth, silk, etc.) must be very clean. The sealing end face of the dynamic and static ring should be wiped with white silk or soft gauze.


2. Trimming and chamfering rounds, chamfers such as shafts and sealed end caps should be trimmed smoothly, and the relevant rounded corners of the shaft and end caps should be sanded and polished.


3. During installation, apply turbine oil or l0 oil on the moving ring and static ring (especially on the seal end blood), auxiliary seal ring, shaft, and end cap to reduce friction, so as not to damage the seal of the static ring. End faces and auxiliary seals.


4. Assemble the auxiliary sealing ring.
1) The rubber auxiliary seal cannot be washed with gasoline or kerosene to avoid swelling and deformation and premature aging.
2) After the O-ring is installed on the moving ring assembly or static ring assembly, it should be logical to prevent it from being twisted, so that the burr is in the cross-section when it is in a free state. O-rings that are slightly rough on the burr can be used if the burr segment is 45o. However, care should be taken in the position of the burrs. When pushing the component, one side of the O-ring and the seal (gland or seal cavity) slide relative to each other. In position, it affects the sealing effect.
3) When pushing the assembly, prevent the O-ring from being damaged. The main forms of damage are drop, nick, bump, curl and twist.


5. Adjust the compression amount of the mechanical seal according to the technical requirements. For the value, refer to the product manual. Otherwise, the amount of compression is too large, which increases the specific pressure on the end face and accelerates the end face wear.


6. The static ring assembly should be installed into the gland (or sealed cavity) using a press or a drilling machine. Under no circumstances should mechanical seal parts or components be impacted. The pressed surface should be covered with clean paper or cloth to avoid damaging the sealed end.


7. After assembling the moving ring or static ring assembly, press the compensation ring by hand to check whether it is installed in place and whether it is flexible; elastic split ring (in some mechanical seals, the elastic split ring axially positions the compensation ring) Reliable positioning.


8. Check whether the perpendicularity between the sealed end and the centerline of the shaft (or sleeve) meets the requirements.


9. The anti-rotation pin lead of the static ring component must be accurate. When pushing the static ring component, the pin groove of the component must be aligned with the pin. After pushing in place, the distance from the end surface of the component to one end of the sealed cavity is determined to determine whether it is in place.


10. When tightening the end caps by tightening the bolts, use even force, symmetry, and care. Tighten it several times. Do not tighten it at one time to avoid deflection or even crushing of the static ring.


11. After the moving ring is installed, it must be ensured that it can move flexibly in the axial direction on the shaft (press the spring with the moving ring and then spring back freely).





More Products

WATER PUMP SEAL MECHNICAL SEAL Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump MECHNICAL SEAL
MECHNICAL SEAL MECHNICAL SEAL MECHNICAL SEAL BIA MECHNICAL SEAL M7N
Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump M1K Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump Mechanical Seal Burgmann MG1 Easy Spare Parts Unbalance Single Face Single Spring Rubber Bellow For Water Pump




avr



water pump motor



water pump



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.


Our service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making, also we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
