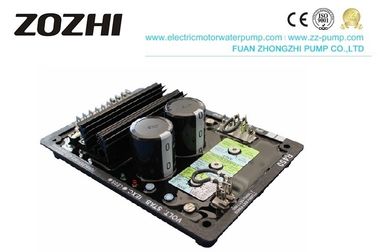

Automatic Voltage Alternator Generator Parts 1000kva AVR R450 For Diesel Generator Sets

Automatic Voltage Alternator Generator Parts 1000kva AVR R450 For Diesel Generator Sets
Automatic Voltage Alternator Generator Parts 1000kva AVR R450 For Diesel Generator Sets Automatic Voltage Alternator Generator Parts 1000kva AVR R450 For Diesel Generator Sets

Large Image :  Automatic Voltage Alternator Generator Parts 1000kva AVR R450 For Diesel Generator Sets

Product Details:
Place of Origin: FUAN
Brand Name: ZOZHI
Certification: CE,RoHS,ISO9001
Model Number: R450
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: carton box
Detailed Product Description
GUM Type: Hard Gum, Soft For Option Phase: Single Phase/3 Phase
Function: Replaced For Generator Avr Current Type: AC
Warranty:: 1 Year Application:: Diesel Generator
High Light:

water pump parts

,

alternator generator parts

Alternator Easy Spare Parts automatic voltage regulator 1000kva AVR R450 For Diesel Generator Sets





Product Description



The R450 includes advanced protections such as over-excitation limitation and voltage sensing loss and also features voltage droop for Genset parallel operation. The R450 is also equipped with a Load Acceptance Module (LAM) to handle load impact events.



R450 AVR is an analog A.V.R.  It is designed for alternators with a SHUNT, AREP, or PMG excitation.

R450 AVR for Genset controls the excitation current to maintain the output voltage of the alternator. R450 is performant in terms of voltage regulation, simple to set, to use, and is reliable.

Rotating switches for U/f, LAM, excitation type, and voltage sensing is available. It complies with I.E.C. 60034-1 standard and U.L. 508 / C.S.A. approved



Specification

Operation mode: Standalone

Main feature and characteristics of R450 AVR for diesel alternator:

- Voltage regulation : ± 0.5 %.

- Under-speed protection by function :

1 U/f ( LAM: OFF).

2 U/f (LAM: MODE1).

Auto-adaptation LAM + 2 U/f (LAM : MODE 2).

- Nominal excitation current: 6A.

- Maximum excitation current: 10A during 10 s.

- Provide range 150V (50Hz/60Hz).

- Voltage détection: ≤ 530 V.

- Protection: fuse fast 10A.

- Protection on load, short-circuit, and voltage reference loss.



Operation conditions R450 AVR for Leroy Somer Genset:

- Operating temperature range : - 40° C à + 65° C.

- Storage temperature range : - 55° C à + 85° C.

- Hygrometry: 98%.

- Maximum choc: 9 g on 3 axis.

- Vibrations: less than 10 Hz, 2 mm peak magnitude.

From 10 Hz to 100 Hz: 100 mm/s, below 100 Hz: 8g.

Optional modules compatible with R450 AVR for diesel Genset

- R 731:  three-phase voltage sensing.

- R 734: phase current and voltage sensing for parallel operation

- R 726: regulation system changed to “4 - function”



Connexion and setting of R450 AVR for Alternator:

Settings are done through the A.V.R.

- Potentiometer P1:  voltage setting.

- Potentiometer P2: stability setting.

- Potentiometer P3: excitation.

- Rotating switch selection 1: frequency, U/F function, LAM function

- Rotating switch selection 2: alternator type and voltage sensing (1 ph. ou 3 ph.).

- Rotating switch selection 3: excitation type (AREP or PMG) and time response.

- Potentiometer P4: quadrature droop.





Key specifications
Technology Analog
Excitation mode SHUNT, AREP, PMG
Rated excitation current 6 A
Regulation accuracy (+/- %) 0.50%
Frequency range 10 – 100 Hz
Voltage setting range (+/- %) 5%
kU/F limitation K = 1&2
Loss of sensing voltage
Over-excitation limitation
Short circuit current limitation
Voltage droop
Parallel operation between alternators
Load Acceptance Module (LAM)



More Products



AVR R448 AVR AS440 MX321 MX341
AS440 AS480 GAVR12  GAVR 12 EA05A
R449 R220 R438 R450
