Aluminum Casting Squirrel Cage Induction Motors 1.5HP/1.1KW For Swimming Pool Pump

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MYT801-2
Minimum Order Quantity 1CBM
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Swimming Pool Pump
Output 1.5HP/1.1KW Pole 2
Efficiency IE1,IE2 Performance High Reliability
Capacitor Type Capacitor Running Phase Single Phase
High Light

single phase capacitor start motor

,

single phase asynchronous motor

Leave a Message
Product Description

Aluminum Casting Squirrel Cage Induction Motors 1.5HP/1.1KW For Swimming Pool Pump



Single Phase Induction Motor



Single Phase aluminum body type induction motor, Used in swimming pool pumps, IEC standard with IP54 protection class, that is two-pole pool pumps motors, and the speed is 2800rpm.



  • Motor model: MYT801-2
  • Power: 1.5HP/1.1KW
  • Voltage(V) : 220V /50HZ
  • Protection: IP44/IP54/IP55
  • Insulation Class: B/F/H
  • Ambient temperature: -15℃≦0≦40℃

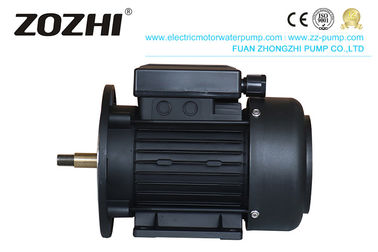

Aluminum Casting Squirrel Cage Induction Motors 1.5HP/1.1KW For Swimming Pool Pump 0



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7

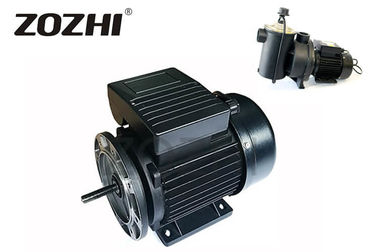

Aluminum Casting Squirrel Cage Induction Motors 1.5HP/1.1KW For Swimming Pool Pump 1

Aluminum Casting Squirrel Cage Induction Motors 1.5HP/1.1KW For Swimming Pool Pump 2

High-quality Capacitor

Adopt suitable capacitor made by advanced production line, heat resistant to 85℃. The working lift is motor than 10000 hours.



Cold-rolled Stator

Good quality cold-colled silicon from WUGANG brand made by high-speed punching machine, less burr, high concentricity, and stability.



Coil with 100% Copper wire

100% copper wire, with thermal protector, make the pump stop working automatically at the condition of jam or overload, etc.



No leakage Of winding

100% coil testing to make sure each coil is energized, and no leakage at high voltage condition

Aluminum Casting Squirrel Cage Induction Motors 1.5HP/1.1KW For Swimming Pool Pump 3

Aluminum Casting Squirrel Cage Induction Motors 1.5HP/1.1KW For Swimming Pool Pump 4









General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 8.5 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level










Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
