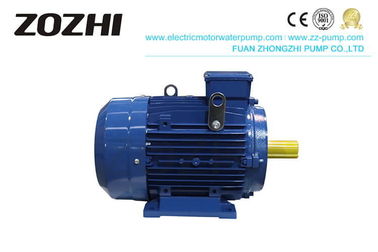

Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box

China Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box supplier
Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box supplier Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box supplier

Large Image :  Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MS802-4

Payment & Shipping Terms:

Minimum Order Quantity: 1CBM
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Three Phase Induction Motor Application: Reducer Belt Wheel
Output: 0.75KW/1HP Pole: 4
Efficiency: IE1,IE2,IE3 Performance: High Reliability
Capacitor Type: Capacitor Running Phase: THREE Phase

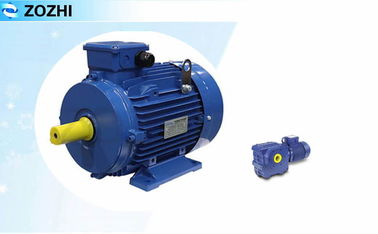

premium efficiency motor with aluminium housing 0.75KW 1HP for gear box






Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box

Ms 3-phase aluminum asynchronous premium-efficiency motors take measures from design, materials and processes, such as reasonable positioning, rotor slot number, fan parameters and sinusoidal windings to reduce losses, and efficiency can be increased by 2% - 8%, an average increase of 4%
. The motor with gear box widely used automated flow wrapping systems.

1) Adopt NSK Bearings with low energy consumption and quiet operation.
2) External heat sink to deliver maximum thermal performance designed for be easily maintenance and repair.



Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box



ZOZHI pump motor  made of selected quality material, latest design in entirety ,Good performance, low noise, little vibration, and safety and reliable cooperation
1.100% copper wire, cold-rolled silicon steel sheet and free accessories
2.Advanced three phase brushless motor
3.CE certificate
Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box

High-quality Capacitor

Adopt good capacitor made by advanced production line, heat resistant to 85℃, working lift is motor than 10000 hours.



Cold-rolled Stator

Good quality cold-rolled silicon from WUGANG brand made by high-speed punching machine, less burr, high concentricity, and stability.



Coil with 100% Copper wire

100% copper wire, with thermal protector, make the pump stop working automatically at the condition of jam or overload ect



No leakage Of winding

100% coil testing to make sure each coil energized, and no leakage at high voltage condition



Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box

Automated flow wrapping systems needed reliable drives for use on its machine’s infeed conveyors. The gear motor of conveyors moves bakery items, including bread and pastries, into the wrapping machine. Accurate speed control of the singulation, profile, accumulation, and metering conveyors is critical to prevent downtime and waste caused by jamming and damage of the food products inside the wrapping machine


Aluminium Housing 3 Phase Induction Motor 0.75KW 1HP Capacitor Running For Gear Box

The revised standard includes the following line-motors
Model  MS802-4
Power range 0.75KW
Level

IE1-Standard Efficiency

IE2-High Efficiency

IE3-Premium Efficiency

Voltage 230/400V/60Hz
Degree of protection all
Operating mode

S1(permanent operation with constant load);motors,that are

designed for different operating modes but can still be operated

permanently with rated output.

Degree of temperature -20. C- + 60.C
Altitude Up to 4000m above sea level
Number of Poles 4
Validity Standard IEC



 IE3 Premium Efficiency

Model Power (V) (A)

Spee

d r/min

Eff.(%) P.F. Tstart/Tn Ist/In
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0



IE2 High Efficiency

Model Power (V) (A) (r/min) Eff.(%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79.0 80.0 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84.0 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87.0 0.860 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.860 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89.0 89.8 89.4 0.860 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90.0 90.5 90.3 0.860 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91.0 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.720 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87.0 86.6 0.790 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89.0 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90.0 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.650 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77.0 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81.0 83.4 83.3 0.720 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86.0 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2



IE1 Standard Efficiency

Model Power
(V)

(A)
P.F. Eff.(%) Speed
(r/min)
Tstart/Tn Tmax/Tn Ist/In(A)
kW HP
MS561-2 0.09 0.12 220/380 0.57/0.33 0.68 62 2800 2.3 2.4 6
MS562-2 0.12 0.16 220/380 0.67/0.38 0.71 67 2800 2.3 2.4 6
MS631-2 0.18 0.24 220/380 0.91/0.53 0.75 69 2800 2.2 2.4 6
MS632-2 0.25 0.33 220/380 1.17/0.68 0.78 72 2800 2.2 2.4 6
MS711-2 0.37 0.5 220/380 1.65/0.95 0.80 73.5 2800 2.2 2.4 6
MS712-2 0.55 0.75 220/380 2.33/1.35 0.82 75.5 2800 2.2 2.4 6
MS801-2 0.75 1 220/380 3.03/1.75 0.85 76.5 2800 2.2 2.4 6
MS802-2 1.1 1.5 220/380 4.42/2.55 0.85 77 2800 2.2 2.4 6
MS90S-2 1.5 2 220/380 6.01/3.84 0.85 77 2800 2.2 2.4 6
MS90L-2 2.2 3 220/380 8.61/4.98 0.86 78 2800 2.2 2.4 6
MS100L-2 3 4 220/380 11.1/6.4 0.87 82 2870 2.2 2.3 7
MS112M-2 4 5.5 380/660 8.2/4.7 0.87 85.5 2890 2.2 2.3 7
MS132S1-2 5.5 7.5 380/660 11/6.4 0.88 85.5 2900 2.0 2.2 7
MS132S2-2 7.5 10 380/660 15/8.6 0.88 86.2 2900 2.0 2.2 7
MS160M1-2 11 15 380/660 21.3/12.2 0.88 88 2930 2.0 2.2 7
MS160M2-2 15 20 380/660 28.7/16.4 0.89 89 2930 2.0 2.2 7
MS160L-2 18.5 25 380/660 34.6/19.8 0.90 90 2930 2.0 2.2 7
MS180M-2 22 30 380/660 40.9/23.4 0.90 90.5 2930 2.0 2.2 7
MS561-4 0.06 0.08 220/380 0.49/0.28 0.58 56 1400 2.3 2.4 6
MS562-4 0.09 0.12 220/380 0.67/0.39 0.61 58 1400 2.3 2.4 6
MS631-4 0.12 0.16 220/380 0.84/0.48 0.63 60 1400 2.2 2.4 6
MS632-4 0.18 0.24 220/380 1.12/0.65 0.66 64 1400 2.2 2.4 6
MS711-4 0.25 0.33 220/380 1.44/0.83 0.68 67 1400 2.2 2.4 6
MS712-4 0.37 0.5 220/380 0.94/1.12 0.72 69.5 1400 2.2 2.4 6
MS801-4 0.55 0.75 220/380 2.69/1.56 0.73 73.5 1400 2.2 2.4 6
MS802-4 0.75 1 220/380 3.48/2.01 0.75 75.5 1400 2.2 2.4 6
MS90S-4 1.1 1.5 220/380 4.74/2.75 0.78 78 1400 2.2 2.4 6
MS90L-4 1.5 2 220/380 6.31/3.65 0.79 79 1400 2.2 2.3 7
MS100L1-4 2.2 3 220/380 8.6/5.0 0.82 81 1430 2.2 2.3 7
MS100L2-4 3 4 220/380 11.7/6.8 0.81 82.5 1430 2.2 2.3 7
MS112M-4 4 5.5 380/660 8.8/5.1 0.82 84.5 1440 2.2 2.2 7
MS132S-4 5.5 7.5 380/660 12/6.9 0.84 85.5 1440 2.2 2.2 7
MS132M-4 7.5 10 380/660 15/8.6 0.85 87 1440 2.2 2.2 7
MS160M-4 11 15 380/660 22.3/12.7 0.85 88 1460 2.2 2.2 7
MS160L-4 15 20 380/660 30/17.1 0.85 89 1460 2.0 2.2 7
MS180M-4 18.5 25 380/660 36.4/20.8 0.85 90.5 1470 2.2 2.2 7.5
MS180L-4 22 30 380/660 43.1/24.6 0.85 91 1470 2.2 2.2 7.5
MS90S-6 0.75 1 220/380 4.0/2.3 0.70 72.5 910 2.2 2.2 5.5
MS90L-6 1.1 1.5 220/380 5.5/3.2 0.72 73.5 910 2.2 2.2 5.5
MS100L-6 1.5 2 220/380 6.9/4.0 0.74 77.5 940 2.2 2.2 6
MS112M-6 2.2 3 220/380 9.7/5.6 0.74 80.5 940 2.2 2.2 6
MS132S-6 3 4 220/380 12.4/7.2 0.76 83 960 2.2 2.0 6.5
MS132M1-6 4 5.5 380/660 9.4/5.4 0.77 84 960 2.0 2.0 6.5
MS132M2-6 5.5 7.5 380/660 13/7.5 0.78 85.3 960 2.0 2.0 6.5
MS160M-6 7.5 10 380/660 16.5/9.43 0.80 87.5 970 2.0 2.0 6.5
MS160L-6 11 15 380/660 24.1/13.8 0.79 89 970 2.0 2.0 6.5
MS180L-6 15 20 380/660 31.5/18 0.81 86 970 2.0 2.0 7.0
MS132S-8 2.2 3 220/380 10/5.8 0.71 85.5 710 2.0 2.0 5.5
MS132M-8 3 4 220/380 13.3/7.7 0.72 82 710 2.0 2.0 5.5
MS160M1-8 4 5.5 380/660 10.2/5.8 0.73 81 720 2.0 2.0 6.0
MS180M2-8 5.5 7.5 380/660 13.6/7.8 0.74 83 720 2.0 2.0 6.0
MS160L-8 7.5 10 380/660 17.7/10.1 0.75 85.5 720 2.0 2.0 6.0
MS180L-8 11 15 380/660 25.1/14.3 0.76 87.5 730 2.0 2.0 6.5








Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
