0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps

large.img.alt
large.img.alt
video play

Large Image :  0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MYT711-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Single Phase Induction Motor Application: Swimming Pool Pump
Output: 0.75HP/0.55KW Pole: 2
Efficiency: IE1,IE2 Performance: High Reliability
Capacitor Type: Capacitor Running Phase: One Phase
High Light:

Plastic Pumps Single Phase Induction Motor

,

Single Phase Induction Motor IP44

,

ICO141 Single Phase Electric Motor

0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps



single phase induction motor



Ambient temperature: -15℃≦0≦40℃ Duty: S1(continuous)
Protection: IP44/IP54/IP55 Above sea level: not exceed 1000m
Insulation Class: B/F/H Cooling method: ICO141
Rated voltage: 220V ~240V Frequency: 50HZ/60HZ

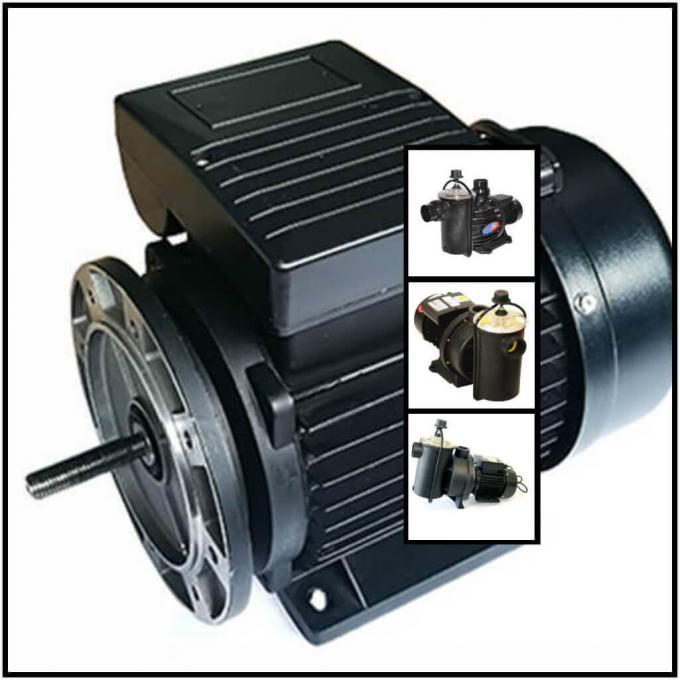

0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps 1

0.55kw plastic swimming pool pump applies to liquid circulation and filtration of Spa and bath, small size swimming pool, water treatment facility, decoration pool, etc.

1) Designed for a middle or small swimming pool. Quiet operation and high energy.
2) Designed for home pool and spa pool
3) Adopt NSK Bearings with low energy consumption and quiet operation.
4) External heat sink to deliver maximum thermal performance designed for be easy maintenance and repair.

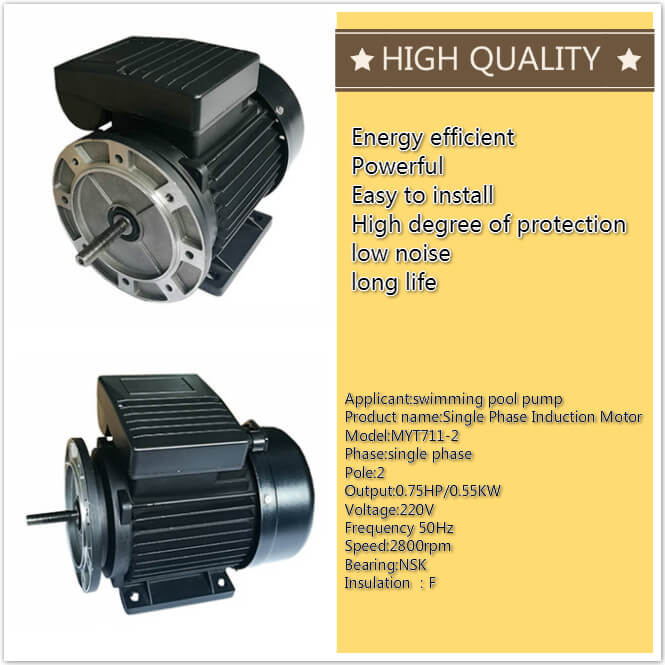

0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps 2
single phase induction motor
ZOZHI pump motor  made of selected quality material, the latest design in entirety, Good performance, low noise, slight vibration, and safety and reliable cooperation
1.100% copper wire, cold-rolled silicon steel sheet, and complimentary accessories
2. Advanced three-phase brushless motor
3. CE certificate

single phase induction motor
The swimming pool pump needs complete kits to pump body +motor. controller+panels

0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps 5


Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T Start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7


General data

Frame size 71
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 5.6 kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M18 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level


0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps 6

swimming pool pump motor





0.55kw Single Phase Induction Motor 50HZ/60HZ For Plastic Swimming Pool Pumps 8

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal


Guarantee



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
