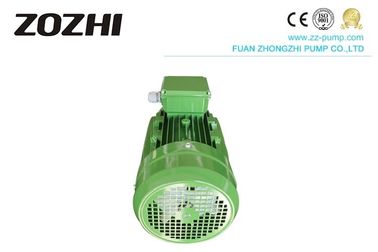

Energy Saving Induction IE2 Motor 4 Pole 3 Phase 1.1kw MS802-4 For Saw Machine
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | IE2 MS802-4 |
| Minimum Order Quantity | 1pc |
| Price | negotiated |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | T/T |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IE2 Motor | Output | 1.1kw |
|---|---|---|---|
| Voltage | 400v 60hz Low Voltage | Winding Material | 100% Copper Wire |
| Standard | IEC 2 | Housing | Aluminum |
| Pole | 4 | Phase | 3 Phase |
| High Light | high efficiency induction motor,high efficiency ac motor |
||
Product Description

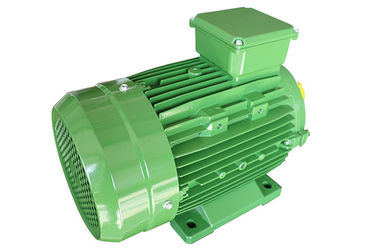

3-Phase Energy Saving Induction Motors 4 pole MS802-4 for saw machine
IE2 High-Efficiency Motor
MS Series Aluminium housing three-phase induction motors suitable for driving machines that do not have special requirements, such as saw machines, tools, pumps, blowers, etc.
| Model | Output | Voltage | Current | Speed | Eff(%) | P.F. | Ist/In | Tmax/Tn |
| (V) | (A) | (r/min) | 50%/75%/100% | |||||
| IE2 MS802-4 | 1.1KW/1.5HP | 230/400 | 4.2/2.43 | 2800 | 79.0/80.0/79.6 | 0.825 | 2.2 | 2.3 |
Electric Motor Features:
1. Type: three-phase asynchronous high torque low rpm electric motor with aluminum housing
2. Construction: enclosed, fan-cooled, squirrel cage type
3. Insulation: B/F/H class
4. Frame and housing are aluminum.
5. Advantage: perfect performance, low noise, slight vibration, reliable running, good appearance, small volume, and light-weight
Electric Motor Operating Conditions:
1. Ambient temperature: -15°C<0 < 40 °C
2. Altitude: not exceed 1000m
3. Duty/Rating: Continuous (S1)
4. Insulation class: B/F
5. Protection class: IP54/IP54
6. Cooling Method: ICO411
Production Line:
Performance chart:
| Model | Power | (V) | (A) | Speed | Eff. (%) | P.F. | Start/Tn | Ist/In | Tmax/Tn | N.W. (kg) | |||
| Kw | HP | r/min | 50% | 75% | 100% | ||||||||
| IE3 MS801-2 | 0.75 | 1 | 230/400 | 2.82/1.63 | 2820 | 79.7 | 81 | 80.7 | 0.831 | 2.3 | 6 | 2.3 | 9.5 |
| IE3 MS802-2 | 1.1 | 1.5 | 4.0/2.3 | 2820 | 81.5 | 82.9 | 82.7 | 0.836 | 2.3 | 7.5 | 2.3 | 11 | |
| IE3 MS90S-2 | 1.5 | 2 | 5.23/3.02 | 2840 | 84 | 85 | 84.2 | 0.857 | 2.4 | 7.5 | 2.4 | 15 | |
| IE3 MS90L-2 | 2.2 | 3 | 7.44/4.3 | 2840 | 86 | 86.5 | 85.9 | 0.865 | 2.4 | 7.5 | 2.4 | 18 | |
| IE3 MS100L-2 | 3 | 4 | 9.9/5.72 | 2850 | 88.2 | 87.3 | 87.1 | 0.873 | 2.4 | 8 | 2.4 | 25 | |
| IE3 MS112M-2 | 4 | 5.5 | 400/690 | 7.48/4.32 | 2870 | 88 | 88.4 | 88.1 | 0.88 | 2.4 | 8.5 | 2.4 | 28.5 |
| IE3 MS132S1-2 | 5.5 | 7.5 | 10/5.8 | 2900 | 89.1 | 89.6 | 89.2 | 0.89 | 2.2 | 7.5 | 2.4 | 41 | |
| IE3 MS132S2-2 | 7.5 | 10 | 13.5/7.8 | 2900 | 90 | 90.5 | 90.1 | 0.892 | 2.2 | 7.5 | 2.4 | 46.5 | |
| IE3 MS160M1-2 | 11 | 15 | 19.5/11.3 | 2920 | 89.8 | 91.3 | 91.2 | 0.896 | 2.2 | 8.5 | 2.4 | 81 | |
| IE3 MS160M2-2 | 15 | 20 | 26.2/15.1 | 2920 | 91.6 | 92 | 91.9 | 0.805 | 2.2 | 8.5 | 2.4 | 93 | |
| IE3 MS160L-2 | 18.5 | 25 | 31.9/18.4 | 2920 | 92.1 | 92.5 | 92.4 | 0.91 | 2.2 | 8.5 | 2.4 | 104 | |
| IE3 MS802-4 | 0.75 | 1 | 230/400 | 2.97/1.72 | 1400 | 81 | 82.7 | 82.5 | 0.77 | 2.4 | 7 | 2.4 | 12 |
| IE3 MS90S-4 | 1.1 | 1.5 | 4.25/2.45 | 1420 | 82.6 | 84.3 | 84.1 | 0.775 | 2.4 | 7.5 | 2.4 | 16 | |
| IE3 MS90L-4 | 1.5 | 2 | 5.68/3.28 | 1420 | 83.8 | 85.4 | 85.3 | 0.778 | 2.4 | 8 | 2.4 | 20 | |
| IE3 MS100L1-4 | 2.2 | 3 | 8.0/4.62 | 1440 | 84.3 | 86.7 | 86.7 | 0.798 | 2.4 | 8 | 2.4 | 26 | |
| IE3 MS100L2-4 | 3 | 4 | 10.8/6.2 | 1440 | 86 | 87.6 | 87.7 | 0.801 | 2.4 | 8 | 2.4 | 30 | |
| IE3 MS112M-4 | 4 | 5.5 | 400/690 | 7.97/4.6 | 1450 | 88.3 | 88.8 | 88.6 | 0.821 | 2.4 | 7.5 | 2.4 | 38 |
| IE3 MS132S-4 | 5.5 | 7.5 | 10.8/6.2 | 1450 | 89 | 89.7 | 89.6 | 0.825 | 2.3 | 7.5 | 2.4 | 46 | |
| IE3 MS132M-4 | 7.5 | 10 | 14.4/8.32 | 1450 | 90.1 | 90.6 | 90.4 | 0.834 | 2.3 | 7.5 | 2.4 | 54 | |
| IE3 MS160M-4 | 11 | 15 | 20.8/12.0 | 1460 | 90.5 | 91.5 | 91.4 | 0.838 | 2.2 | 7 | 2.4 | 88 | |
| IE3 MS160L-4 | 15 | 20 | 27.9/16.1 | 1460 | 91.5 | 92.5 | 92.1 | 0.847 | 2.2 | 7 | 2.4 | 103 | |
| IE3 MS90S-6 | 0.75 | 1 | 230/400 | 3.42/1.97 | 910 | 77.5 | 94.4 | 78.9 | 0.7 | 2 | 4 | 2.3 | 15 |
| IE3 MS90L-6 | 1.1 | 1.5 | 4.8/2.78 | 910 | 80.2 | 81.3 | 81 | 0.71 | 2 | 4 | 2.3 | 20 | |
| IE3 MS100L1-6 | 1.5 | 2 | 6.35/3.66 | 930 | 81.3 | 82.6 | 82.5 | 0.72 | 2 | 5 | 2.3 | 25 | |
| IE3 MS112M-6 | 2.2 | 3 | 8.98/5.2 | 940 | 83.2 | 85 | 84.3 | 0.73 | 2 | 5 | 2.3 | 30 | |
| IE3 MS132S-6 | 3 | 4 | 11.9/6.87 | 960 | 84.5 | 85.8 | 85.6 | 0.74 | 2.2 | 6.5 | 2.3 | 38.5 | |
| IE3 MS132M1-6 | 4 | 5.5 | 400/690 | 9.0/5.2 | 960 | 85.3 | 86.9 | 86.8 | 0.745 | 2.2 | 7 | 2.3 | 47.5 |
| IE3 MS132M2-6 | 5.5 | 7.5 | 12.1/7.0 | 960 | 86.9 | 88.2 | 88 | 0.75 | 2.2 | 7 | 2.3 | 58 | |
| IE3 MS160M-6 | 7.5 | 10 | 16.1/9.3 | 970 | 87.5 | 89 | 89.1 | 0.76 | 2.2 | 7 | 2.3 | 83 | |
| IE3 MS160L-6 | 11 | 15 | 22.9/13.2 | 970 | 89 | 90.2 | 90.3 | 0.77 | 2.2 | 7 | 2.3 | 99 | |
Performance comparison chart:
| ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM | ||||
| Power(kw) | eff2 (nominal) | eff1 (nominal) | IE2 (nominal) | IE3 (nominal) |
| 0.75 | - | - | 79.6 | 82.5 |
| 1.1 | 76.2 | 83.8 | 81.4 | 84.1 |
| 1.5 | 78.5 | 85.0 | 82.8 | 85.3 |
| 2.2 | 81 | 86.4 | 84.3 | 86.7 |
| 3.0 | 82.6 | 87.4 | 85.5 | 87.7 |
| 4.0 | 84.2 | 88.3 | 86.6 | 88.6 |
| 5.5 | 85.7 | 89.2 | 87.7 | 89.6 |
| 7.5 | 87 | 90.1 | 88.7 | 90.4 |
| 11 | 88.4 | 91.0 | 89.8 | 91.4 |
| 15 | 89.4 | 91.8 | 90.6 | 92.1 |
| 18.5 | 90 | 92.2 | 91.2 | 92.6 |
| 22 | 90.5 | 82.6 | 91.6 | 93.0 |
| 30 | 91.4 | 93.2 | 92.3 | 93.8 |
| 37 | 92 | 93.6 | 92.7 | 93.9 |
| 45 | 92.5 | 93.9 | 93.1 | 94.2 |
| 55 | 93 | 94.2 | 93.5 | 94.6 |
| 75 | 93.6 | 94.7 | 94.0 | 95.0 |
| 90 | 93.9 | 95.0 | 94.2 | 95.2 |
| 110 | 94.5 | 95.4 | ||
| 132 | 94.7 | 95.6 | ||
| 160 | 94.9 | 95.8 | ||
| 200...375 | 95.1 | 96.0 | ||
|
|
|
|
|
|
|
|
|
IE2 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
IE2 Motor OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
