Squirrel Cage 380v Three Phase Asynchronous Motor 750w 1hp Current Rating Electric Motor For Circular Saw
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | IE2 MS100L2-4 |
| Minimum Order Quantity | 1pc |
| Price | negotiated |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | T/T |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IE2 Motor | Output | 3KW |
|---|---|---|---|
| Voltage | 400v 60hz Low Voltage | Winding Material | 100% Copper Wire |
| Standard | IEC 2 | Housing | Aluminum |
| Pole | 4 | Phase | 3 Phase |
| Highlight | high efficiency induction motor,high efficiency ac motor |
||
Product Description

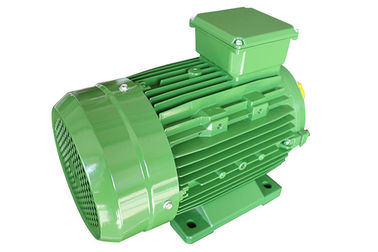

Squirrel cage 380v three-phase asynchronous motor 750w 1hp current rating electric motor for circular saw
IE2 High-Efficiency Motor
It is a Squirrel cage motor with a three-phase asynchronous motor, using a voltage is 380V. It has good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently. Also, with low noises, slight vibration, and at the same time lightweight and simple construction, these motors can be used for the general drive, for example, circular saw.
Model:IE2 MS100L2-4
Output:3KW/4HP
Voltage :230/400
Frequency: 50Hz
Current:11.32/6.54
Speed:1420rpm
Insulation class: F
PERFORMANCE CHART:
Performance comparison chart:
| ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM | ||||
| Power(kw) | eff2 (nominal) | eff1 (nominal) | IE2 (nominal) | IE3 (nominal) |
| 0.75 | - | - | 79.6 | 82.5 |
| 1.1 | 76.2 | 83.8 | 81.4 | 84.1 |
| 1.5 | 78.5 | 85.0 | 82.8 | 85.3 |
| 2.2 | 81 | 86.4 | 84.3 | 86.7 |
| 3.0 | 82.6 | 87.4 | 85.5 | 87.7 |
| 4.0 | 84.2 | 88.3 | 86.6 | 88.6 |
| 5.5 | 85.7 | 89.2 | 87.7 | 89.6 |
| 7.5 | 87 | 90.1 | 88.7 | 90.4 |
| 11 | 88.4 | 91.0 | 89.8 | 91.4 |
| 15 | 89.4 | 91.8 | 90.6 | 92.1 |
| 18.5 | 90 | 92.2 | 91.2 | 92.6 |
| 22 | 90.5 | 82.6 | 91.6 | 93.0 |
| 30 | 91.4 | 93.2 | 92.3 | 93.8 |
| 37 | 92 | 93.6 | 92.7 | 93.9 |
| 45 | 92.5 | 93.9 | 93.1 | 94.2 |
| 55 | 93 | 94.2 | 93.5 | 94.6 |
| 75 | 93.6 | 94.7 | 94.0 | 95.0 |
| 90 | 93.9 | 95.0 | 94.2 | 95.2 |
| 110 | 94.5 | 95.4 | ||
| 132 | 94.7 | 95.6 | ||
| 160 | 94.9 | 95.8 | ||
| 200...375 | 95.1 | 96.0 | ||
IE2 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
IE2 Motor OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
