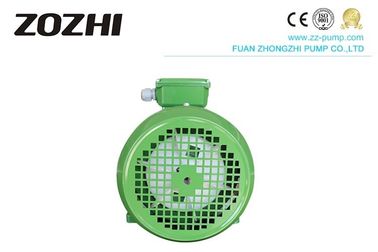

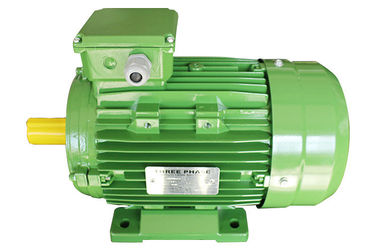

Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE2 MS801-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IE2 Motor Output 0.75KW
Voltage 230/400V/60HZ Winding Material 100% Copper Wire
Standard IEC 2 Housing Aluminum
Pole 2 Phase 3 Phase
High Light

high efficiency induction motor

,

high efficiency ac motor

Leave a Message
Product Description

Aluminum case 3-phase asynchronous motor 100% copper wire 1400rpm 0.75kw

IE2 High-Efficiency Motor



MS series three-phase asynchronous motors with aluminum housing adopted 100% copper and high-quality material. It conforms with the IEC34-1 standards. It has good features: perfect performance, low noise, slight vibration, reliable running, good appearance, small volume, and lightweight.


Model Output Voltage Current Speed Eff(%) P.F. Ist/In Tmax/Tn
(V) (A) (r/min) 50%/75%/100%
IE2 MS801-2 0.75KW/1HP 230/400 3.0/1.73 2800 76.5/77.3/77.4 0.813 2.2 2.3



IE MOTOR






PERFORMANCE CHART:

Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 1
Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 2
Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 3

Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110     94.5 95.4
132     94.7 95.6
160     94.9 95.8
200...375     95.1 96.0





Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 4

hollow shaft motor aluminium housing motor Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 7
Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 8 Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 9 Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 10
Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 11 Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 12 Aluminum Case 3 Phase Asynchronous Motor 100% Copper Wire 1400rpm 0.75kw 2 Poles 13



IE2 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
