ZOZHI One Phase AC Induction Motor Capacitor Running For 1.1kw 1.5Hp Pool Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Phase Induction Motor | Application | Swimming Pool Pump |
|---|---|---|---|
| Output | 1.5HP/1.1KW | Pole | 2 |
| Efficiency | IE1,IE2 | Performance | High Reliability |
| Capacitor Type | Capacitor Running | Phase | One Phase |
| High Light | single phase capacitor start motor,single phase asynchronous motor |
||
Product Description

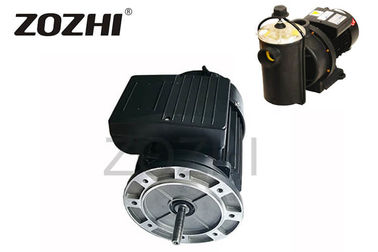

ZOZHI One Phase AC Induction Motor Capacitor Running For 1.1kw 1.5Hp Pool Pump
Single Phase Induction Motor
- Motor model: MYT801-2
- Power:1.5HP/1.1KW
- Voltage(V) : 240V /50HZ ( 220V available)
- Protection:IP44/IP54/IP55
- Insulation Class:B/F/H
- Ambient temperature:-15℃≦0≦40℃
ZOZHI pool pump motor is designed for cleaning the swimming pool. They are suitable to transfer high volumes of water (not exceeding 45 degrees) against the low head.
Used for swimming pool, spa, aquaculture, or other water pools circulation and filtration.
Imported bearing
Full power motor
The leading quality of the domestic market, working high efficiency, stable and quiet, government project quality standard, reliable and trustable
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | Tstart/Tn | Tmax/Tn | |||||||||||||
| HP | KW | |||||||||||||||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 | ||||||||||||
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||||||||||||||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||||||||||||||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 | ||||||||||||||
General data
| Frame size | 71 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 5.6 kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M18 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions | |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |
1.Locate the pump as close as possible to the pool.
2.The pump suction line should not be smaller than the pressure line. All piping must be airtight
3.The threads on the pump must be sealed with Teflon Tape or Silicon when the pump unions are screwed on.
4.The weight of the piping should be supported independently and not carried by the pump.
5.Fill the pump tank with water before starting.
6.High suction lifts, or long suction lines, require additional time and reduce the pump's performance.
7.The water being pumped cools and lubricates the seal.
8.After the pump tank has been filled with water and the motor started, allow a few moments for the pump to start delivering water.
Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
