230v 50hz Single Phase Electric Motor 0.75kw For Swimming / Spa Pool Motors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Single Phase Induction Motor | Application | Swimming Pool Pump |
---|---|---|---|
Output | 1HP/0.75KW | Pole | 2 |
Efficiency | IE1,IE2 | Performance | High Reliability |
Capacitor Type | Capacitor Running | Phase | One Phase |
High Light | single phase capacitor start motor,single phase asynchronous motor |

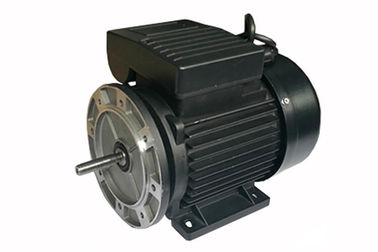

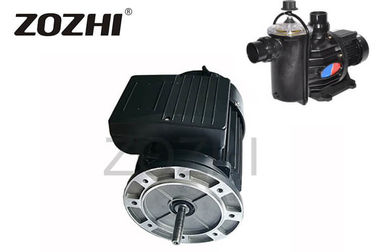

230v 50hz Single Phase Electric Motor 0.75kw For Swimming / Spa Pool Motors
Single Phase Induction Motor
DESCRIPTION
MYT712-2 1HP/0.75KW swimming and spa pool motor for swimming pool pump suitable for water recirculation and filtration for SPA and hot tubs, small and medium-sized swimming pools.
Model:MYT712-2
Power:0.75kw/1HP
Ambient temperature:-15℃≦0≦40℃
Protection:IP54
Insulation Class:B
Rated voltage:220V
Frequeny:50HZ
Speed:2800Rpm
PRODUCT SHOW
TECHNICAL DATA
Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | Tstart/Tn | Tmax/Tn | |||||||||||||
HP | KW | |||||||||||||||||||||
MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 | ||||||||||||
MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||||||||||||||
MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||||||||||||||
MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
General data
Frame size | 71 |
Housing material | Aluminum |
Install model | According to the standard |
Type of feet | Removable feet |
Net weight | 6.95 kg |
Insulation class | FH(Standard)(Optional) |
Protection degree | IP 55IP 56(Standard)(Optional) |
Thermal protection | WithoutCustomizable(Standard)(Optional) |
Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
Service duty | S1 |
Vibration level | A |
Balance | Half-key balanced |
Cable glands | 1 - M18 × 1.5 |
Cooling | IC 411 |
Painting color | RAL 7024Customizable(Standard)(Optional) |
Regulations | IEC / DIN / ISO / VDE / EN |
Standard | IEC 60034 |
Environmental conditions | |
Ambient temperature | From -20°C to +40°C |
Maximum altitude | 1000 m above sea level |
APPLICATION
A Single-phase induction motor is for swimming pool pumps with a strainer basket in its entrance. This particular design is suitable for filtering swimming pool water. It can remove the dirt from the pool water and keep the water of good quality.
For filtering of swimming pool water. It can remove the dirt from the pool water and keep the water of good quality.
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
