Ac Induction Electric Single Phase Induction Motor For Above Ground Pool Pump / Sauna
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Phase Induction Motor | Application | Swimming Pool Pump |
|---|---|---|---|
| Output | 1HP/0.75KW | Pole | 2 |
| Efficiency | IE1,IE2 | Performance | High Reliability |
| Capacitor Type | Capacitor Running | Phase | One Phase |
| High Light | single phase capacitor start motor,single phase asynchronous motor |
||
Product Description

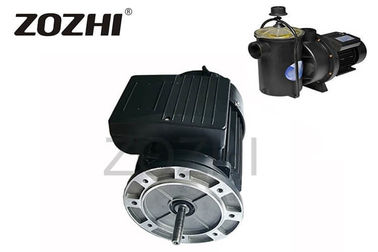

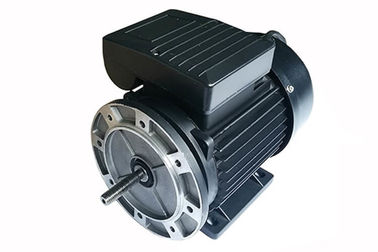

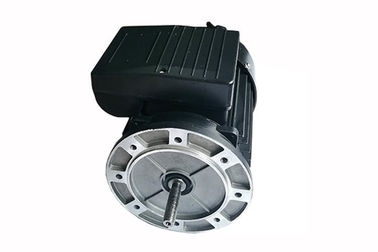

Ac Induction Electric Single Phase Induction Motor For Above Ground Pool Pump / Sauna
Single Phase Induction Motor
Ac Induction Electric Motor For Above Ground Pool Pump & Sauna. This pump motor is used for water circulation in small and medium-sized swimming pools. Slightly dirty water with solids in suspension can be perfectly filtered. It can also work in pond circulation, preferable those not run 24/7
Specifications
- Motor model: MYT712-2
- Power:1HP/0.75KW
- Voltage(V) : 220V /560HZ
- Protection:IP44/IP54/IP55
- Insulation Class:B/F/H
- Ambient temperature:-15℃≦0≦40℃
PERFORMANCE CHART
| Model | MYT712-2 | Power: | 1HP/0.75KW |
| Ambient temperature: | -15℃≦0≦40℃ | Duty: | S1(continuous) |
| Protection: | IP44/IP54/IP55 | Above sea level: | not exceed 1000m |
| Insulation Class: | B/F/H | Cooling method: | ICO141 |
| Rated voltage: | 220V ~240V | Frequency: | 50HZ/60HZ |
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | T start /Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
Application
The pool pump with quality motor is an excellent choice for swimming pools, garden ponds, and spas, serving as a part of the circulation system to keep the water clean.
The see-through filter lid allows you to check whether the strainer filter is complete, and you could easily take out the strainer basket from the pump for debris-tipping and cleaning. Thanks to the powerful engine, this pump is highly robust and can work efficiently with little noise.
| General data | |
| Frame size | 71 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 6.95 kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M18 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions | |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |
Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
