Screw Thread Single Phase Asynchronous Motor Swimming Pool Pumps Shaft Applied
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Phase Induction Motor | Application | Swimming Pool Pump |
|---|---|---|---|
| Output | 2HP/1.5KW | Pole | 2 |
| Efficiency | IE1,IE2 | Performance | High Reliability |
| Capacitor Type | Capacitor Running | Phase | One Phase |
| High Light | single phase electric motor,single phase capacitor start motor |
||
Product Description

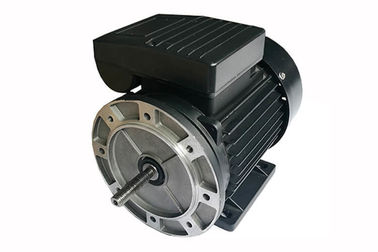

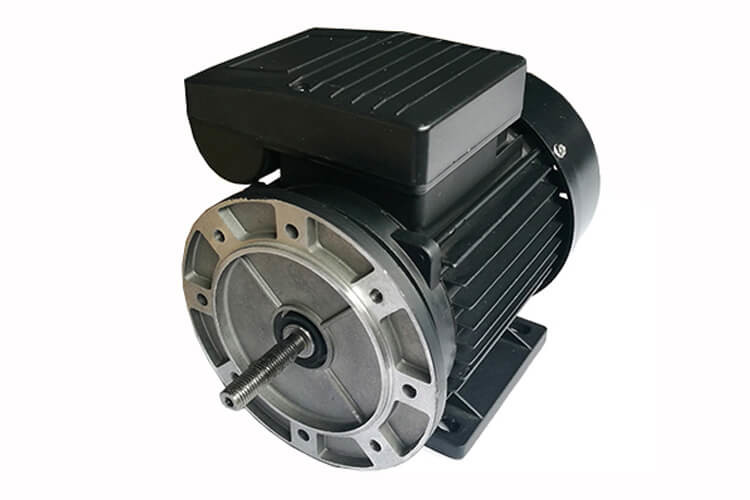

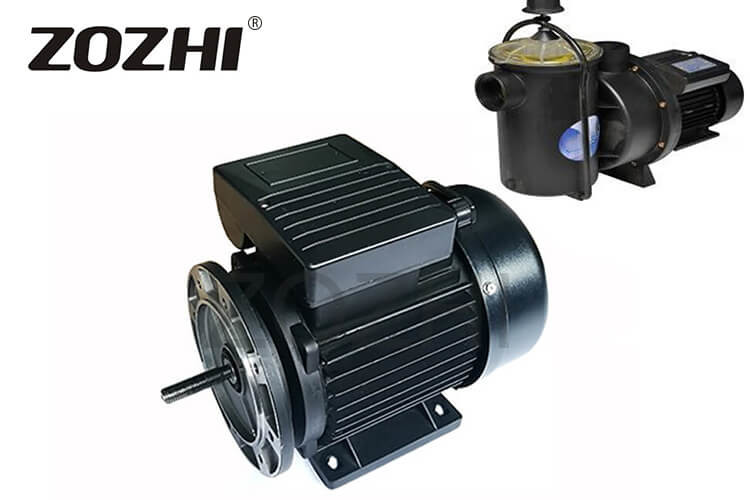

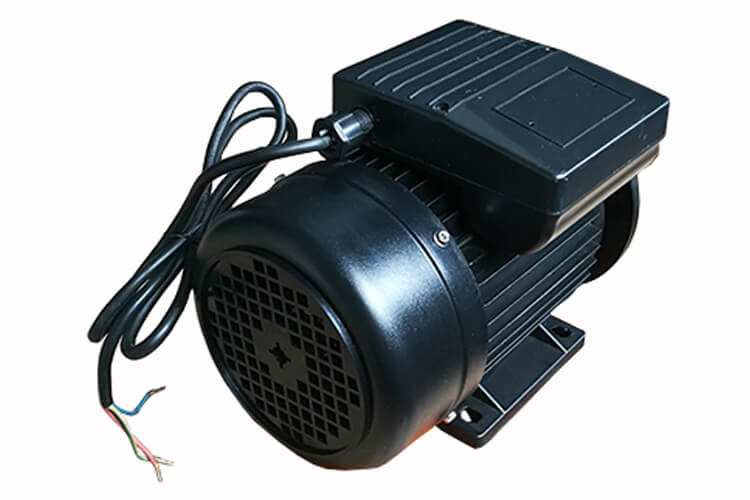

Screw Thread Single Phase Asynchronous Motor Swimming Pool Pumps Shaft Applied
Single Phase Induction Motor
Single Phase Induction Motor For Swimming Pool Pumps shaft with screw thread uses water circulation in all kinds of small domestic swimming pools. It can be slightly dirty water with solids in suspension that can be perfectly filtered.
ZOZHI induction motor used for water circulation in swimming pool filtration systems;
Pumping clean water or light sewage with suspended particles
1. Energy-saving and environment-protected green products
2. High technique products adopting MPPT and DSP chip technique
3. 100% copper wire, cold-rolled silicon steel sheet, and complimentary accessories
4. CE certificate
| Basic Data | ||
| NO | Brand Name: | ZOZHI |
| 1 | Applicant: | swimming pool pump |
| 2 | Product name: | Single-phase induction motor |
| 3 | Model: | MYT802-2 |
| 4 | Phase: | Single Phase |
| 5 | Pole: | 2 |
| 6 | Output: | 1.5KW/2HP |
| 7 | Voltage: | 220V |
| 8 | Frequency: | 50Hz |
| 9 | Wire: | 100% copper |
| 10 | Speed: | 2800rpm |
| 11 | Bearing: | C&U or Nsk |
| 12 | Insulation: | Class B/F/H |
| 13 | Protection Class: | IP55/54 |
| 14 | Mounting Type: | B3, B5, B35, etc |
General data
| Frame size | 80 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 11 kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M20 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions | |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |
Guarantee
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Our service
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
