Electric Premium Efficiency IE3 Motor Three Phase 6 Pole 1.1kw With Cast Iron Housing

China Electric Premium Efficiency IE3 Motor Three Phase 6 Pole 1.1kw With Cast Iron Housing supplier

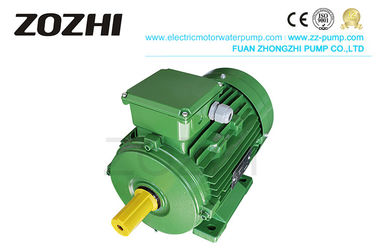

Large Image :  Electric Premium Efficiency IE3 Motor Three Phase 6 Pole 1.1kw With Cast Iron Housing

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3 MS90L-6

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Body Material: Cast Iron
Output: 1.1kw Pole: 6
Protection Class: IP54 Frequency: 60Hz
Rated Voltage: 400V Insulation Class: B
Efficiency Class: IE3 Output Speed: 910



three phase electric Premium efficiency motor with cast iron housing 6 pole 1.1kw







IE3 premium efficiency motors on YouTuBe





three-phase premium efficiency motor is our country's international industrial developed country advanced experience, and the development and design of the latest generation of three-phase asynchronous motor products. Every performance index has reached the international advanced level in the 90 s.





Features:

* Low noise

* lower temperature raising and starting current

* higher starting torque

* high efficiency and reliable

* Energy saving

* easy maintenance



Basic Data
No. Brand Name: ZOZHI
1 Model Number: IE3 MS90L-6
2 Place of Origin: FUAN, China (mainland)
3 Insulation Class: Class B
4 Frequency: 50HZ
5 Output Power: 1.1KW/1.5HP
6 Phase: Three Phase
7 Wire: 100% copper
8 Duty: S1 (continuous)
9 Certification: ISO, SABS, CE
10 Protect Feature: Totally Enclosed
11 AC Voltage: 380V or on request
12 Ambient temperature: -15°C≤0≤40°C
13 Altitude: Not exceed 1000m
14 Mounting Type: B35
15 Standard: Conform to IEC international standard
16 Installation: we will send detailed instructions together with the Motors
17 Packaging Details: Packed with export requirements protect the motors and convenient for transport.
18 Delivery Details: 25-30 Days


Performance Chart:



Model Power (V) (A) Speed Eff.(%) P.F. Tstart/Tn Ist/In Tmax/Tn N.W. (kg)
Kw HP r/min 50% 75% 100%
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.7 2 4 2.3 15
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81 0.71 2 4 2.3 20
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.72 2 5 2.3 25
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85 84.3 0.73 2 5 2.3 30
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.74 2.2 6.5 2.3 38.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7 2.3 47.5
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88 0.75 2.2 7 2.3 58
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89 89.1 0.76 2.2 7 2.3 83
IE3 MS160L-6 11 15 22.9/13.2 970 89 90.2 90.3 0.77 2.2 7 2.3 99


Electric Premium Efficiency IE3 Motor Three Phase 6 Pole 1.1kw With Cast Iron Housing



Electric Premium Efficiency IE3 Motor Three Phase 6 Pole 1.1kw With Cast Iron Housing

Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-6POLES 1000 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 75.9 78.9
1.1 - - 78.1 81.0
1.5 - - 79.8 82.5
2.2 - - 81.8 84.3
3.0 - - 83.3 85.6
4.0 - - 84.6 86.8
5.5 - - 86.0 88.0
7.5 - - 87.2 89.1
11 - - 88.7 90.3
15 - - 89.7 91.2
18.5 - - 90.4 91.7
22 - - 90.9 92.2
30 - - 91.7 92.9
37 - - 92.2 93.3
45 - - 92.7 93.7
55 - - 93.1 94.1
75 - - 93.7 94.6
90 - - 94.0 94.9
110 - - 94.3 95.1
132 - - 94.6 95.4
160 - - 94.8 95.6
200...375 - - 95.0 95.8





Electric Premium Efficiency IE3 Motor Three Phase 6 Pole 1.1kw With Cast Iron Housing

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal



Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of brand.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
