Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage

China Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage supplier
Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage supplier Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage supplier Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage supplier

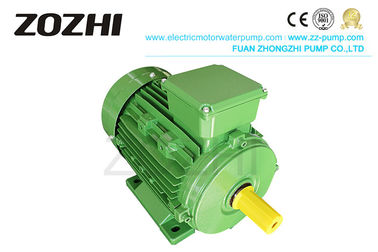

Large Image :  Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE2 MS100L2-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IE2 Motor Output: 3KW
Voltage: 400v 60hz Low Voltage Winding Material: 100% Copper Wire
Standard: IEC 2 Housing: Aluminum
Pole: 4 Phase: 3 Phase

3 phase asynchronous high efficiency electric motor low speed ac motor squirrel cage





IE2 High Efficiency Motor

The new  IE2 motors (High Efficiency) enable high energy savings and contribute to environmental friendliness.



The modular design concept offers a high degree of flexibility: each motor is based on a uniform concept that applies to all world markets.



The standard electric motors are asynchronous closed type, with external ventilation and squirrel cage rotor.




Model Output Voltage Current Speed Eff(%) P.F. Ist/In Tmax/Tn
(V) (A) (r/min) 50%/75%/100%
IE2 MS100L2-4 3KW/4HP 230/400 11.32/6.54 1420 84.2/85.7/85.5 0.778 2.2 2.3

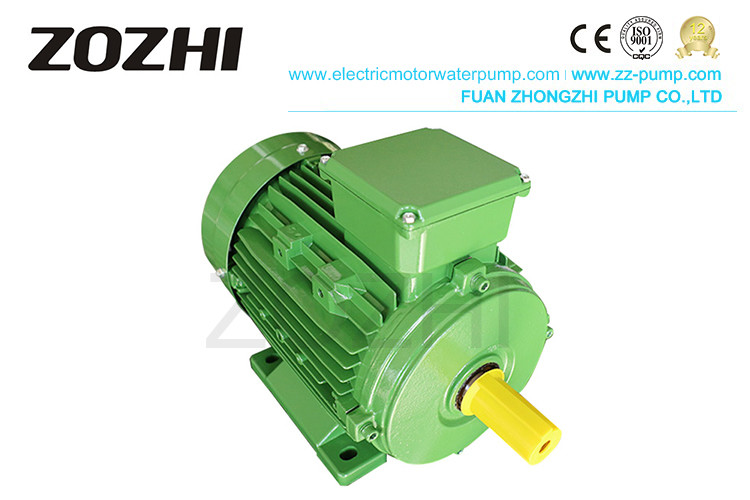

Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage



Ambient temperature: -15celsius< 0< 40celsius

Altitude: Altitude should be lower than 1000meters above sea level.

Rated voltage: 230/400V Rated frequency: 50Hz

Insulation class: F, the temperature rise of the stator winding is examined at 80K(by resistance method).

Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.

Cooling method: IC0141.

Duty/Rating: Conntinuous(S1).

If the motor of which the frequency, voltage and connection are specially, please stale when ordering

Any requirement, please feel free to contact me, we can make products according your specs and supply the competition price.



PERFORMANCE CHART:

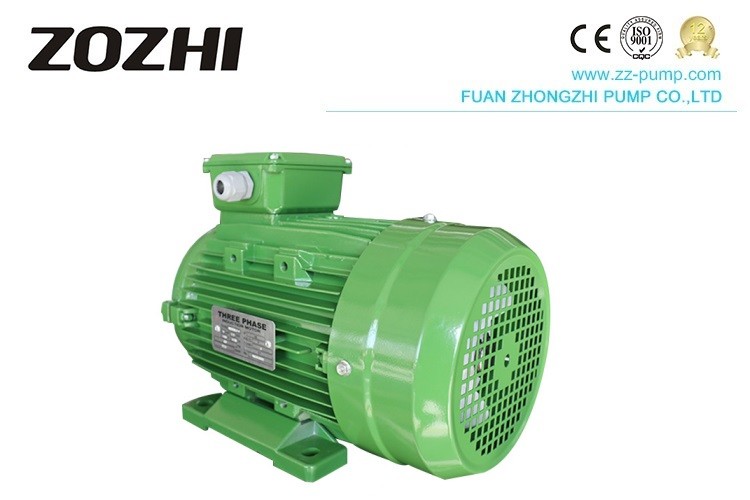

Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage

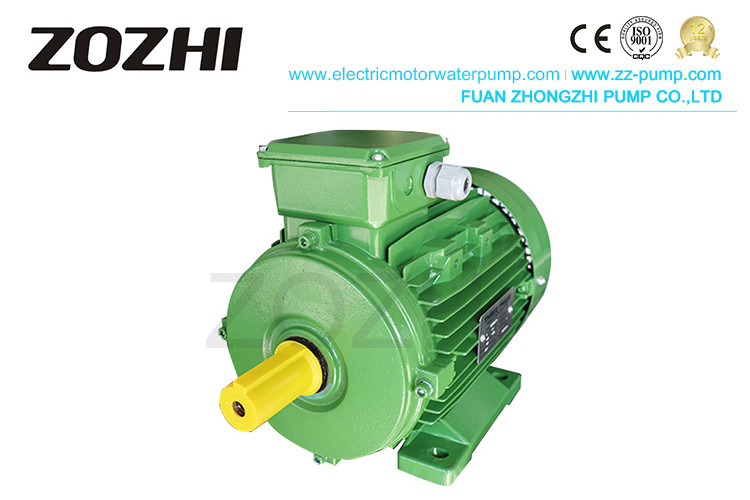

Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage

Asynchronous Three Phase Induction Motor High Efficiency Low Speed Ac Squirrel Cage

Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110     94.5 95.4
132     94.7 95.6
160     94.9 95.8
200...375     95.1 96.0

GUARANTEE:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
