Jet Pump Water Parts Automatic Pressure Activated Switch 1Mpa 1" Male Connection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMax. Voltage | 220-240V | Frequency | 50/60HZ |
---|---|---|---|
Max. Current | 10A | Max. Working Pressure | 1Mpa(10bar) |
Application | Water Pump | Max Ambient Temperature | 60 ℃ |
Protection Degree | IP65 | ||
High Light | ac generator parts,alternator generator parts |
Jet Pump Water Easy Spare Parts Automatic Pressure Activated Switch
DESCRIPTION:
1. Electric switch used in water systems
2. Start and stop the water pump automatically according to the pressure and water storage. It starts the electric pump automatically after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closed). Stop the water pump in the case of a water shortage.
TECHNICAL DATA:
Item Name | water pump automatic pressure sensor switch |
Max Rated Current | 10A |
Max Allowable Pressure | 1Mpa ( 10bar ) |
Rated Voltage | 220V-240V |
Frequency | 50/60HZ |
Max Ambient Temperature | 60 ℃ |
Connection | 1" male |
Protection Degree | IP65 |
Max Power | 1.1KW |
Logo Custom | Custom |
FEATURE:
1. It has the features of stable performance, low maintenance, and long life, etc,
2. Completely replaced the complicated traditional pump control system composed of pressure gauge, pressure switch, T-valve, check valve, and pressure tank
ADVANTAGE:
1. Instead of the conventional tank systems.
2. Start and stop the pump according to the switch tap.
3. Maintain a constant water pressure during the water supply period, that is, the speed of the water flow is substantially constant.
4. Stop the pump in the absence of water, to ensure that the pump does not idle in the absence of water.
5. Reduce the impact of water hammer

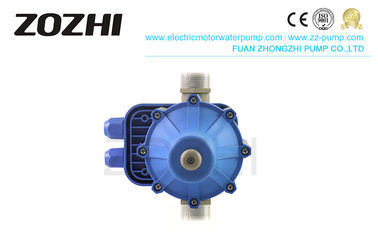

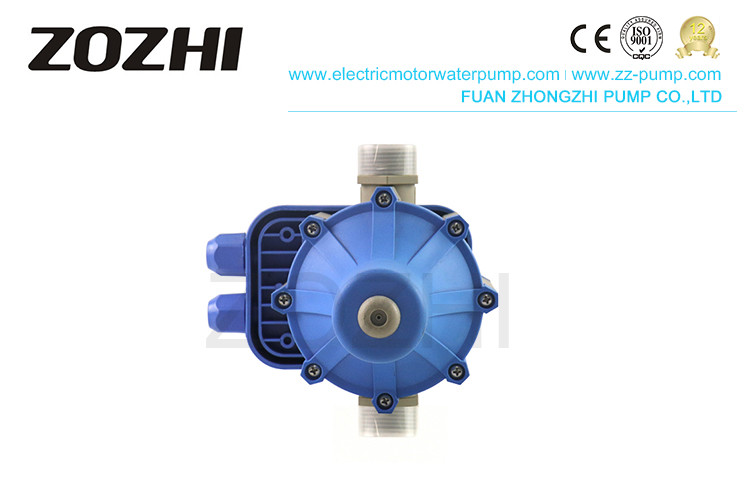

PRODUCE PICTURE:
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
