High Efficiency IE2 Motor 100% Copper Wire Winding Material 0.75kw Output

China High Efficiency IE2 Motor 100% Copper Wire Winding Material 0.75kw Output supplier

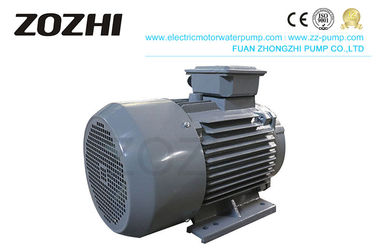

Large Image :  High Efficiency IE2 Motor 100% Copper Wire Winding Material 0.75kw Output

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE2-801-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IE2 Motor Output: 0.75KW
Voltage: 400V Winding Material: 100% Copper Wire
Standard: IEC 2 Housing: Cast Iron
Pole: 2 Phase: 3 Phase

IE2 High Efficiency Motors ,IE2 Standard Motor Efficiency Tables







IE2 High Efficiency motor

* Model: IE2-801-2

*Output: 0.75HP

*Voltage:400V/60HZ

*Ambient temperature: -15celsius< 0< 40celsius

*Altitude: Altitude should be lower than 1000meters above sea level.

*Duty/Rating: Conntinuous(S1).

*rotection class: The main body of the motor is IP54, but the terminal box reaches IP55.

If the motor of which the frequency, voltage and connection are specially, please stale when ordering.

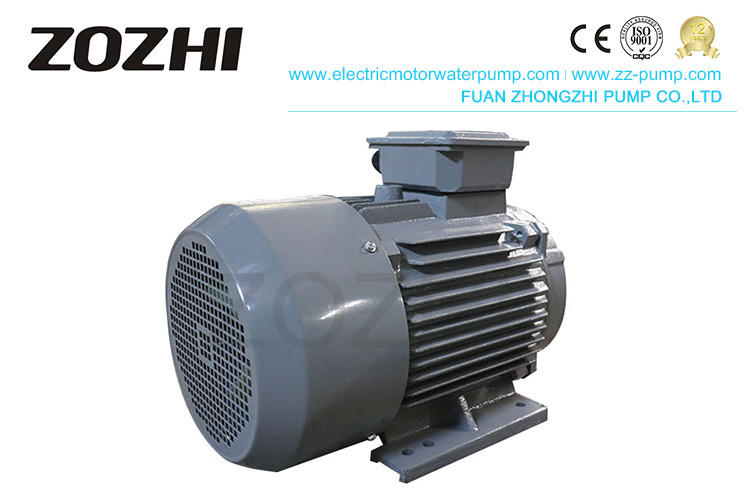

High Efficiency IE2 Motor 100% Copper Wire Winding Material 0.75kw Output


PERFORMANCE CHART:

Technical data
NO. Type   Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise LwdB Voltage
kW r/min A % cosφ (A) V
1 IE2-801-2 0.75 2850 1.7 77.4 0.82 2.3 6.8 2.3 62 400
2 IE2-802-2 1.1 2870 2.4 79.6 0.83 2.3 7.1 2.3 62 400
3 IE2-90S-2 1.5 2880 3.2 81.3 0.84 2.3 7.3 2.3 67 400
4 IE2-90L-2 2.2 2880 4.5 83.2 0.85 2.3 7.6 2.3 67 400
5 IE2-100L1-2 3 2880 5.9 84.6 0.87 2.2 7.8 2.3 74 400
6 IE2-112M-2 4 2900 7.6 85.8 0.88 2.3 8.1 2.3 77 400
7 IE2-132S1-2 5.5 2910 10.4 87 0.88 2.2 8.2 2.3 79 400
8 IE2-132S2-2 7.5 2910 13.8 88.1 0.89 2.2 7.8 2.3 79 400
9 IE2-160M1-2 11 2940 20 89.4 0.89 2.2 7.9 2.3 81 400
10 IE2-160M2-2 15 2940 26.9 90.3 0.89 2.2 8 2.3 81 400
11 IE2-160L-2 18.5 2940 33 90.9 0.89 2.2 8 2.3 81 400
12 IE2-180M-2 22 2950 39.1 91.3 0.89 2.2 8.1 2.3 83 400
13 IE2-200L1-2 30 2960 52.9 92 0.89 2 7.5 2.3 84 400
14 IE2-200L2-2 37 2960 64.9 92.5 0.89 2 7.5 2.3 84 400
15 IE2-225M-2 45 2960 78.6 92.9 0.89 2.2 7.5 2.3 86 400
16 IE2-250M-2 55 2970 96 93.2 0.89 2.2 7.6 2.3 89 400
17 IE2-280S-2 75 2975 130 93.8 0.89 2 6.9 2.3 91 400
18 IE2-280M-2 90 2975 155 94.1 0.89 2 6.9 2.3 91 400
19 IE2-315S-2 110 2975 187 94.3 0.9 2 7 2.2 92 400
20 IE2-315M-2 132 2975 224 94.6 0.9 2 7 2.2 92 400
21 IE2-315L1-2 160 2975 268 94.8 0.91 2 7.1 2.2 92 400
22 IE2-315L2-2 200 2975 334 95 0.91 2 7.1 2.2 92 400
23 IE2-355M-2 250 2980 418 95 0.91 1.6 7.1 2.2 100 400
24 IE2-355L-2 315 2980 526 95 0.91 1.6 7.2 2.2 100 400
25 IE2-802-4 0.75 1420 1.8 79.6 0.76 2.3 6.4 2.3 56 400
26 IE2-90S-4 1.1 1420 2.6 81.4 0.77 2.3 6.6 2.3 59 400
27 IE2-90L-4 1.5 1420 3.5 82.8 0.78 2.3 6.7 2.3 59 400
28 IE2-100L1-4 2.2 1440 4.7 84.3 0.8 2.3 7.3 2.3 64 400
29 IE2-100L2-4 3 1440 6.2 85.5 0.81 2.3 7.5 2.3 64 400
30 IE2-112M-4 4 1445 8.1 86.6 0.81 2.3 7.5 2.3 65 400
31 IE2-132S-4 5.5 1450 11.1 87.7 0.82 2 7.5 2.3 71 400
32 IE2-132M-4 7.5 1450 14.7 88.7 0.83 2 7.3 2.3 71 400
33 IE2-160M-4 11 1470 21.3 89.8 0.83 2.2 7.4 2.3 73 400
34 IE2-160L-4 15 1470 28.4 90.6 0.84 2.2 7.5 2.3 73 400
35 IE2-180M-4 18.5 1470 34.4 91.2 0.85 2.2 7.6 2.3 76 400
36 IE2-180L-4 22 1470 40.8 91.6 0.85 2.2 7.7 2.3 76 400
37 IE2-200L-4 30 1470 55.2 92.3 0.85 2.2 7.1 2.3 76 400
38 IE2-225S-4 37 1480 67 92.7 0.86 2.2 7.3 2.3 78 400
39 IE2-225M-4 45 1480 81.1 93.1 0.86 2.2 7.3 2.3 78 400
40 IE2-250M-4 55 1480 99 93.5 0.86 2.2 7.3 2.3 79 400
41 IE2-280S-4 75 1480 132 94 0.87 2.2 6.8 2.3 80 400
42 IE2-280M-4 90 1480 157 94.2 0.88 2.2 6.9 2.3 80 400
43 IE2-315S-4 110 1480 189 94.5 0.89 2.1 6.9 2.2 88 400
44 IE2-315M-4 132 1480 226 94.7 0.89 2.1 6.9 2.2 88 400
45 IE2-315L1-4 160 1480 270 94.9 0.9 2.2 6.9 2.2 88 400
46 IE2-315L2-4 200 1480 337 95.1 0.9 2.1 6.9 2.2 88 400
47 IE2-355M-4 250 1490 422 95.1 0.9 2.1 6.9 2.2 95 400
48 IE2-355L-4 315 1490 531 95.1 0.9 2.1 6.9 2.2 95 400
49 IE2-90S-6 0.75 930 2 75.9 0.71 2 5.8 2.1 57 400
50 IE2-90L-6 1.1 930 2.8 78.1 0.72 2 5.9 2.1 57 400
51 IE2-100L1-6 1.5 930 3.7 79.8 0.72 2 5.9 2.1 61 400
52 IE2-112M-6 2.2 945 5.4 81.8 0.72 2.1 6.2 2.1 65 400
53 IE2-132S-6 3 960 7.1 83.3 0.72 2 6.4 2.1 69 400
54 IE2-132M1-6 4 965 9.2 84.6 0.74 2 6.6 2.1 69 400
55 IE2-132M2-6 5.5 965 12.3 86 0.75 2 6.8 2.1 69 400
56 IE2-160M-6 7.5 970 15.9 87.2 0.78 2.1 6.8 2.1 73 400
57 IE2-160L-6 11 970 22.7 88.7 0.79 2.1 6.9 2.1 73 400
58 IE2-180L-6 15 980 29.8 89.7 0.81 2 7.3 2.1 73 400
59 IE2-200L1-6 18.5 980 36.5 90.4 0.81 2.1 7.2 2.1 73 400
60 IE2-200L2-6 22 980 43.1 90.9 0.81 2.1 7.3 2.1 73 400
61 IE2-225M-6 30 980 57.6 91.7 0.82 2 6.8 2.1 74 400
62 IE2-250M-6 37 980 69.8 92.2 0.83 2.1 7 2.1 76 400
63 IE2-280S-6 45 980 82 92.7 0.85 2.1 7.2 2 78 400
64 IE2-280M-6 55 980 100 93.1 0.85 2.1 7.2 2 78 400
65 IE2-315S-6 75 990 136 93.7 0.85 2 6.5 2 83 400
66 IE2-315S-6 90 990 163 94 0.85 2 6.6 2 83 400
67 IE2-315M-6 110 990 198 94.3 0.85 2 6.6 2 83 400
68 IE2-315L1-6 132 990 234 94.6 0.86 2 6.6 2 83 400
69 IE2-315L2-6 160 990 283 94.8 0.86 1.9 6.7 2 85 400
70 IE2-355M2-6 200 990 353 95 0.86 2 6.8 2 85 400
71 IE2-355L-6 250 990 442 95 0.86 2 6.8 2 85 400



High Efficiency IE2 Motor 100% Copper Wire Winding Material 0.75kw Output

High Efficiency IE2 Motor 100% Copper Wire Winding Material 0.75kw Output





GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
