Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor

China Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor supplier

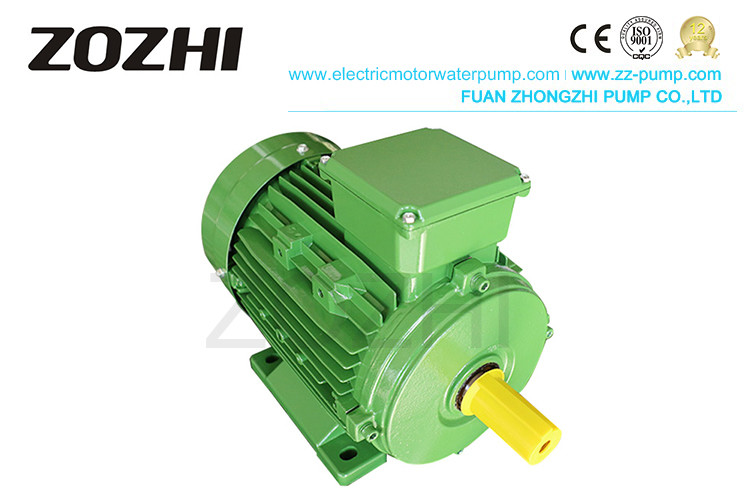

Large Image :  Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3 MS801-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Body Material: Aluminium
Output: 0.75kw/1HP Pole: 2
Protection Class: IP54 Frequency: 60Hz
Rated Voltage: 230/400V Insulation Class: B
Efficiency Class: IE3 Output Speed: 2890



Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor​



IE3 premium efficiency motors on YouTuBe



 IE3-Premium Efficiency Motor

Model IE3 MS801-2 Frame size 80
Duty S1 Rated power 0.75KW/1HP
Ambient temperature -20~40 Rated voltage 400V
Frequency 60HZ Protection class IP55
Phase 3 Pole 2P
Insulation Class B,F Efficiency IE3




Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor



Features:

* Low noise

* lower temperature raising and starting current

* higher starting torque

* high efficiency and reliable operation

* energy saving

* easy maintenance



APPLICATIONS:

Pumps

Waste water treatment plants

Air compressors,fans

Gear reducers and power transmission

Pulp and paper mills

Steel mill

Conveyors,elevators

Material handing equipment

Agricultural application

Mining equipment

Hydraulic equipment







Performance Chart:

Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor








Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor

Energy Saving IE3 Premium Efficiency Motors , Three Phase Asynchronous Motor

Performance comparison chart:

ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM
Power(kw) eff2 (nominal) eff1(nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 77.4 80.7
1.1 76.2 82.8 79.6 82.7
1.5 78.5 84.1 81.3 84.2
2.2 81 85.6 83.2 85.9
3.0 82.6 86.7 84.6 97.1
4.0 84.2 87.6 85.8 88.1
5.5 85.7 88.6 87.0 89.2
7.5 87 89.5 88.1 90.1
11 88.4 90.5 89.4 91.2
15 89.4 91.3 90.3 91.9
18.5 90 91.8 90.9 92.4
22 90.5 92.2 91.3 92.7
30 91.4 92.9 92.0 93.3
37 92 93.3 92.5 93.7
45 92.5 93.7 92.9 94.0
55 93 94 93.2 94.3
75 93.6 94.6 93.8 94.7
90 93.9 95 94.1 95.0
110     94.3 95.2
132     94.6 95.4
160     94.8 95.8
200...375     95 95.8





Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customer to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of brand.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
