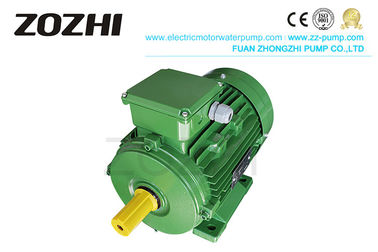

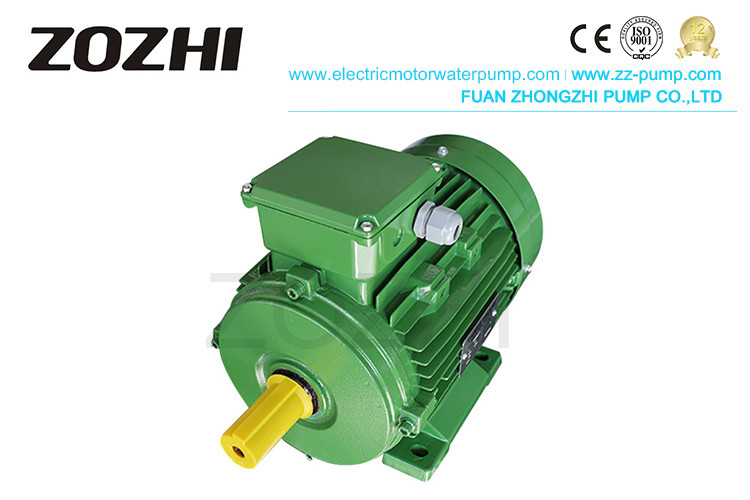

Low Noise IE3 Electric Motors Premium Efficiency 60Hz Frequency High Protection Grade
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | IE3 Premium Efficiency Motor |
Minimum Order Quantity | 1pc |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | IE3 Motor | Body Material | Cast Iron |
---|---|---|---|
Output | 0.75KW~315KW | Pole | 4 |
Protection Class | IP54 | Frequency | 60Hz |
Rated Voltage | 400V | Insulation Class | B |
Efficiency Class | IE3 | Output Speed | 2890 |
High Light | ie3 electric motors,ie3 premium efficiency motors |
IE3 Premium Efficiency Motors, What is ie1 ie2 and ie3 Motor
Frame Size: H80~H355
Rated Power Range: 0.75KW~315KW
Ambient temperature:-15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 380V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class B/ F/H
Protection Class: IP54/IP55
Duty: S1
IE3 motor has a reasonable structure, beautiful appearance, high efficiency, low noise, high protection grade, insulation grade, etc.
IE3 motor is widely used in fans, pumps, machine tools, compressors, and transport machinery, driving general-purpose machinery and equipment.
IE3 motor can also be used in place of petroleum, chemical industry, iron and steel, mining, and other relatively poor environments.
IE1: Motors with efficiency close to the old class EFF2, but a new standard for testing the motors results lower than the previous EFF2.
IE2: Motors with efficiency close to the old class EFF1, but a new standard for testing the motors results lower than the previous.
IE3: Motors with a higher efficiency level than the previous EFF1, IE3 is also called Premium Efficiency.
Performance Chart:
NO. | Type | Output | Speed | Amps | EFF. | P.F. | LRT/RLT | LRA/RLA | BDT/RLT | Noise | Voltage |
kW | r/min | (A) | % | CosΦ | LwdB(A) | V | |||||
1 | IE3-802-4 | 0.75 | 1430 | 1.75 | 82.5 | 0.75 | 2.3 | 6.6 | 2.3 | 56 | 400 |
2 | IE3-90S-4 | 1.1 | 1440 | 2.48 | 84.1 | 0.76 | 2.3 | 6.8 | 2.3 | 59 | 400 |
3 | IE3-90L-4 | 1.5 | 1440 | 3.3 | 85.3 | 0.77 | 2.3 | 7 | 2.3 | 59 | 400 |
4 | IE3-100L1-4 | 2.2 | 1455 | 4.52 | 86.7 | 0.81 | 2.3 | 7.6 | 2.3 | 64 | 400 |
5 | IE3-100L2-4 | 3 | 1455 | 6.02 | 87.7 | 0.82 | 2.3 | 7.6 | 2.3 | 64 | 400 |
6 | IE3-112M-4 | 4 | 1460 | 7.95 | 88.6 | 0.82 | 2.2 | 7.8 | 2.3 | 65 | 400 |
7 | IE3-132S-4 | 5.5 | 1470 | 10.7 | 89.6 | 0.83 | 2 | 7.9 | 2.3 | 71 | 400 |
8 | IE3-132M-4 | 7.5 | 1470 | 14.3 | 90.4 | 0.84 | 2 | 7.5 | 2.3 | 71 | 400 |
9 | IE3-160M-4 | 11 | 1470 | 20.4 | 91.4 | 0.85 | 2.2 | 7.7 | 2.3 | 73 | 400 |
10 | IE3-160L-4 | 15 | 1470 | 27.3 | 92.1 | 0.86 | 2.2 | 7.8 | 2.3 | 73 | 400 |
11 | IE3-180M-4 | 18.5 | 1475 | 33.5 | 92.6 | 0.86 | 2 | 7.8 | 2.3 | 76 | 400 |
12 | IE3-180L-4 | 22 | 1475 | 39.7 | 93 | 0.86 | 2 | 7.8 | 2.3 | 76 | 400 |
13 | IE3-200L-4 | 30 | 1480 | 53.8 | 93.6 | 0.86 | 2 | 7.8 | 2.3 | 76 | 400 |
14 | IE3-225S-4 | 37 | 1485 | 66.1 | 93.9 | 0.86 | 2 | 7.4 | 2.3 | 78 | 400 |
15 | IE3-225M-4 | 45 | 1485 | 80.2 | 94.2 | 0.86 | 2 | 7.4 | 2.3 | 78 | 400 |
16 | IE3-250M-4 | 55 | 1485 | 97.6 | 94.6 | 0.86 | 2 | 7.4 | 2.3 | 79 | 400 |
17 | IE3-280S-4 | 75 | 1485 | 129 | 95 | 0.88 | 2 | 6.9 | 2.3 | 80 | 400 |
18 | IE3-280M-4 | 90 | 1485 | 155 | 95.2 | 0.88 | 2 | 6.9 | 2.3 | 80 | 400 |
19 | IE3-315S-4 | 110 | 1485 | 187 | 95.4 | 0.89 | 2 | 7 | 2.2 | 88 | 400 |
20 | IE3-315M-4 | 132 | 1485 | 224 | 95.6 | 0.89 | 2 | 7 | 2.2 | 88 | 400 |
21 | IE3-315L1-4 | 160 | 1485 | 271 | 95.8 | 0.89 | 2 | 7.1 | 2.2 | 88 | 400 |
22 | IE3-315L2-4 | 200 | 1485 | 334 | 96 | 0.9 | 2 | 7.1 | 2.2 | 88 | 400 |
23 | IE3-355M-4 | 250 | 1490 | 418 | 96 | 0.9 | 2 | 7.1 | 2.2 | 95 | 400 |
24 | IE3-355L-4 | 315 | 1490 | 526 | 96 | 0.9 | 2 | 7.1 | 2.2 | 95 | 400 |
Performance comparison chart:
ELECTRIC MMOTOR EFFICIENCY VALUES-2POLES 3000 RPM | ||||
Power(kw) | eff2 (nominal) | eff1(nominal) | IE2 (nominal) | IE3 (nominal) |
0.75 | - | - | 77.4 | 80.7 |
1.1 | 76.2 | 82.8 | 79.6 | 82.7 |
1.5 | 78.5 | 84.1 | 81.3 | 84.2 |
2.2 | 81 | 85.6 | 83.2 | 85.9 |
3.0 | 82.6 | 86.7 | 84.6 | 97.1 |
4.0 | 84.2 | 87.6 | 85.8 | 88.1 |
5.5 | 85.7 | 88.6 | 87.0 | 89.2 |
7.5 | 87 | 89.5 | 88.1 | 90.1 |
11 | 88.4 | 90.5 | 89.4 | 91.2 |
15 | 89.4 | 91.3 | 90.3 | 91.9 |
18.5 | 90 | 91.8 | 90.9 | 92.4 |
22 | 90.5 | 92.2 | 91.3 | 92.7 |
30 | 91.4 | 92.9 | 92.0 | 93.3 |
37 | 92 | 93.3 | 92.5 | 93.7 |
45 | 92.5 | 93.7 | 92.9 | 94.0 |
55 | 93 | 94 | 93.2 | 94.3 |
75 | 93.6 | 94.6 | 93.8 | 94.7 |
90 | 93.9 | 95 | 94.1 | 95.0 |
110 | 94.3 | 95.2 | ||
132 | 94.6 | 95.4 | ||
160 | 94.8 | 95.8 | ||
200...375 | 95 | 95.8 |
IE3 Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
IE3 Motor Our Service:
1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3. we test the material before production and three to four times when producing to ensure the goods in good quality, also we have according to request
4. we can be your OEM manufacturer with your authorization of the brand.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the B.L. copy or 100% L.C. at sight.
