DB Series Electric Peripheral Electric Pump , High Pressure Pumps Brass Impeller

China DB Series Electric Peripheral Electric Pump , High Pressure Pumps Brass Impeller supplier

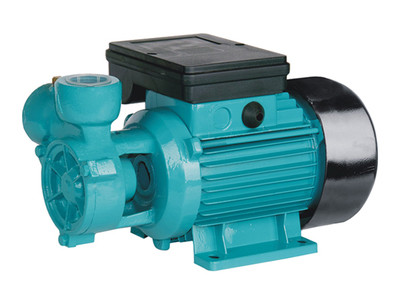

Large Image :  DB Series Electric Peripheral Electric Pump , High Pressure Pumps Brass Impeller

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: DB-125

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:295x165x175mm/pc, N.W.: 5.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Item: Peripheral Pump Usage: Water
Power: 1/3HP /0.25KW Flow Max: 32L/Min
Head Max: 32M Impeller: Brass Impeller
Feature: High Pressure Frequency: 50 HZ

 DB Series Electric Peripheral Electric Pump , High Pressure Pumps Brass Impeller





DB series peripheral pumps are mainly used to transfer clean water or other liquid which is similar with water character. It is suitable for domestic water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.



Model NO DB-125
Type Peripheral Pump Start Up Electric Pump
Theory Peripheral Pump Application Clean Water
Motor Housing Aluminum Impeller Brass
Insulation Class Class B/F Shaft 45#Stell/Stainless Steel
Duty Continuously Rated Protection Class IP44/IP54
Pump Body Cast Iron Mechanical Seal Ceramic Steatite/Metalized Carbon
Transport Package Carton Case Trademark Antelope brand ,OEM
Origin Fuan,Fujian,China Specification ISO.CE



DB Series Electric Peripheral Electric Pump , High Pressure Pumps Brass Impeller



DB Series Electric Peripheral Electric Pump , High Pressure Pumps Brass Impeller





APPLICATION

Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurity.



OPERATING LIMITS

*Maximum operating pressure:8bar.

*Maximum ambient temperature +40ºC.

*Liquid temperature up to +90ºC.

*Maximum altitude +1000m.



CONSTRUCTION FEATURES

*Pump Body:Cast Iron

*Impeller:Brass

*Motor:Closed,externally,ventilated

*Insulation Class:B(Class F if required)

*Protection Class:IP44/IP54

*Duty:Continuously rated

*Mechanical Seal:Φ12 ceramic steatite/graphite

*Shaft:Carbon steel AISI1045

(Stainless steel AISI420 if required)

*Thermal protector(if required)





The normal power stadard is 220V 50Hz single phase.

Three phase 220/380V/50Hz,220/440V/60Hz,

Single phase 230V,240V,127V,110V,115V/60Hz models are available on request.






DB Series Electric Peripheral Electric Pump , High Pressure Pumps Brass Impeller





Warranty:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.


Our Service:

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.




FAQ:


1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
