High Pressure Micro Vortex Pump , Domestic Water Pump 50L/ Min Flow Max 50 HZ

Place of Origin China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number PM-60
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons , overall size:295x165x175mm/pc, N.W.: 5.5kgs
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Peripheral Water Pump Usage Water
Power 1HP /0.75KW Flow Max 50L/Min
Head Max 60M Impeller Brass Impeller
Feature High Pressure Frequency 50 HZ
High Light

peripheral impeller pump

,

domestic water pump

Leave a Message
Product Description

 High-Pressure Micro Vortex Pump, Domestic Water Pump 50L/ Min Flow Max 50 HZ

Peripheral Water Pump


Electric Vortex peripheral Water Pump Domestic Water Pump



Model NO PM-60
Type Peripheral Pump Start-Up Electric Pump
Theory Peripheral Pump Application Clean Water
Motor Housing Aluminum Impeller Brass
Insulation Class Class B/F Shaft 45#Stell/Stainless Steel
Duty Continuously Rated Protection Class IP44/IP54
Pump Body Cast Iron Mechanical Seal Ceramic Steatite/Metalized Carbon
Transport Package Carton Case Trademark Antelope brand, OEM
Origin Fuan, Fujian, China Specification ISO.CE

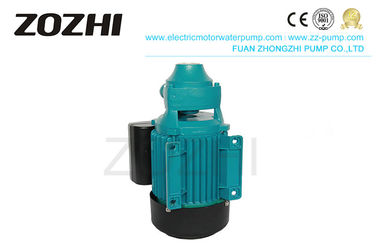

High Pressure Micro Vortex Pump , Domestic Water Pump 50L/ Min Flow Max 50 HZ 0



APPLICATION

The vortex peripheral water pump is with peripheral impeller containing numerous radial blades on its edge. Water is thrown outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generate, high pressure. These pumps have a compact size and are very economical. They have various appearances and motor shells to the different operating requirements.



OPERATING LIMITS

*Maximum operating pressure:8bar.

*Maximum ambient temperature +40ºC.

*Liquid temperature up to +90ºC.

*Maximum altitude +1000m.



CONSTRUCTION FEATURES

*Pump Body: Cast Iron

*Impeller: Brass

*Motor:Closed,externally,ventilated

*Insulation Class: B(Class F if required)

*Protection Class: IP44/IP54

*Duty: Continuously rated

*Mechanical Seal:Φ12 ceramic steatite/graphite

*Shaft: Carbon steel AISI1045

(Stainless steel AISI420 if required)

*Thermal protector(if required)





The normal power standard is 220V 50Hz single phase.

Three-phase 220/380V/50Hz,220/440V/60Hz,

Single phase 230V,240V,127V,110V,115V/60Hz models are available on request.

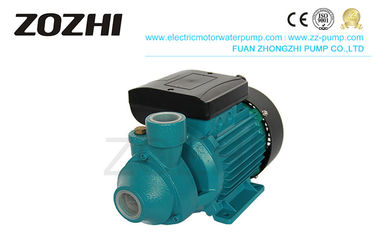

High Pressure Micro Vortex Pump , Domestic Water Pump 50L/ Min Flow Max 50 HZ 1





Warranty:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except for the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


Our Service:

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



Peripheral Water Pump Guarantee:


Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.




FAQ:


1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
