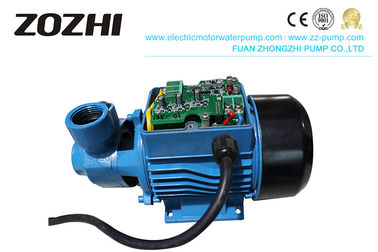

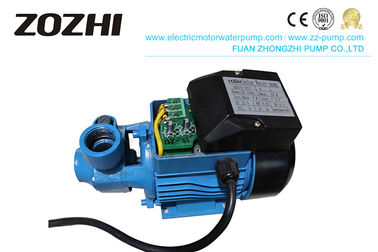

Electric Vortex Peripheral Water Pump Brass Impeller 90 L/ Min Flow For House

Place of Origin Fujian China
Brand Name ZOZHI
Certification CE/SGS/ISO
Model Number QB-90
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons , overall size:280x145x180mm/pc, N.W.: 5.3kgs
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 30000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Vortex Water Pump Structure Single Stage Pump
Power 1.5HP / 1.1KW Flow Max 90 L/Min
Head Max 60M Suction Max 9M
Impeller Brass Speed 2850RPM
Product Name Peripheral Water Pump
High Light

peripheral impeller pump

,

domestic water pump

Leave a Message
Product Description


Electric Vortex Peripheral Water Pump Brass Impeller 90 L/ Min Flow For House



PERIPHERAL PUMP
Peripheral Water Pump
PUMP

Brass impeller with evenly arranged radial vanes

Antirust copper inserts prevent impeller's block when starting after the pump is unused for a long time.

Max. Liquid temperature: +35ºC

Max. Suction: 9m

Cast iron pump body and support



MOTOR

Motor with copper winding

Shaft: stainless steel welded with 45#/45# steel be electroplated

Max.Ambient temperature:+40ºC

Cooling: External ventilation



Model NO QB90
Type Peripheral Pump Start-Up Electric Pump
Theory Peripheral Pump Application Clean Water
Motor Housing Aluminum Impeller Brass
Insulation Class Class B/F Shaft 45#Stell/Stainless Steel
Duty Continuously Rated Protection Class IP44/IP54
Pump Body Cast Iron Mechanical Seal Ceramic Steatite/Metalized Carbon
Transport Package Carton Case Trademark Antelope brand, OEM
Origin Fuan, Fujian, China Specification ISO.CE









Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 1.6 2850 35 35 9 1"x1" 280x145x180 5.3
QB70 0.75 / 0.55 3.6 2850 45 50 9 1"x1" 330x180x220 9.5
QB80 1 / 0.75 4.8 2850 50 55 9 1½ "x1½" 330x180x220 10
QB90 1.5 / 1.1 6.2 2850 90 60 9 1½ "x1½" 425x200x220 22



 Electric Vortex Peripheral Water Pump Brass Impeller 90 L/ Min Flow For House 0


TECHNICAL DATA

Other voltages and frequencies available on request


Electric Vortex Peripheral Water Pump Brass Impeller 90 L/ Min Flow For House 1





Peripheral Water Pump GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually, we suggest express for samples. If the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
