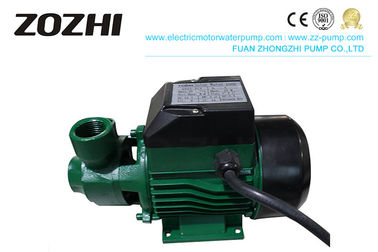

Clean Peripheral Water Pump High Vortex Pressure Single Stage 1.0HP / 0.75KW

China Clean Peripheral Water Pump High Vortex Pressure Single Stage 1.0HP / 0.75KW supplier
Clean Peripheral Water Pump High Vortex Pressure Single Stage 1.0HP / 0.75KW supplier

Large Image :  Clean Peripheral Water Pump High Vortex Pressure Single Stage 1.0HP / 0.75KW

Product Details:

Place of Origin: Fujian China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB-80

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:280x145x180mm/pc, N.W.: 5.3kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Theory: Vortex Water Pump Structure: Single Stage Pump
Power: 1.0HP /0.75KW Flow Max: 35 L/Min
Head Max: 55M Suction Max: 9M
Impeller: Brass Speed: 2850RPM



Clean Water Pump of Peripheral Pump,high pressure Vortex Pressure Pump


PERIPHERAL PUMP


QB VORTEX PUMP
ModelQB-80
Power1.0KW / 0.75HP
Max flow50 L/MIN
Max head55M
Outlet25MM
Gross.weight11KGS
Rotor length50 MM
Packing size33*18*22 CM
WarrantyOne year
MATERIALS
Pump bodyCast Iron
Motor bodyAluminum
Shaft# 45 Steel
ImpellerBrass
mechanical seal

mechanical seal






Clean Peripheral Water Pump High Vortex Pressure Single Stage 1.0HP / 0.75KW

Zhongzhi vortex peripheral pump are qualified in domestic fittings, to increase the distribution by small autoclave tanks or by hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurity. QB series are suitable for domestic applications, such as supply water from well, pool etc. It is also suitable for water pressure boosting gardening and automatic Water supplying system if composed with other appliances.




TECHNICAL DATA

ModelOutputAR.P.M.Q.MaxH.MaxS.HeadPipe DiaLxWxHN.W.
HP / KW1~220V(l/min)(m)(M)(mm)(Kg)
QB600.5 / 0.371.62850353591"x1"280x145x1805.3
QB700.75 / 0.553.62850455091"x1"330x180x2209.5
QB801 / 0.754.82850505591½ "x1½"330x180x22010
QB901.5 / 1.16.22850906091½ "x1½"425x200x22022

Other voltages and frequencies available on request


Clean Peripheral Water Pump High Vortex Pressure Single Stage 1.0HP / 0.75KW



STRUCTURAL CHARACTERISTICS


Main SpecificationStandardOptional
Transmission mediumClean Water
Pump bodyCast Iron
ImpellerBrass
Motor housingAluminum
Stator&Rotor1.Cold -rolled silicon steel sheet by high speed punching machine. 2. 100% high quality copper wire
Front coverCast IronBrass plate embedded to avoid impeller jam
BearingChinese Best Quality BearingNSK,SKF or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.



OUR SERVICE

1. Directly factory sale
2. Quick response TO 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
