|Theory:||Vortex Water Pump||Structure:||Single Stage Pump|
|Power:||0.75HP / 0.55KW||Flow Max:||45 L/Min|
|Head Max:||50M||Suction Max:||9M|

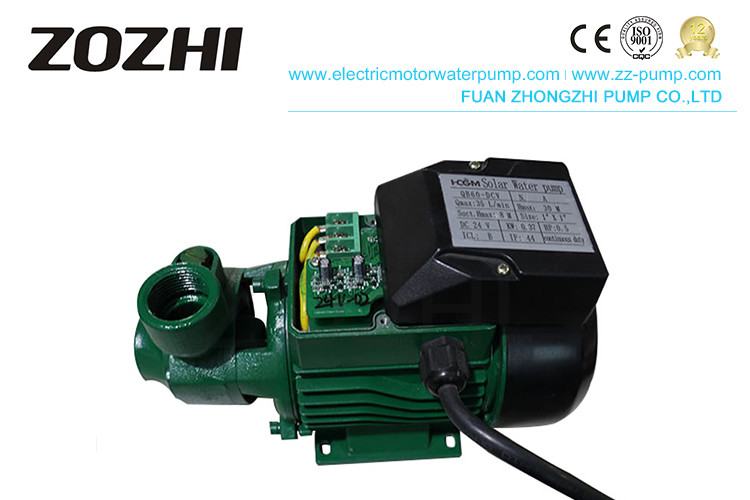

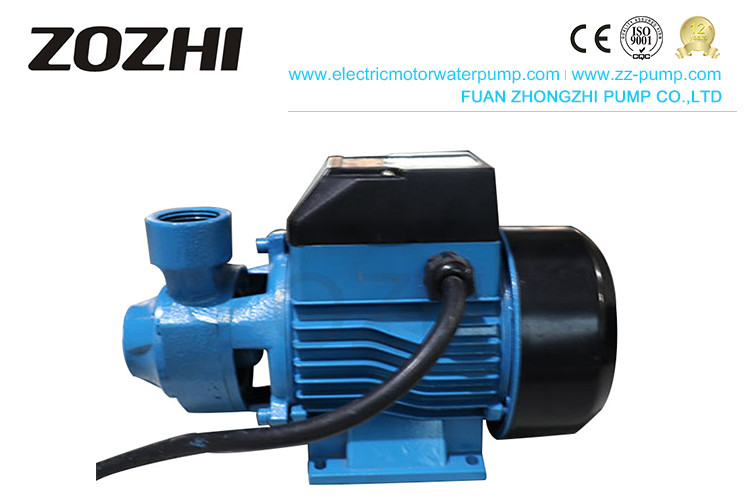

QB Series Peripheral Water Pump Vortex Impeller Water Pump
Zhongzhi vortex peripheral pump are qualified in domestic fittings, to increase the distribution by small autoclave tanks or by hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurity. QB series are suitable for domestic applications, such as supply water from well, pool etc. It is also suitable for water pressure boosting gardening and automatic Water supplying system if composed with other appliances.
|Type||Peripheral Pump||Start Up||Electric Pump|
|Theory||Peripheral Pump||Application||Clean Water|
|Insulation Class||Class B/F||Shaft||45#Stell/Stainless Steel|
|Duty||Continuously Rated||Protection Class||IP44/IP54|
|Pump Body||Cast Iron||Mechanical Seal||Ceramic Steatite/Metalized Carbon|
|Transport Package||Carton Case||Trademark||Antelope brand ,OEM|
|HP / KW||1~220V||(l/min)||(m)||(M)||(mm)||(Kg)|
|QB60||0.5 / 0.37||1.6||2850||35||35||9||1"x1"||280x145x180||5.3|
|QB70||0.75 / 0.55||3.6||2850||45||50||9||1"x1"||330x180x220||9.5|
|QB80||1 / 0.75||4.8||2850||50||55||9||1½ "x1½"||330x180x220||10|
|QB90||1.5 / 1.1||6.2||2850||90||60||9||1½ "x1½"||425x200x220||22|
Other voltages and frequencies available on request
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
